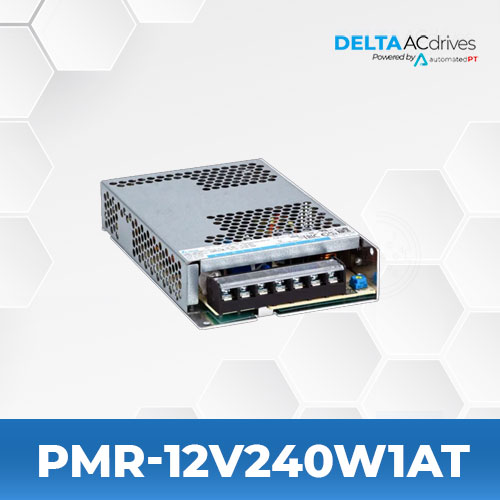

Delta PMR-12V240W1AT PMR Series

  • PMR Series
  • Phase: 1
  • Output Voltage: 12 V
  • Output Power: 240 W

PRODUCT SPECIFICATIONS

Model Name PMR-12V240W1AT
Phase 1
Output Voltage Range 12 V
Output Power 240 W
Dimensions (H x W x D) 6.26 in x 3.82 in x 1.18 in
Unit Weight 0.99 lbs

FILES

Catalog Delta Panel Mount Power Supply Catalog

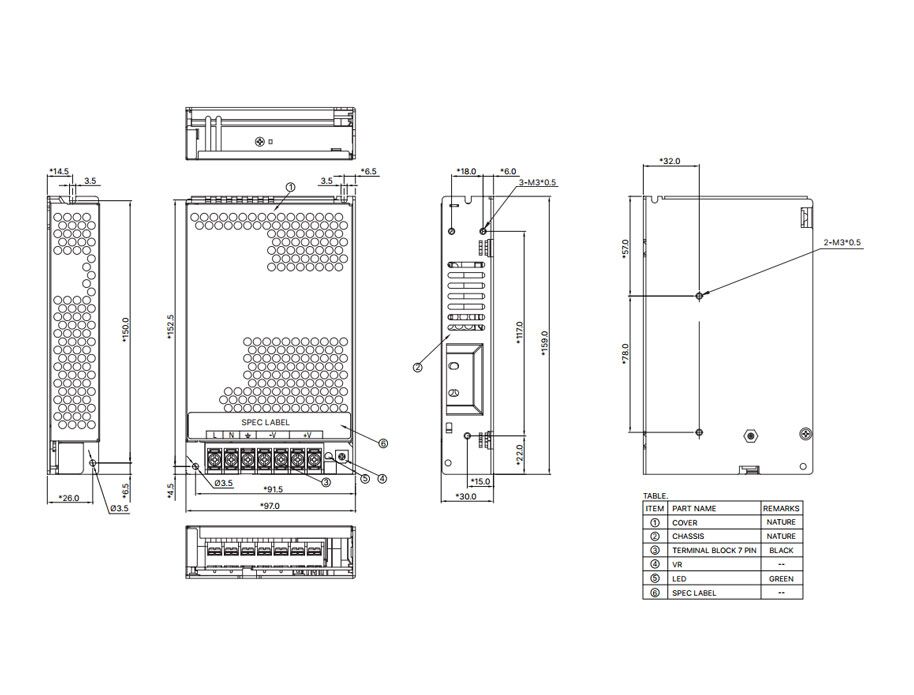

Dimensions Delta PMR-12V240W1AT Dimensions
Data Sheet Delta PMR-12V240W1AT Datasheet
2D CAD Delta PMR-12V240W1AT 2D CAD
3D CAD Delta PMR-12V240W1AT 3D CAD  |  (View 3D File)
UL Certificate Delta PMR-12V240W1AT Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta range of panel mount power supplies for different needs. The PMR Series offers Built-in active PFC with 1U low profile with a Power Range: 252-321.6 W.

Features
• Built-in active PFC circuit
• No load power consumption < 0.5 W
• 30 mm height low profile design
• IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards
• Wide operating temperature -30°C ~70°C (-40°C cold start)
