Delta PMR-12V600W1BT PMR Series
- PMR Series
- Phase: 1
- Output Voltage: 12 V
- Output Power: 600 W
PRODUCT SPECIFICATIONS
| Model Name | PMR-12V600W1BT |
| Phase | 1 |
| Output Voltage Range | 12 V |
| Output Power | 600 W |
| Dimensions (H x W x D) | 8.86 in x 4.88 in x 1.61 in |
| Unit Weight | 2.65 lbs |
FILES
| Catalog | Delta Panel Mount Power Supply Catalog |

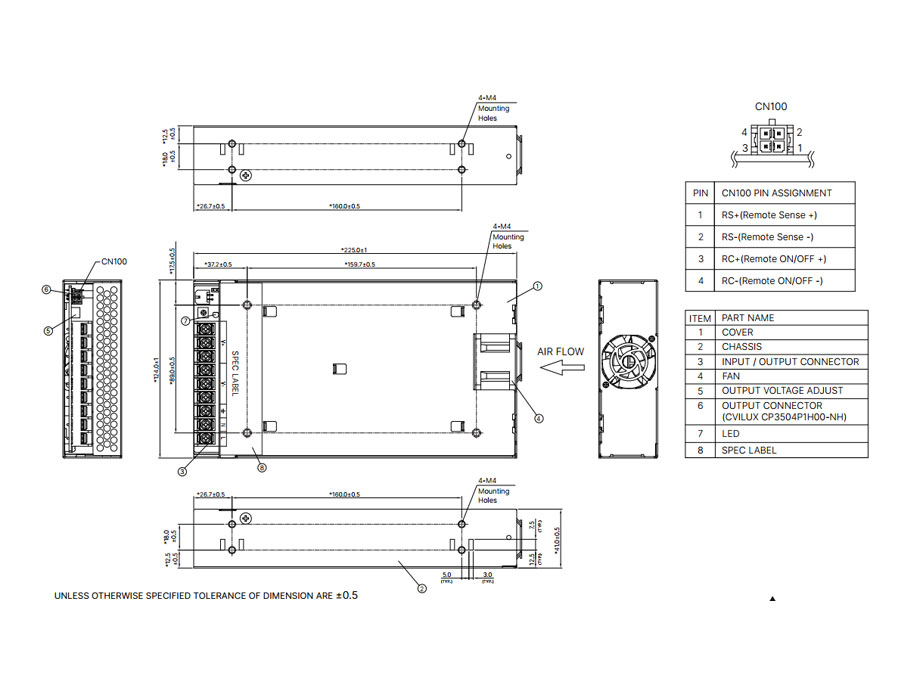

| Dimensions | Delta PMR-12V600W1BT Dimensions |
| Data Sheet | Delta PMR-12V600W1BT Datasheet |
| 2D CAD | Delta PMR-12V600W1BT 2D CAD |
| 3D CAD | Delta PMR-12V600W1BT 3D CAD | (View 3D File) |
| UL Certificate | Delta PMR-12V600W1BT Certificate |
SOFTWARE
Register and download the DIA Studio to use DIA Designer to program and configure your drives.
Know More
SERIES DESCRIPTION
Delta range of panel mount power supplies for different needs. The PMR Series offers Built-in active PFC with 1U low profile with a Power Range: 252-321.6 W.
Features
• Built-in active PFC circuit
• No load power consumption < 0.5 W
• 30 mm height low profile design
• IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards
• Wide operating temperature -30°C ~70°C (-40°C cold start)
