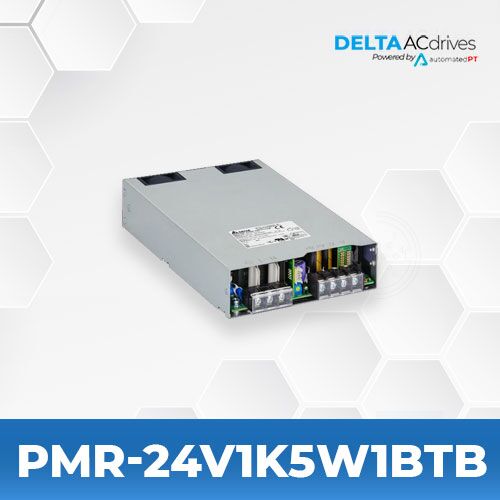

Delta PMR-24V1K5W1BTB PMR Series
- PMR Series
- Phase: 1
- Output Voltage: 24 V
- Output Power: 1500 W
PRODUCT SPECIFICATIONS
| Model Name | PMR-24V1K5W1BTB |
| Phase | 1 |
| Output Voltage Range | 24 V |
| Output Power | 1500 W |
| Dimensions (H x W x D) | 8.03 in x 5 in x 1.59 in |
| Unit Weight | 3.31 lbs |
FILES
| Catalog | Delta Panel Mount Power Supply Catalog |

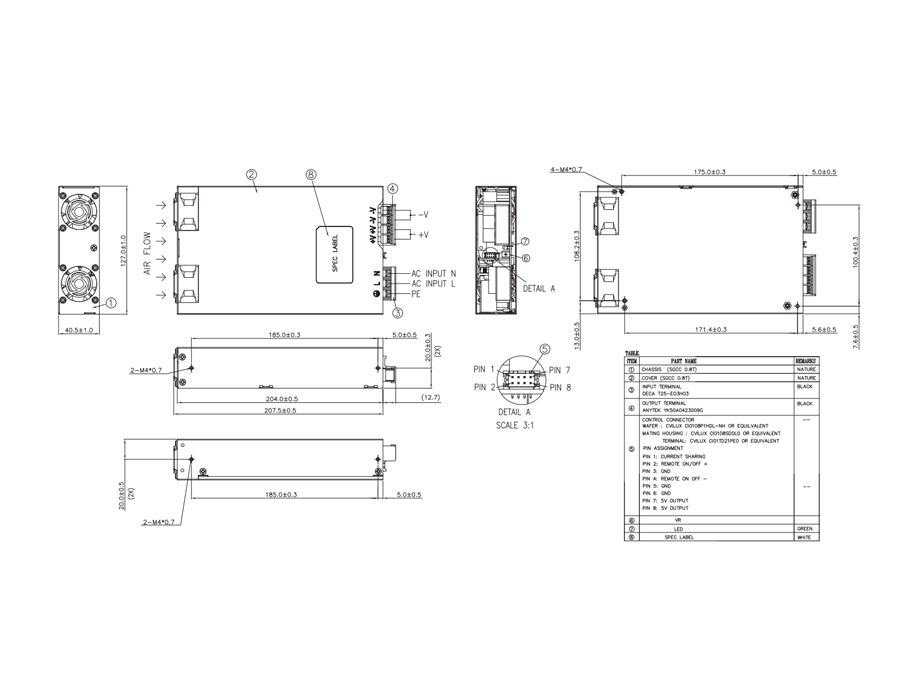

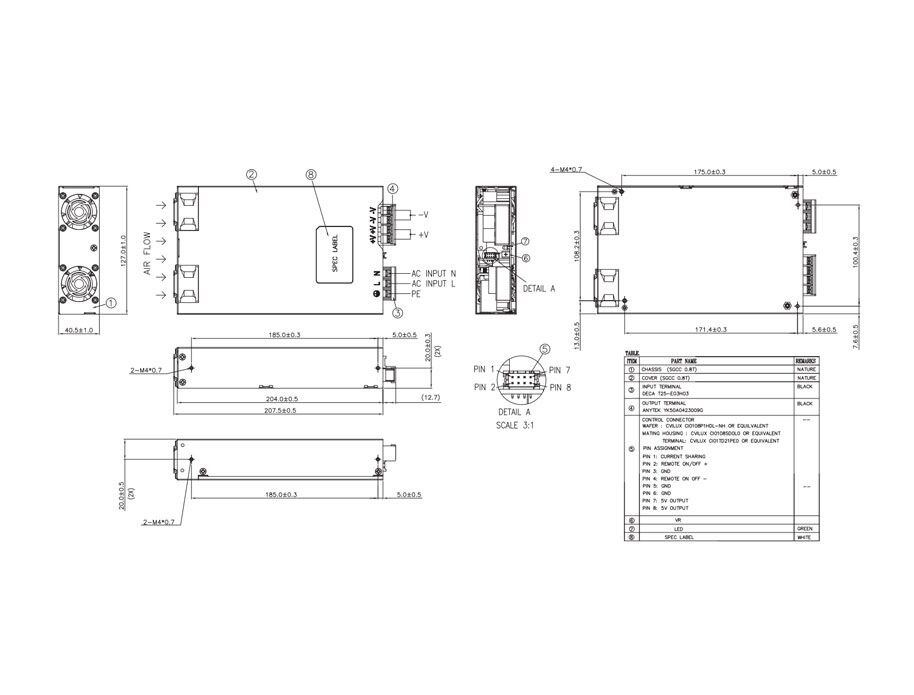

| Dimensions | Delta PMR-24V1K5W1BTB Dimensions |
| Data Sheet | Delta PMR-24V1K5W1BTB Datasheet |
| 2D CAD | Delta PMR-24V1K5W1BTB 2D CAD |
| 3D CAD | Delta PMR-24V1K5W1BTB 3D CAD | (View 3D File) |
| UL Certificate | Delta PMR-24V1K5W1BTB Certificate |
SOFTWARE
Register and download the DIA Studio to use DIA Designer to program and configure your drives.
Know More
SERIES DESCRIPTION
Delta range of panel mount power supplies for different needs. The PMR Series offers Built-in active PFC with 1U low profile with a Power Range: 252-321.6 W.
Features
• Built-in active PFC circuit
• No load power consumption < 0.5 W
• 30 mm height low profile design
• IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards
• Wide operating temperature -30°C ~70°C (-40°C cold start)
