Delta PMR-36V150W1AT PMR Series

  • PMR Series
  • Phase: 1
  • Output Voltage: 36 V
  • Output Power: 150 W

PRODUCT SPECIFICATIONS

Model Name PMR-36V150W1AT
Phase 1
Output Voltage Range 36 V
Output Power 150 W
Dimensions (H x W x D) 5.08 in x 3.82 in x 1.18 in
Unit Weight 0.77 lbs

FILES

Catalog Delta Panel Mount Power Supply Catalog

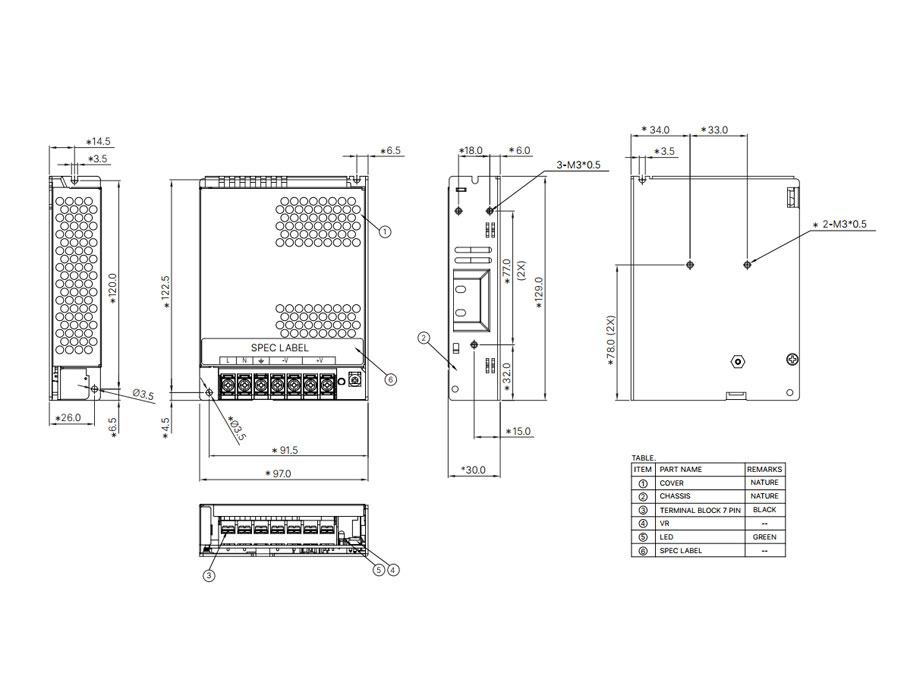

Dimensions Delta PMR-36V150W1AT Dimensions
Data Sheet Delta PMR-36V150W1AT Datasheet
2D CAD Delta PMR-36V150W1AT 2D CAD
3D CAD Delta PMR-36V150W1AT 3D CAD  |  (View 3D File)

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta range of panel mount power supplies for different needs. The PMR Series offers Built-in active PFC with 1U low profile with a Power Range: 252-321.6 W.

Features
• Built-in active PFC circuit
• No load power consumption < 0.5 W
• 30 mm height low profile design
• IEC/EN 60335-1, IEC/EN 61558-1, and IEC/EN 61558-2-16 household appliance standards
• Wide operating temperature -30°C ~70°C (-40°C cold start)
