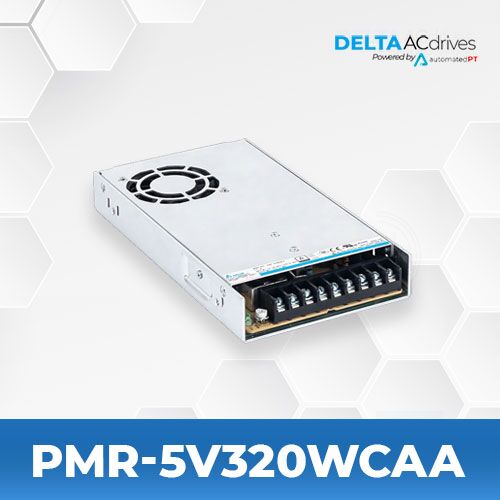

Delta PMR-5V320WCAA PMR Series

  • PMR Series
  • Phase: 1
  • Output Voltage: 5 V
  • Output Power: 300 W

PRODUCT SPECIFICATIONS

Model Name PMR-5V320WCAA
Phase 1
Output Voltage Range 5 V
Output Power 300 W
Dimensions (H x W x D) 8.46 in x 4.53 in x 1.18 in
Unit Weight 1.68 lbs

FILES

Catalog Delta Panel Mount Power Supply Catalog

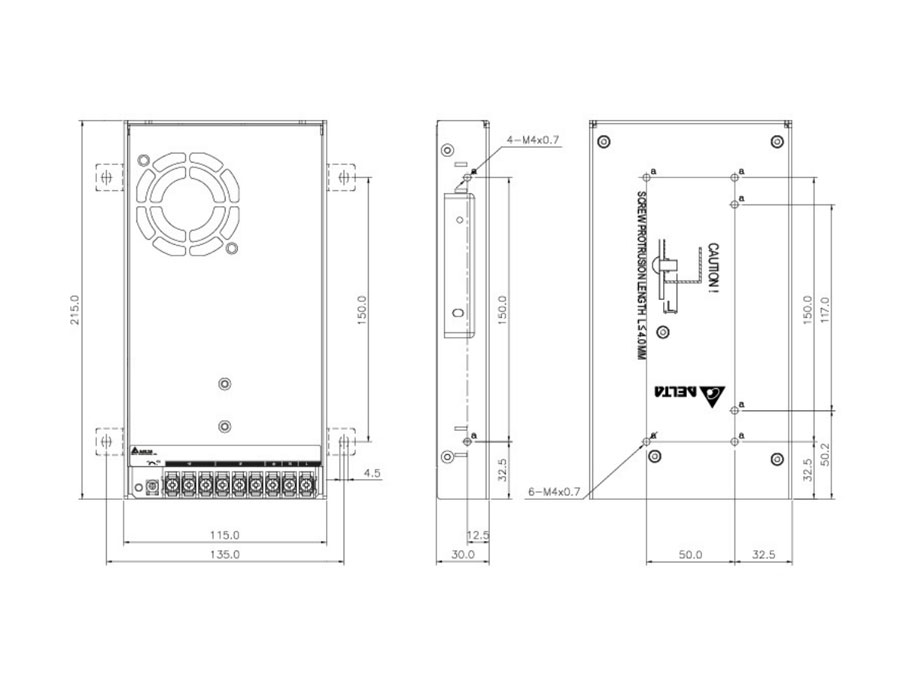

Dimensions Delta PMR-5V320WCAA Dimensions
Data Sheet Delta PMR-5V320WCAA Datasheet
2D CAD Delta PMR-5V320WCAA 2D CAD
3D CAD Delta PMR-5V320WCAA 3D CAD  |  (View 3D File)
UL Certificate Delta PMR-5V320WCAA Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

Delta range of panel mount power supplies for different needs. The PMR Series offers Built-in active PFC with 1U low profile with a Power Range: 252-321.6 W.

Features
• Full corrosion resistant aluminium casing
• Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
• Low profile design for 1U installation
• Built-in DC OK relay contact and redundancy operation (PMR-V320WDBA and PMR-V320WDCA)
