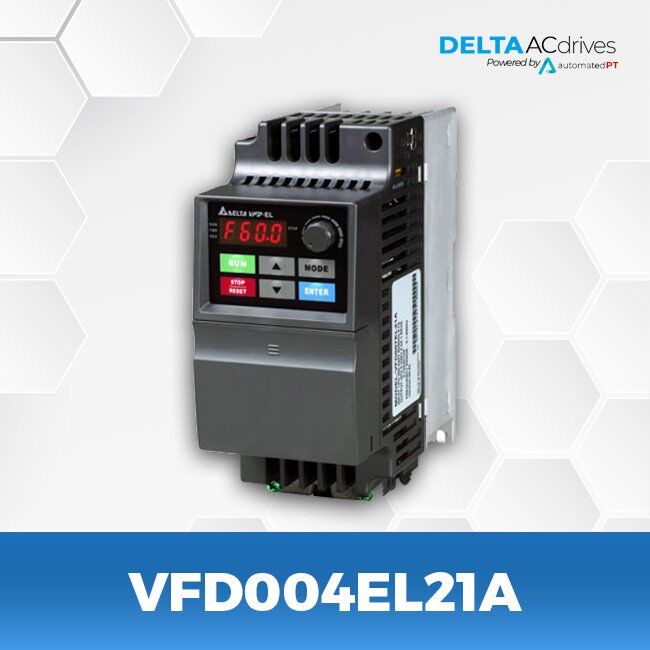

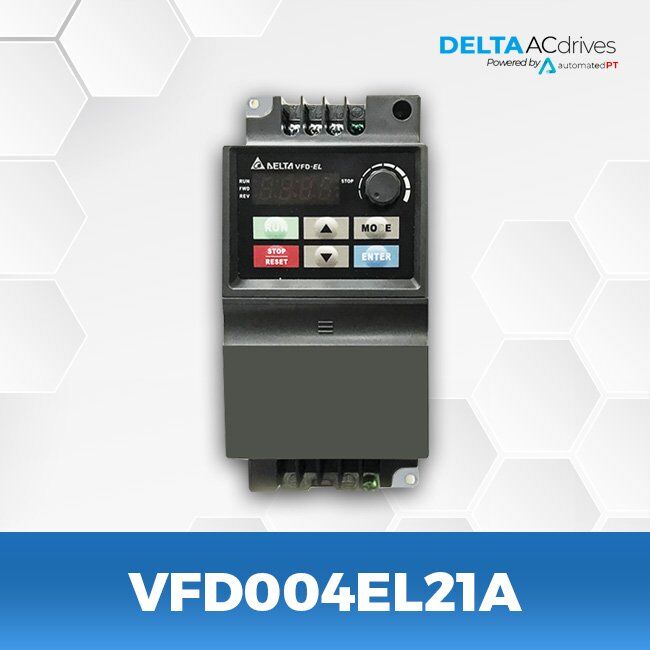

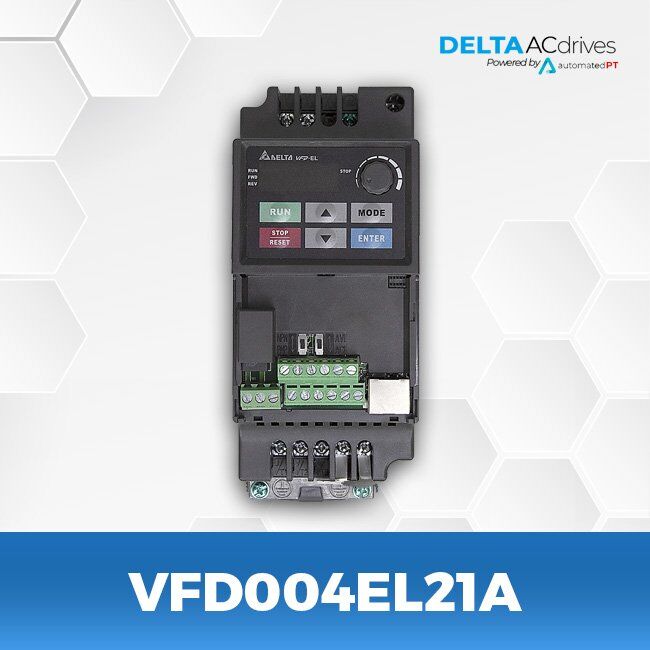

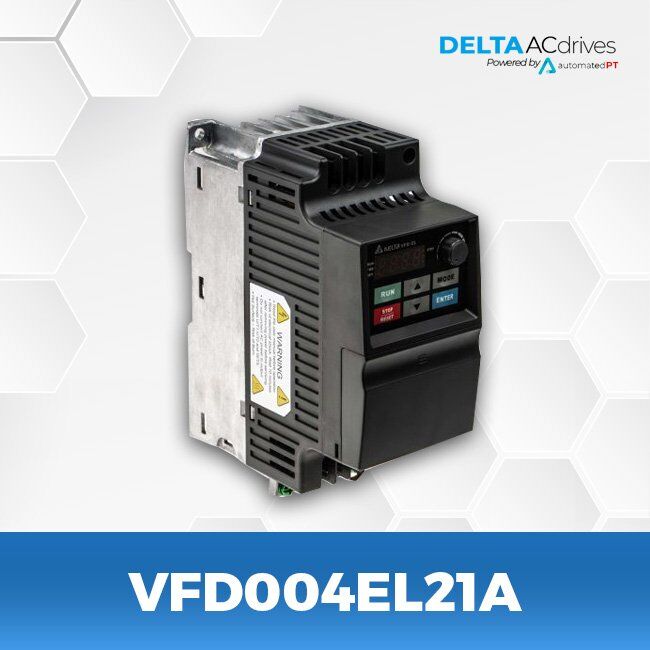

Delta VFD004EL21A VFD-EL Series Drive

$254.00

  • Series: VFD-EL
  • 0.5 HP
  • 0.375 KW
  • 230 V
  • 2.5 A
  • Input: 1 PH


The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.

Delta VFD004EL21A – Multiple Functions – Micro Type Drives

Delta Products
AC Drives, VFD-EL Series

ITEM # VFD004EL21A
MFG # VFD004EL21A
Series VFD-EL

Drive, AC, 1/2Hp, 230V 1-Phase Input/ 3-Phase Output

Specifications
Item Number: VFD004EL21A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-EL
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
HP (CT): 0.5 Horsepower
Amps (CT): 2.5 Amps
Input Phase: 1
Operator Controls: Built In
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

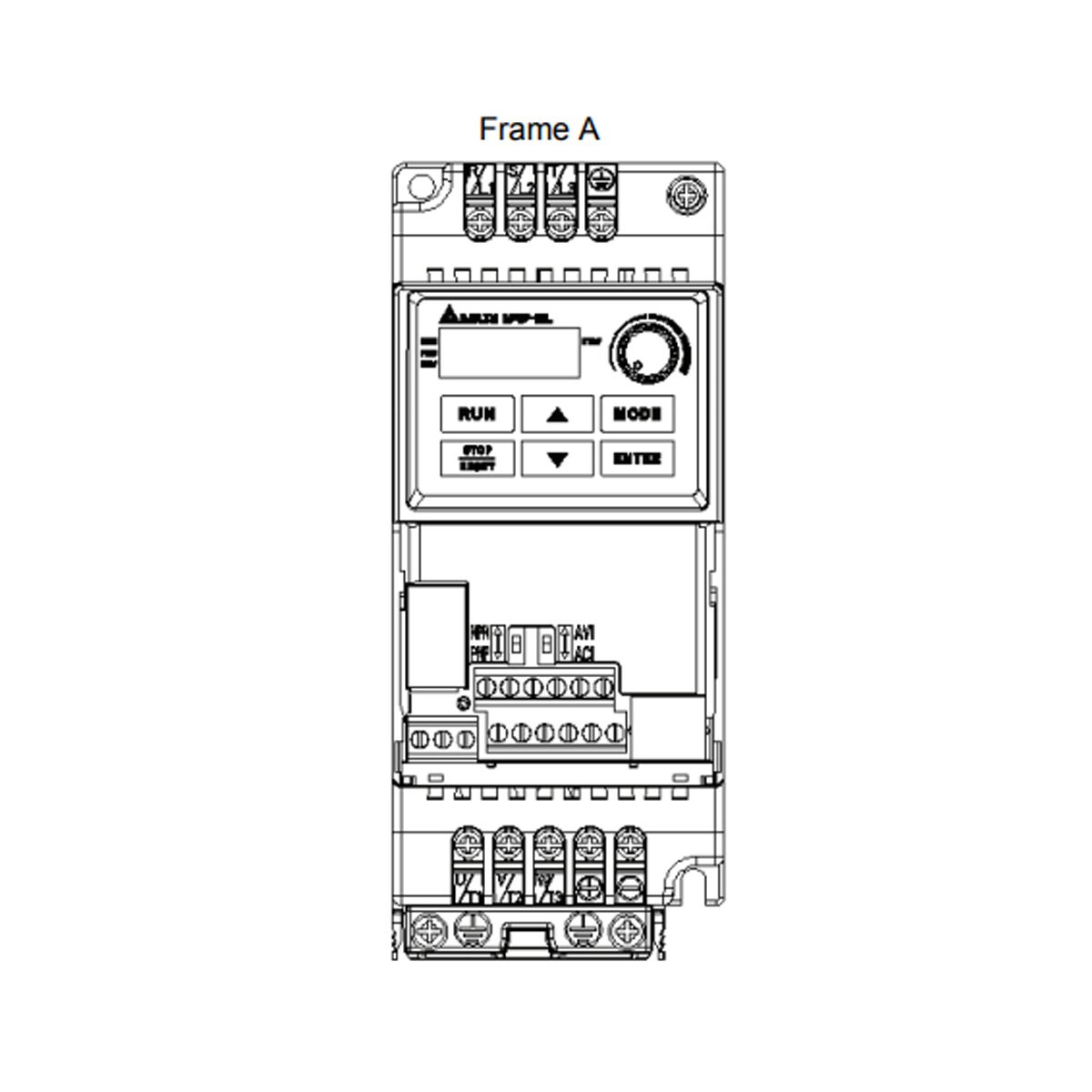

Frame Size: A
Height: 6.86 Inches
Width: 2.83 Inches
Depth: 5.36 Inches

Delta VFD-EL AC Drive Accessories

Item #
Delta CME-DN01 CME-DN1 Internal DeviceNet card
Delta CME-LW01 CME-LW01 Internal LonWorks card
Delta CME-PD01 CME-PD01 Internal ProfiBus card
Delta CME-COP01 CME-COP01 Internal CANopen card
Delta MKE-EP MKE-EP Earthing Plate
Delta MKEL-DRA MKEL-DRA Used on VFD-EL Frame A
Delta MKEL-DRB MKEL-DRB Used on VFD-EL Frame B
Delta RC-01 RC-01A Remote Start/Stop station
Delta BUE-20015 BUE-20015 Brake Unit
Delta BUE-40015 BUE-40015 Brake Unit
Delta BUE-20037 BUE-20037 Brake Unit
Delta BUE-40037 BUE-40037 Brake Unit
Delta BR200W150 Braking Resistor
Delta BR200W250 Braking Resistor
Delta BR300W100 Braking Resistor
Delta BR300W400 Braking Resistor

Click on the links below to see Drawings and Specs:

Delta VFD-EL-Catalog

Delta VFD-EL-Manual

Delta VFD-EL-B-PD02 Spec Sheet

Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
