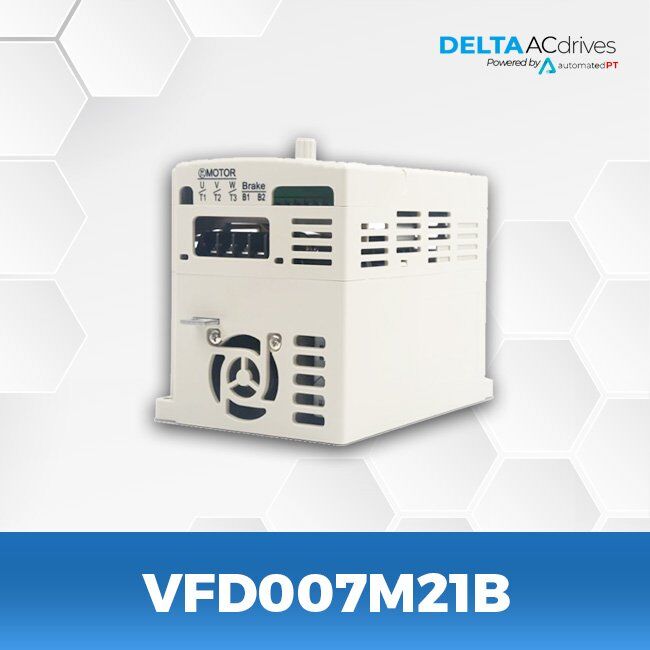

Delta VFD007M21B VFD-M Series Drive

  • Series: VFD-M
  • 1 HP
  • 0.75 KW
  • 230 V
  • 5 A
  • Input: 1/3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD4A8MS21ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


Delta no longer considers this drive to be a core product. There is limited stock or long lead times. Call 800-985-6929 to check stock.
Newer model recommended replacement drive:
Single Phase Input: VFD4A8MS21ANSAA,VFD007EL21A
Three Phase Input: VFD4A8MS23ANSAA,VFD007EL23A

Always confirm drive specifications and call 800-985-6929 if you have any questions. Note VFD4A8MS21ANSAA , VFD007EL21A , VFD4A8MS23ANSAA , and VFD007EL23A do not have the same dimensions, please verify replacement drive dimensions will fit your enclosure or mount.

Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.

Delta VFD007M21B – SVC Micro Drives

Delta Products
AC Drives, VFD-M Series

ITEM # VFD007M21B
MFG # VFD007M21B
Series VFD-M

Drive, AC, 1Hp, 230V Single Phase Input (Version B)

Specifications
Item Number: VFD007M21B
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-M
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
HP (CT): 1 Horsepower
Amps (CT): 5 Amps
Input Phase: 1
Operator Controls: Keypad Included
Max. Frequency: 400 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

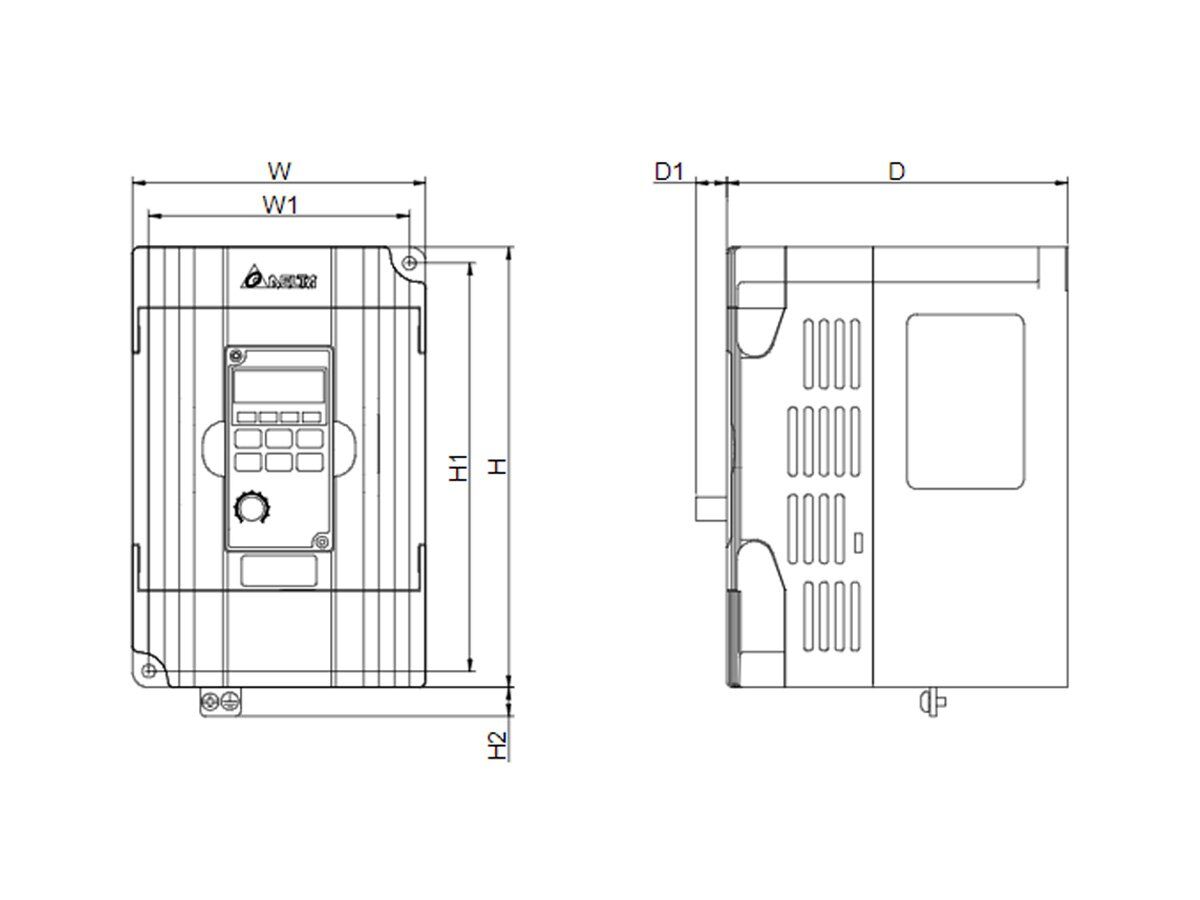

Click on the links below to see Drawings and Specs:

Delta VFD-M-Catalog

Delta VFD-M-User-Manual

Delta VFD-M-A-PD 006 Spec Sheet
