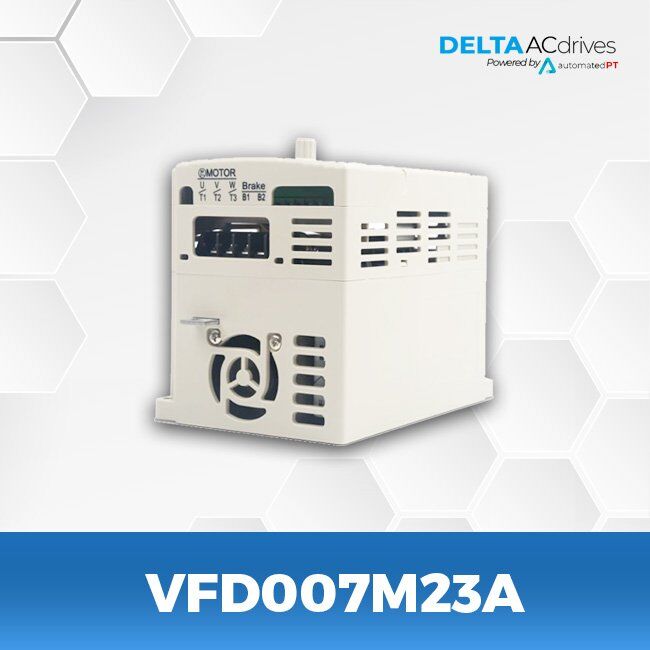

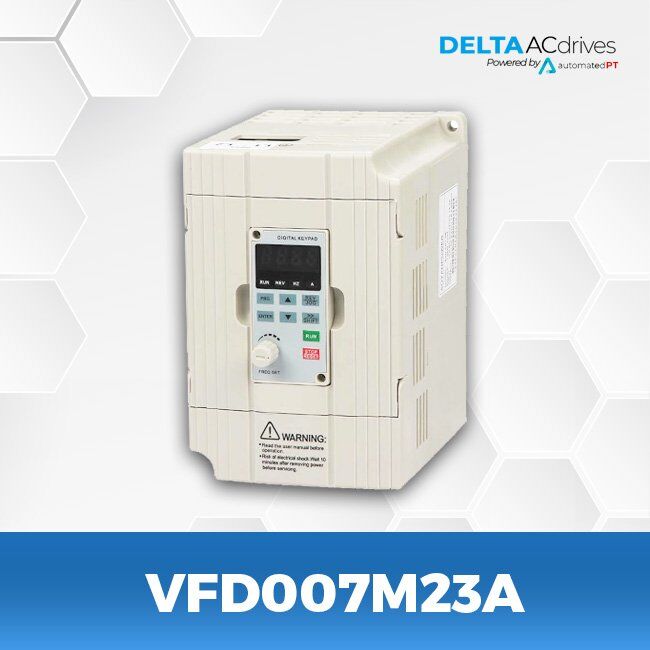

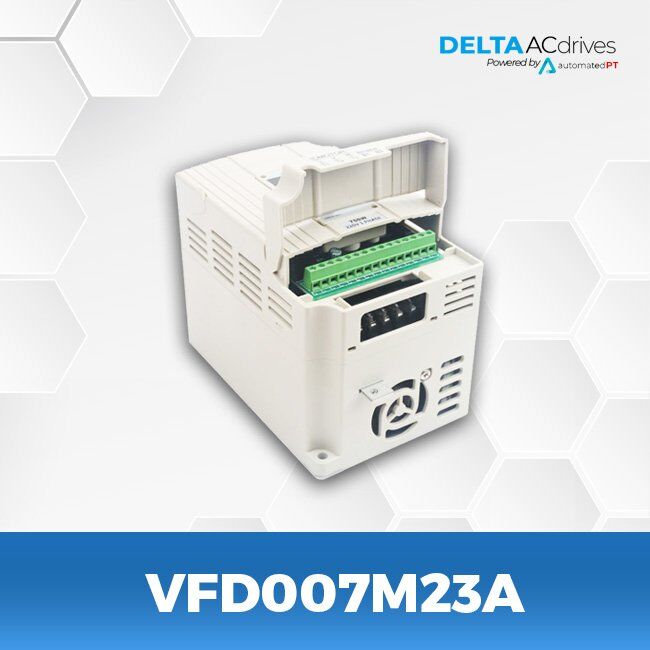

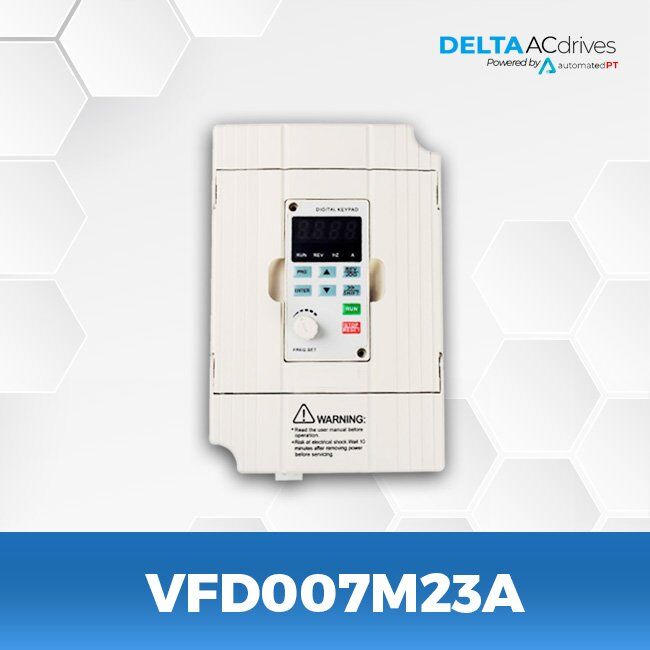

Delta VFD007M23A VFD-M Series Drive
- Series: VFD-M
- 1 HP
- 0.75 KW
- 230 V
- 5 A
- Input: 3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD4A8MS23ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.
Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
Delta VFD007M23A – SVC Micro Drives
Delta Products
Drive
ITEM # VFD007M23A
MFG # VFD007M23A
Drive, AC, 1Hp, 230V Three Phase Input (Version A)
Specifications
Item Number: VFD007M23A
Manufacturer: Delta Products
Item Category: Drive

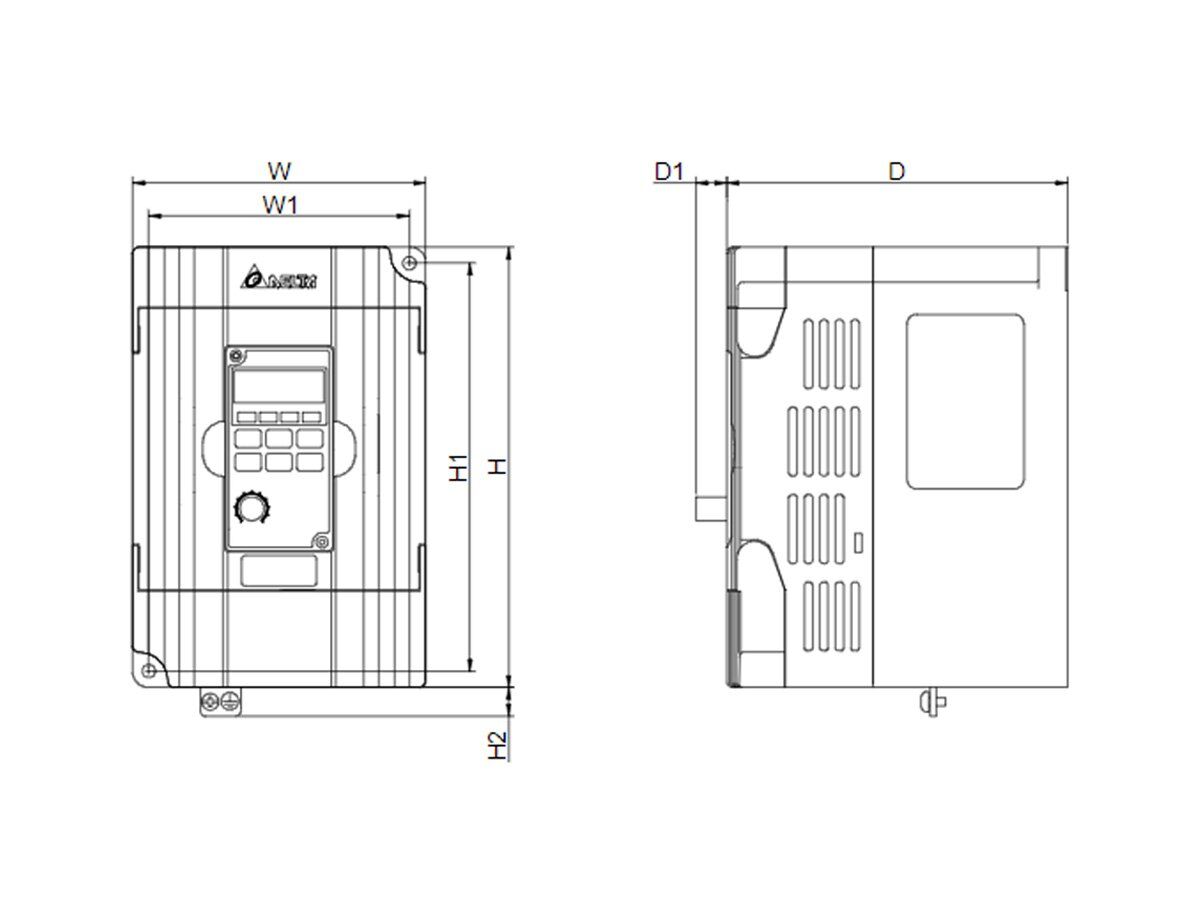

Click on the links below to see Drawings and Specs:
Delta VFD-M-A-PD 005 Spec Sheet
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
