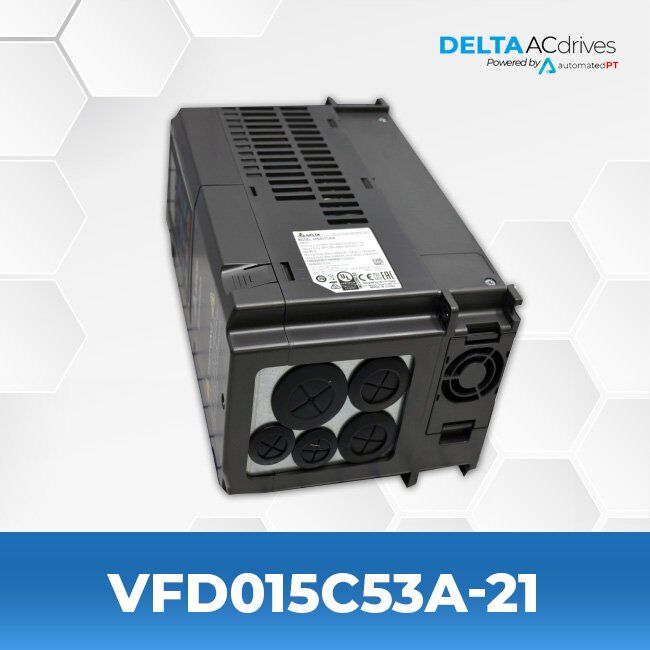

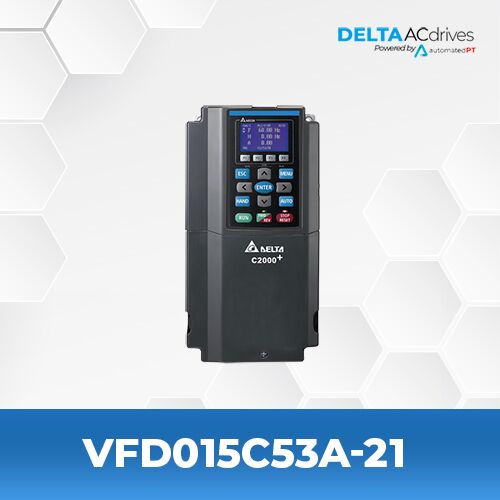

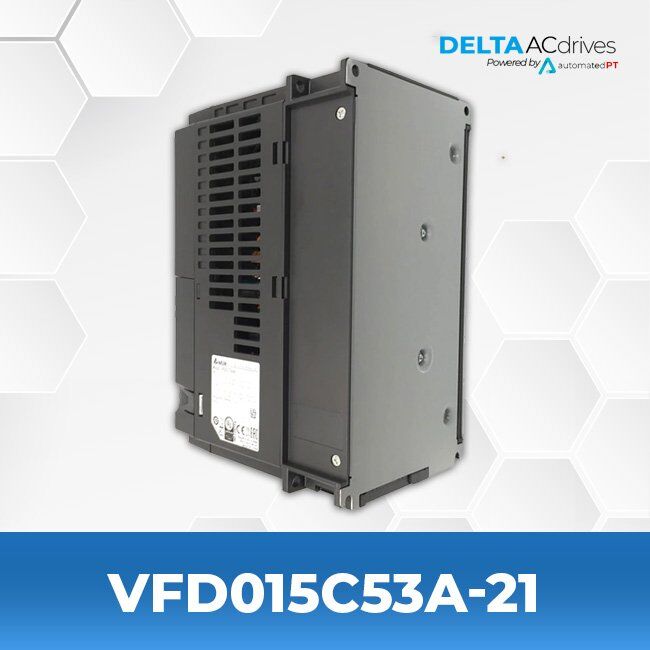

Delta VFD015C53A-21 VFD-C2000 Series Drive


  • Series: VFD-C2000
  • 1 HP
  • 1.5 KW
  • 600 V
  • 2.1 A
  • Input: 3 PH

The VFD-C2000 series is a high performance FOC (Field Oriented Control) AC drive. This drive is extremely versatile with a real built-in PLC, numerous control options, over 300 parameters, predesigned application features, and a large LCD HMI keypad. These features coupled with input voltages of 230/460vac and a HP range of 1-800 make the C2000 a product for markets around the globe.
Delta VFD015C53A-21

Delta Products
AC Drives, C2000 Series

ITEM # VFD015C53A-21
MFG # VFD015C53A-21
Series C2000

Drive, AC, 1HP, 600V, 3PH, 2.1A, CT

Item Number: VFD015C53A-21
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: C2000
Nominal Input VAC: 600 Volts AC
Input Range VAC: 525-600 Volts AC
Amps (CT): 2.1 Amps
HP (VT): 1 Horsepower
Amps (VT): 2.5 Amps
Input Phase: 3

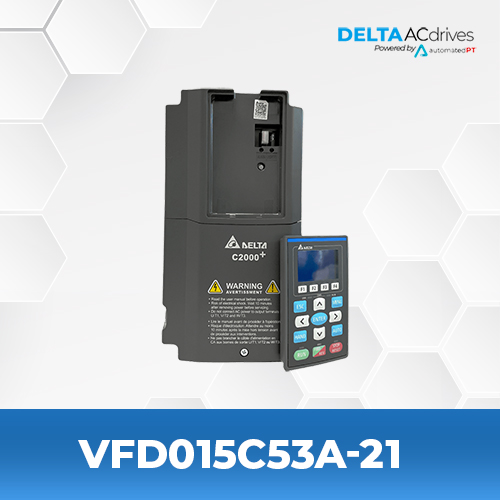

Operator Controls: Keypad Included
Braking Type: DC Injection;Dynamic Braking;AC Line Regenerative
Motor Control-Max Level: Closed Loop Vector
Closed Loop: Yes
AC Line Regenerative?: Yes
Dynamic Braking Trans?: Included

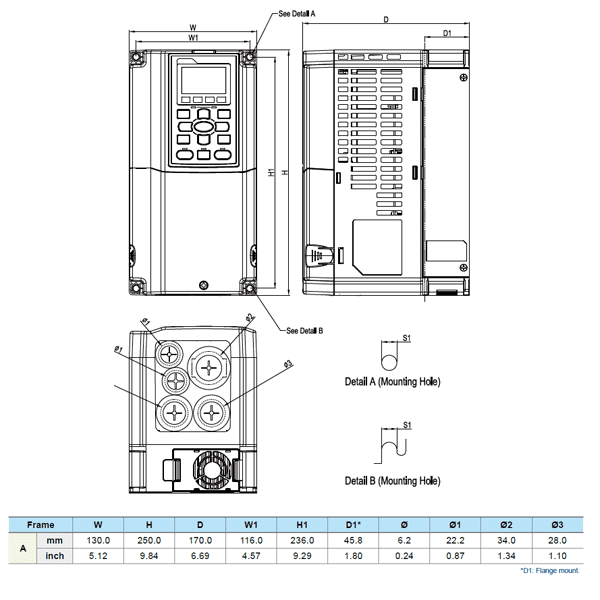

Frame Size: A
Height: 9.84 Inches
Width: 5.12 Inches
Depth: 6.69 Inches

Delta VFD C-2000 AC Drive Accessories

Item #
Delta CMC-EIP01 Ethernet/IP and MODBUS TCP Card
Delta CMC-MOD01 Modbus TCP Communication Card
Delta CMC-DN01 Ethernet/IP and MODBUS TCP Card
Delta CMC-PD01 Profibus Communication Module
Delta EMC-BPS01 EMC-BPS01 24VDC External Power Supply Card
Delta EMC-COP01 EMC-COP01 CANopen Card
Delta EMC-D42A EMC-D42A I/O Extension Card 4I/2O
Delta EMC-D611A EMC-D611A I/O CARD 110VAC 6 Input
Delta EMC-PG01L EMC-PG01L Encoder Feedback Card
Delta EMC-PG01O EMC-PG01O Encoder Feedback Card
Delta EMC-PG01R EMC-PG01R Resolver Feedback Card
Delta EMC-PG01U EMC-PG01U Encoder Feedback Card
Delta EMC-R6AA EMC-R6AA Relay Extension Card 6 Form A
Delta CMC-EC01 VFD-C2000 EtherCAT Communication Card

Click on the links below to see Drawings and Specs:

Delta C2000 VFD Panel Packages
Delta C2000 Catalog

Delta C2000 User Manual
Delta C2000 Spec Sheet

See the Delta VFD015C53A-21 page on

Purchase your Delta VFD015C53A-21 TODAY!

You Can Purchase your Delta AC Drive Panels with bypass and line reactor HERE

! Please call, or email your Specs. !

Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
