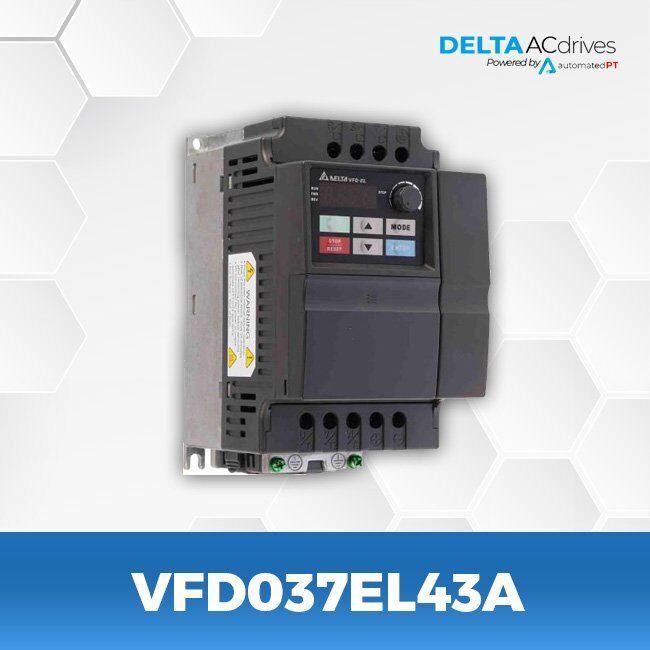

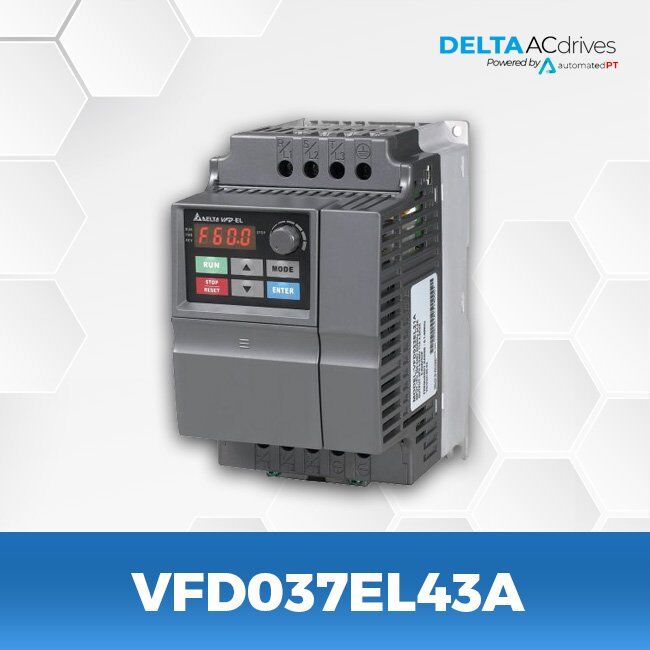

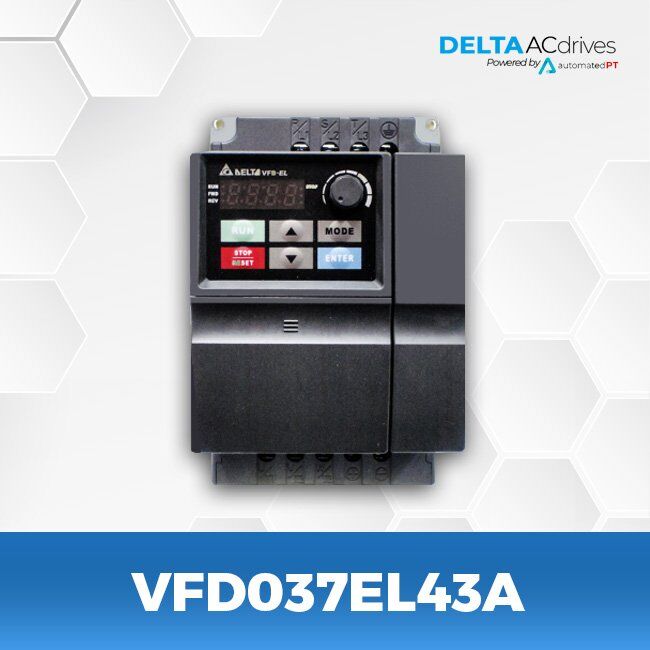

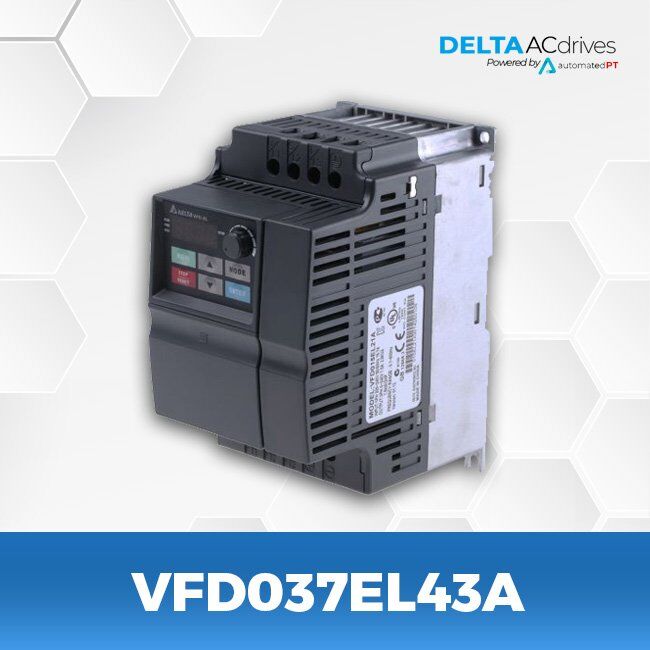

Delta VFD037EL43A VFD-EL Series Drive


  • Series: VFD-EL
  • 5 HP
  • 3.75 KW
  • 480 V
  • 8.2 A
  • Input: 3 PH

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.

Delta VFD037EL43A – Multiple Functions – Micro Type Drives

Delta Products
AC Drives, VFD-EL Series

Series VFD-EL

Drive, AC, 5HP, 460V 3-Phase Input/ 3-Phase Output

Item Number: VFD037EL43A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-EL
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 5 Horsepower
Amps (CT): 8.2 Amps
Input Phase: 3
Operator Controls: Built In
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

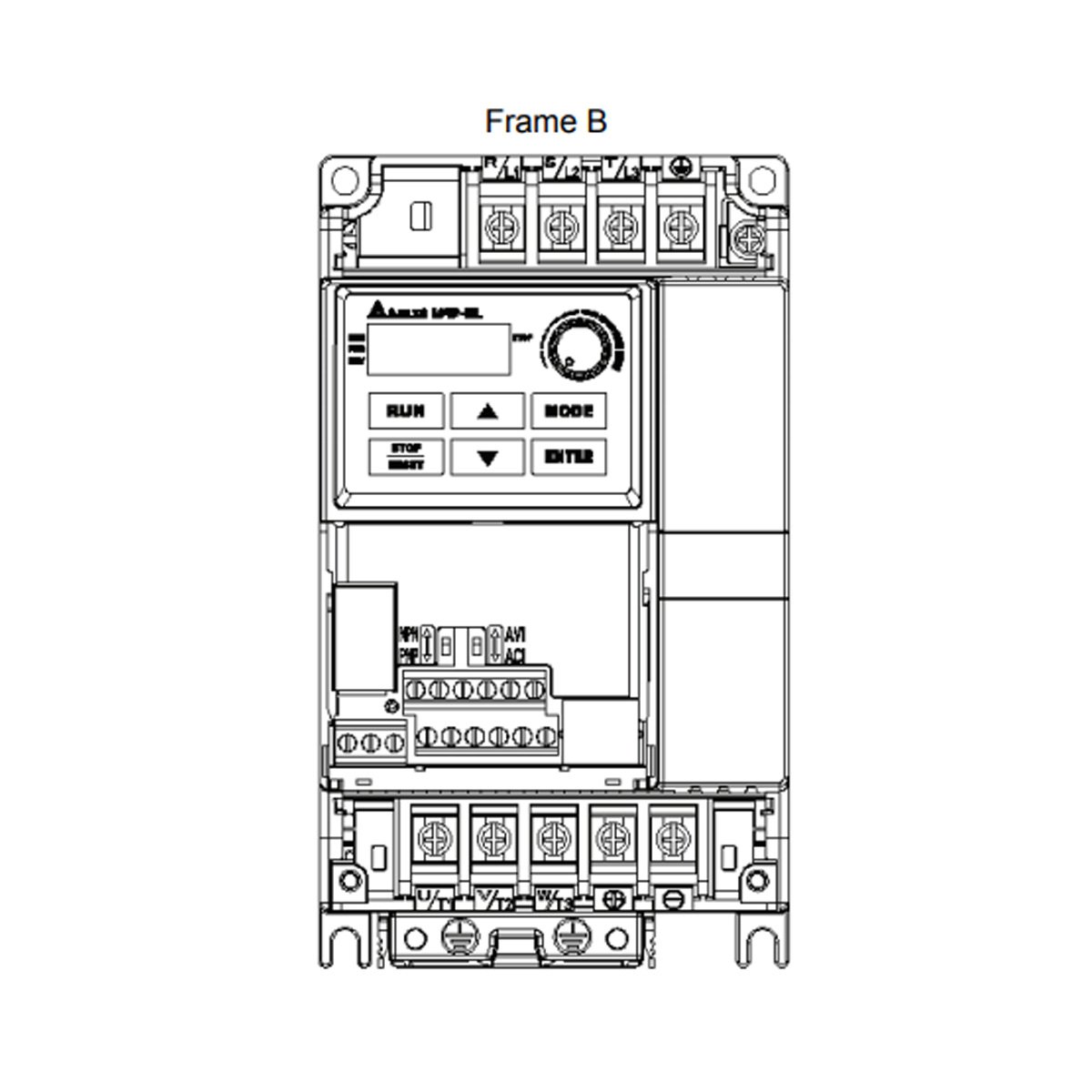

Frame Size: B
Height: 6.85 Inches
Width: 3.94 Inches
Depth: 5.35 Inches

Delta VFD-EL AC Drive Accessories

Item #
Delta CME-DN01 CME-DN1 Internal DeviceNet card
Delta CME-LW01 CME-LW01 Internal LonWorks card
Delta CME-PD01 CME-PD01 Internal ProfiBus card
Delta CME-COP01 CME-COP01 Internal CANopen card
Delta MKE-EP MKE-EP Earthing Plate
Delta MKEL-DRA MKEL-DRA Used on VFD-EL Frame A
Delta MKEL-DRB MKEL-DRB Used on VFD-EL Frame B
Delta RC-01 RC-01A Remote Start/Stop station
Delta BUE-20015 BUE-20015 Brake Unit
Delta BUE-40015 BUE-40015 Brake Unit
Delta BUE-20037 BUE-20037 Brake Unit
Delta BUE-40037 BUE-40037 Brake Unit
Delta BR200W150 Braking Resistor
Delta BR200W250 Braking Resistor
Delta BR300W100 Braking Resistor
Delta BR300W400 Braking Resistor

Click on the links below to see Drawings and Specs:

Delta VFD-EL-Catalog

Delta VFD-EL-Manual

Delta VFD-EL-B-PD01 Spec Sheet
