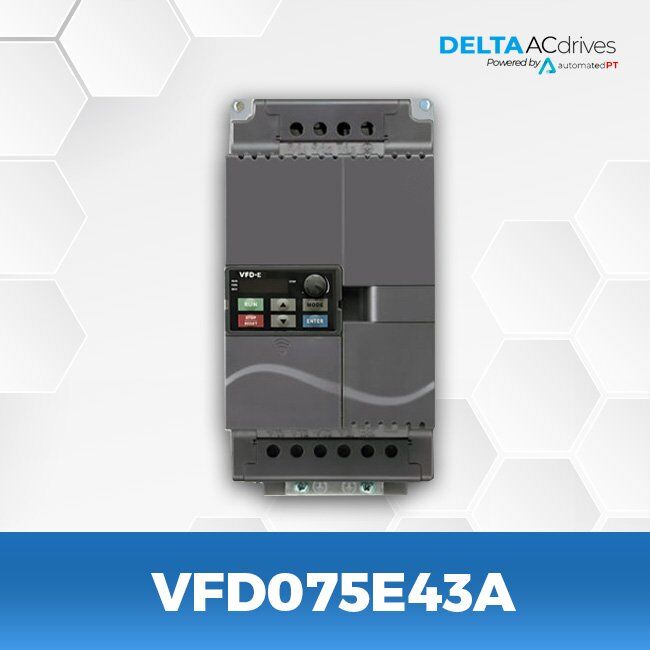

Delta VFD075E43A VFD-E Series Drive

  • Series: VFD-E
  • 10 HP
  • 7.5 KW
  • 460 V
  • 18 A
  • Input: 3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD17AMS43ANSAA drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


FEATURES Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.

Delta VFD075E43A

10HP 460V 3PH 18A

Delta Products
AC Drives, VFD-E Series

ITEM # VFD075E43A
MFG # VFD075E43A
Series VFD-E

Drive, AC, 10Hp,460V 3-Phase Input/ 3-Phase Output

Specifications
Item Number: VFD075E43A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-E
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP (CT): 10 Horsepower
Amps (CT): 18 Amps
Input Phase: 3
Operator Controls: Sold Separately, See Accessories
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Included
Enclosure Rating: IP20

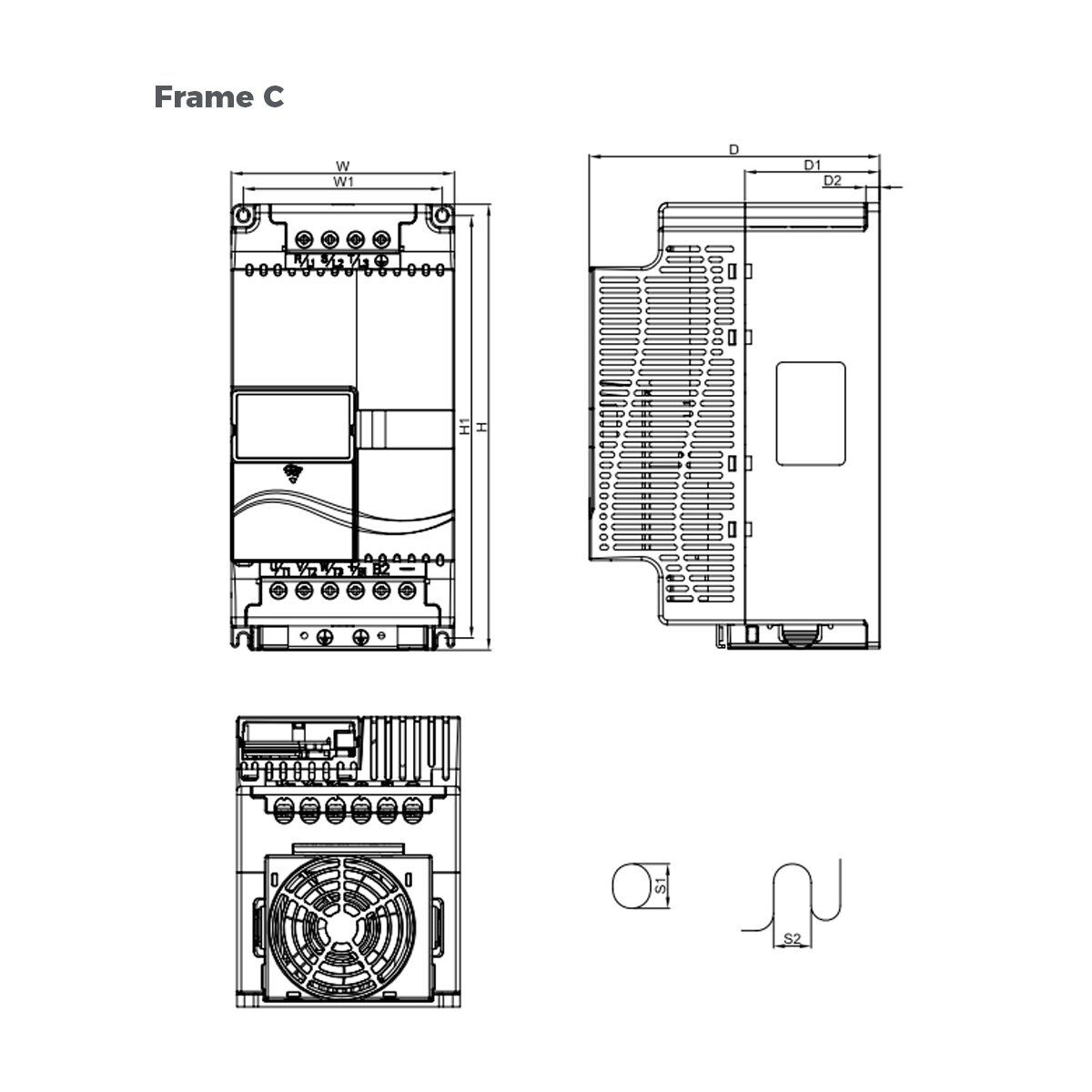

Frame Size: C
Height: 10.24 Inches
Width: 4.57 Inches
Depth: 6.66 Inches
Comments: LED Status Indicator Included, Keypad Sold Separately.

VFD-E AC Drive Accessories

Item #
Delta KPE-LE02 KPE-LE02 Optional Keypad
Delta CME-DN01 CME-DN1 Internal DeviceNet card
Delta CME-LW01 CME-LW01 Internal LonWorks card
Delta CME-PD01 CME-PD01 Internal ProfiBus card
Delta CME-USB01 CME-USB01 Internal USB communication card
Delta EME-D33A EME-D33A Digital I/O Extension card
Delta EME-R2CA EME-R2CA 2 Form C relay extension card
Delta EME-R3AA EME-R3AA 3 Form A relay extension card
Delta EME-PG01 EME-PG01 Encoder feedback card
Delta EME-A22A EME-A22A Analog I/O Extension card
Delta CME-COP01 CME-COP01 Internal CANopen card
Delta MKE-DRA MKE-DRA Used on VFD-E Frame A
Delta MKE-DRB MKE-DRB Used on VFD-E Frame B
Delta MKE-EP MKE-EP Earthing Plate
Delta MKE-HUB01 MKE-HUB01 HUB
Delta EG3010A 3 Meter Keypad Extension Cables
Delta RC-01 RC-01A Remote Start/Stop station
Delta BUE-20015 BUE-20015 Brake Unit
Delta BUE-40015 BUE-40015 Brake Unit
Delta BR1K0W075 Braking Resistor

Click on the links below to see Drawings and Specs:

Delta VFD-E-User-Manual

Delta VFD-E-Catelag

Delta VFD-E-A-PD04 Spec Sheet
