Delta’s VFD-VL series AC motor drive designed for elevators are based on years of experiences in designing AC motor drives, and the latest control technology adopted in VFD-VL will offer you high reliability and safety. All the features of VFD-VL are to meet the needs from the market, e.g. controlling the brake for motors, backup electricity, built-in brake loop, auto-tuning of motor parameters, numerous encoder interfaces, bountiful communication functions and self protection, etc.

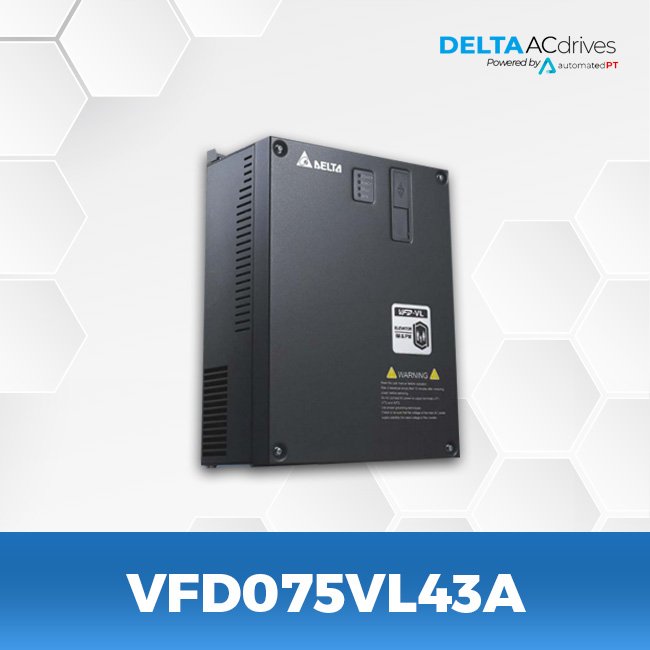

Delta VFD075VL43A – Elevator Motor Drives
Product Name AC Drive
Description Elevator Drive
Manufacturer : Delta
Comm.: RS-485 (MODBUS)
Start-up Torque: 150% AT 0.5 HZ and 200% AT 0.0 HZ (WITH PG)
Overload Endurance: 150% FOR 1 MINUTE and 200% FOR 2 SEC.
PG Close Loop: YES
PID/PLC Function: NO
Control Mode: V/F, SENSORLESS VECTOR, V/F-PG, FOC-PG, TORQUE-PG (2) FOC-PG (FOR PM MOTOR)
Braking Chopper: In-Built
Application: Elevator for PM and IM Motor
Output Current: 18
Output Frequency (HZ): 0.00 TO 120 HZ
Voltage Class: 440V
Supply Type (A): 3
Click on the links below to see Drawings and Specs:
Delta VFD-VL-C-PD00-00 Spec Sheet
Delta Bypass Panels play an important role in a system to reduce energy usage,optimize AC motor speed control, extend motor life, and reduce overall cost. The bypass capabilities allow the motor to be operated from either the Delta VFD or at full speed, directly across the line. The Delta Bypass Panel sets a benchmark for cost, performance, quality, and custom engineered bypass panels. Delta offers both the standard bypass panel, or our custom engineered panel to fulfill all your specification requirements.
