SPECIFICATIONS

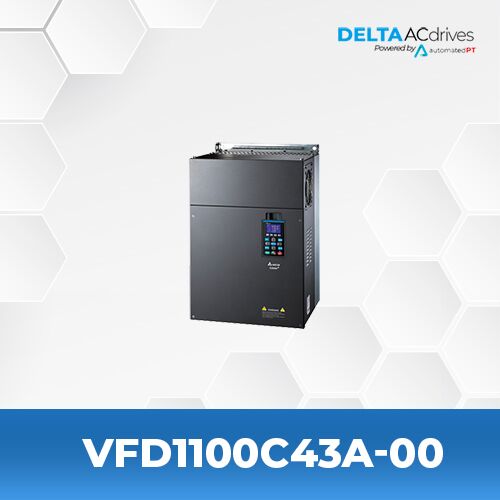

Model Name | VFD1100C43A-00 |
Alternative Model Name | VFD1100C43A |
Series | VFD-C2000+ / C2000 |
Input Voltage – Phase | 460 V – 3 Phase |
Motor Power Range | 110 kW – 150 HP – 220 A |
Weight | 146 lbs |

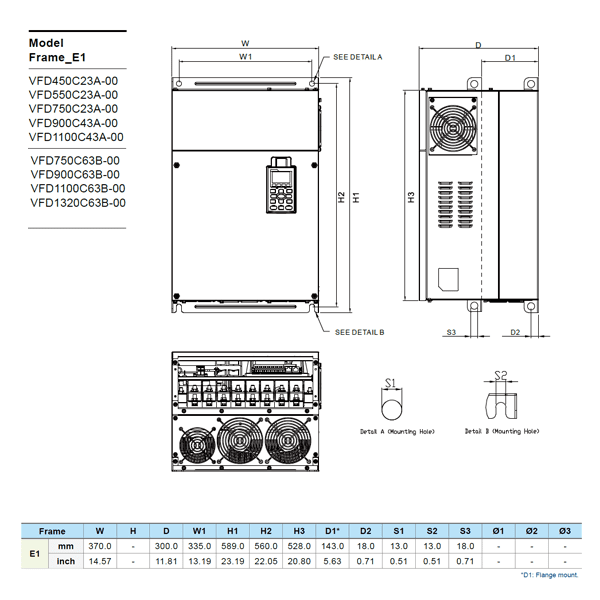

Dimensions | 14.57in (W) X 23.19in (H) X 11.81in (D) |
Applications: Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.
CATALOG & MANUALS
Catalog | Delta C2000+ Drive Catalog | |
Users Manual | Delta C2000+ Drive Users Manual |
SERIES DESCRIPTION
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. Features Include: Advanced Drive Controls For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode Versatile Drive Controls Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control Environmental Adaptability Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature Modular Design Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan Others Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
Delta VFD C-2000 AC Drive Accessories
Item # | |
Delta CMC-EIP01 | Ethernet/IP and MODBUS TCP Card |
Delta CMC-MOD01 | Modbus TCP Communication Card |
Delta CMC-DN01 | Ethernet/IP and MODBUS TCP Card |
Delta CMC-PD01 | Profibus Communication Module |
Delta EMC-BPS01 | EMC-BPS01 24VDC External Power Supply Card |
Delta EMC-COP01 | EMC-COP01 CANopen Card |
Delta EMC-D42A | EMC-D42A I/O Extension Card 4I/2O |
Delta EMC-D611A | EMC-D611A I/O CARD 110VAC 6 Input |
Delta EMC-PG01L | EMC-PG01L Encoder Feedback Card |
Delta EMC-PG01O | EMC-PG01O Encoder Feedback Card |
Delta EMC-PG01R | EMC-PG01R Resolver Feedback Card |
Delta EMC-PG01U | EMC-PG01U Encoder Feedback Card |
Delta EMC-R6AA | EMC-R6AA Relay Extension Card 6 Form A |
Delta MKC-D0N1CB | MKC-D0N1CB Conduit Box Kit Frame D NEMA1 |
Delta KPC-CE01 | KPC-CE01 LED English Keypad |
Delta KPC-CC01 | KPC-CC01 Single Line LCD Keypad |
Delta BR200W091 | Braking Resistor |
Delta BR200W360 | Braking Resistor |
Delta BR300W070 | Braking Resistor |
Delta BR300W250 | Braking Resistor |
Delta BR400W040 | Braking Resistor |
Delta BR400W150 | Braking Resistor |
Delta BR1K0W016 | Braking Resistor |
Delta BR1K0W020 | Braking Resistor |
Delta BR1K0W4P3 | Braking Resistor |
Delta BR1K0W5P1 | Braking Resistor |
Delta BR1K0W075 | Braking Resistor |
Delta BR1K2W015 | Braking Resistor |
Delta BR1K2W3P9 | Braking Resistor |
Delta BR1K5W012 | Braking Resistor |
Delta BR1K5W013 | Braking Resistor |
Delta BR1K5W043 | Braking Resistor |
Delta BR1K5W3P3 | Braking Resistor |
