Delta VFD11AMS23MNSAA VFD-MS300 Series Drive

$748.91

  • Series: MS-300
  • 3 Horsepower(HP)
  • 2.2 Kilowatt (KW)
  • 230 Volts
  • 11 Amps
  • 3 Phase

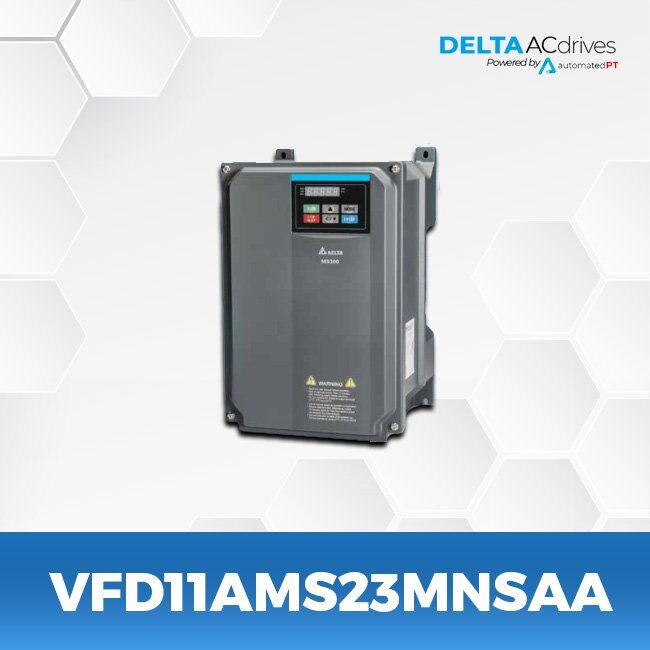

Delta VFD11AMS23MNSAA

VFD-MS300, 3HP 2.2kW 230V 11A HD 12.5A ND 3ph NEMA4X 599Hz

  • Input Phase: 3 PH
  • Input Voltage: 200-240 Volts
  • Output Horsepower: 2 HP
  • Output Kilowatts: 2.2 KW
  • Output Phase: 3 PH
  • Output Current: 11 Amps
  • Output Voltage: 0-230 Volts
  • PLC Language: Ladder
  • Program Capacity:
  • Mounting: Screws or Earthing Plate Kit
  • Brake Transistor: Internal
  • Closed Loop Control: NO
  • Communication Ports: Modbus Ascii and RTU
  • Conduit Box:
  • Frame Size: B
  • Programming Connection: RJ45 twisted pair
  • Protection Level: IP66 / NEMA4X
  • Sensorless Control: YES
  • Torque Type: Constant
  • V/F Control: YES

CATALOG & MANUALS


Catalog Delta VFD-MS300 Drive Catalog
Users Manual Delta VFD-MS300 User Manual
