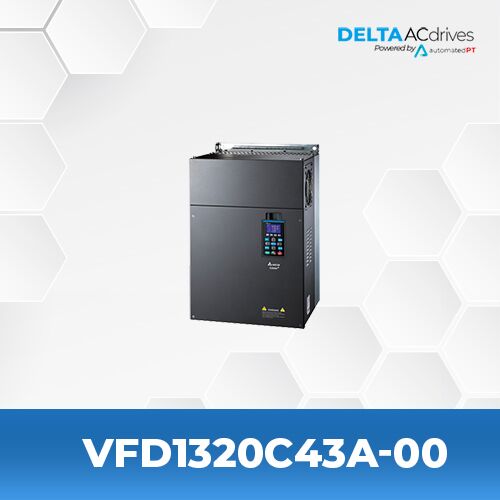

Delta VFD1320C43A-00 C2000+ Series Drive

$9,207.00

  • Series: VFD-C2000+
  • 132 kW
  • 175 HP
  • 260 A
  • 460 V
  • 3 Phase


SPECIFICATIONS

Model Name VFD1320C43A-00
Alternative Model Name VFD1320C43A
Series C2000+
Input Voltage – Phase 460 V – 3 Phase
Motor Power Range 132 kW – 175 HP – 260 A
Weight 194 lbs

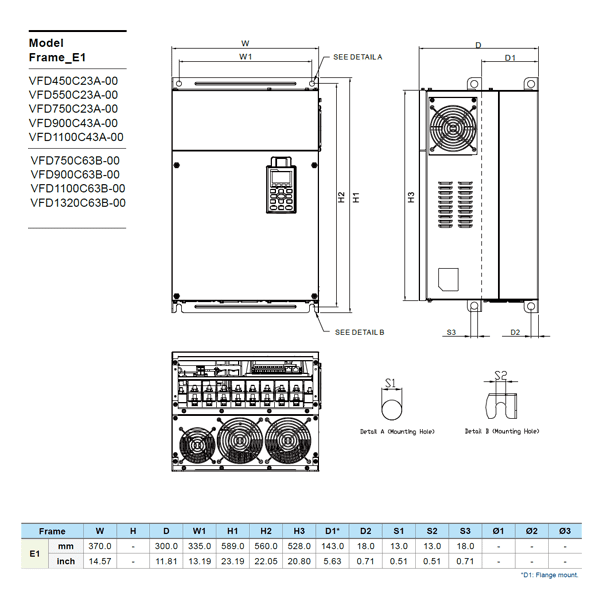

Dimensions 14.57in (W) X 23.19in (H) X 11.81in (D)

Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.

CATALOG & MANUALS

Catalog Delta C2000+ Drive Catalog
Users Manual Delta C2000+ Drive Users Manual

SERIES DESCRIPTION

The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.

Features Include:

Advanced Drive Controls
For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode

Versatile Drive Controls
Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control

Environmental Adaptability
Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature

Modular Design
Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan

Others
Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
