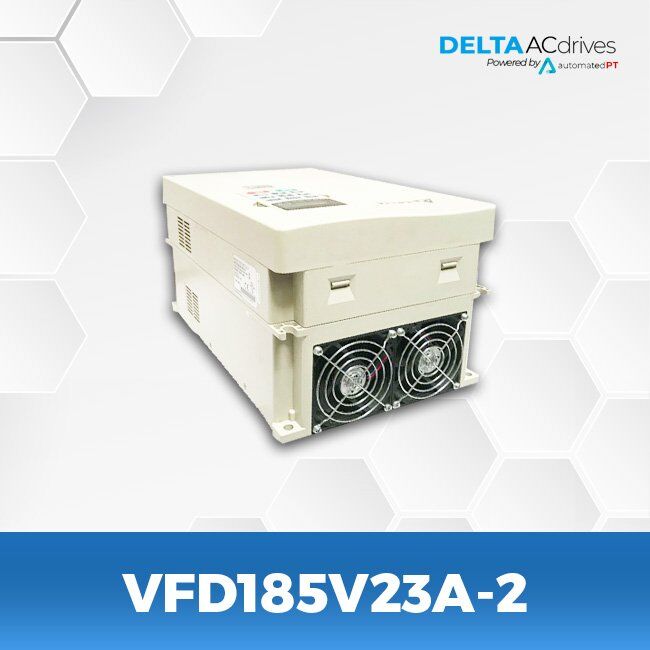

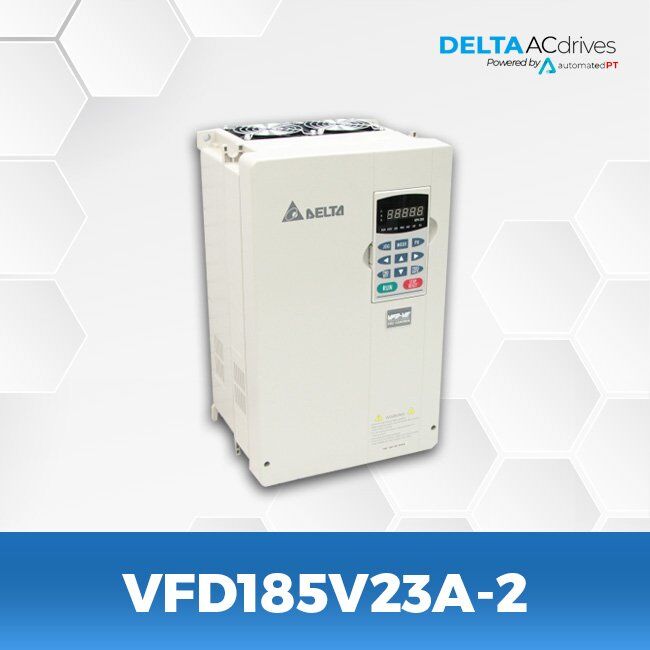

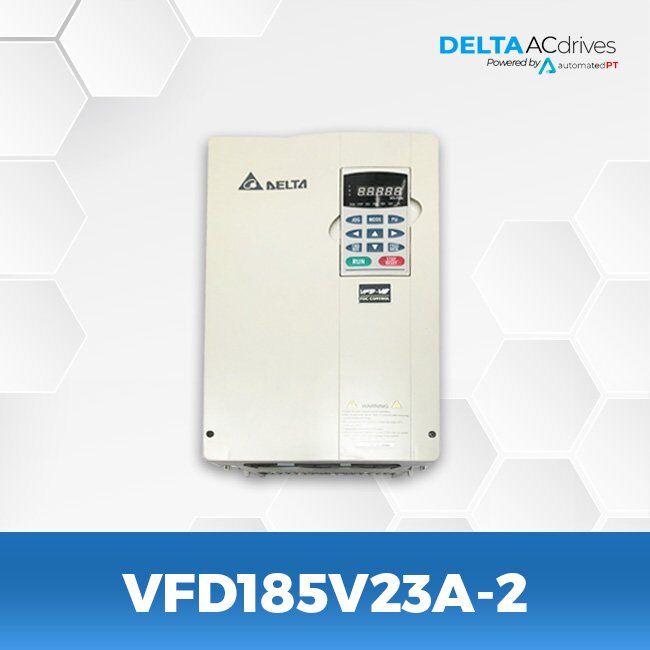

Delta VFD185V23A-2 VFD-VE Series Drive

  • Series: VFD-VE
  • 25 HP
  • 18.75 KW
  • 230 V
  • 75 A
  • Input: 3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD185C23A drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


Delta no longer considers this drive to be a core product. There is limited stock or long lead times. Call 800-985-6929 to check stock.
Newer model recommended replacement drive:
Three Phase Input: VFD185C23A

Always confirm drive specifications and call 800-985-6929 if you have any questions. Note VFD185C23A do not have the same dimensions, please verify replacement drive dimensions will fit your enclosure or mount.

This series adopts FOC (Field Oriented Control) which is a far more precise vector control algorithm. It can be used in both speed control and position control similar to a servo motor drive. The multi-function I/O terminal is expanded to meet users’ various application needs. In addition, it is supplied with a Windows based PC software program for managing parameters and dynamic monitoring. It provides an excellent solution for load regulation. It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control, making it the best choice for challenging industrial control applications.

Delta Products
AC Drives, VFD-VE Series

ITEM # VFD185V23A-2
MFG # VFD185V23A-2
Series VFD-VE

Drive, AC, 25Hp Three Phase 230V Input

Specifications
Item Number: VFD185V23A-2
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-VE
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
HP (CT): 30 Horsepower
Amps (CT): 90 Amps
HP (VT): 40 Horsepower
Amps (VT): 112 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Closed Loop Vector
Closed Loop: Yes
AC Line Regenerative?: No
Dynamic Braking Trans?: Optional (External)
Enclosure Rating: NEMA 1;IP20

Click on the links below to see Drawings and Specs:

Delta VFD-VE-Catalog

Delta VFD-VE-User-Manual

Delta VFD-VE-D-PD00 Spec Sheet
