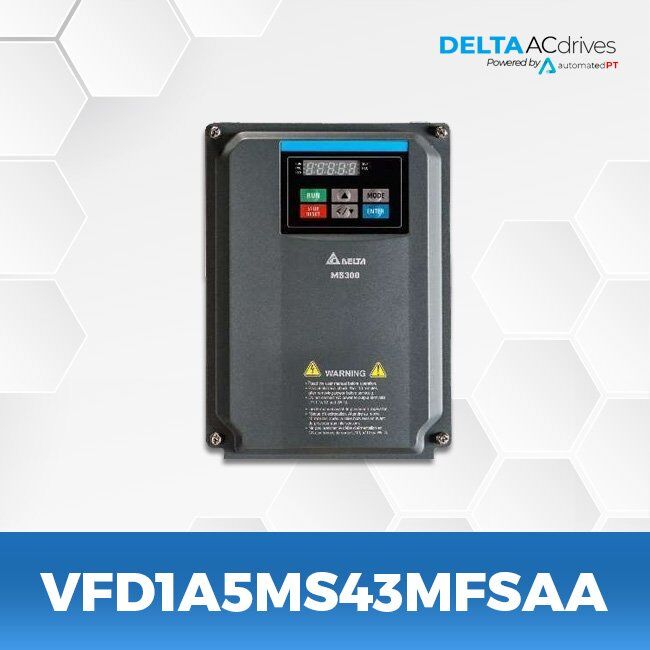

Delta VFD1A5MS43MFSAA MS300 Series Drive
$693.60
- Series: MS-300
- 460 V
- 3 Phase
- 0.5 HP
- 0.4 KW
- 0 – 599 Hz
- IP 66
- Built-in EMC Filter
- Heavy Duty Output: 1.5 A
- Normal Duty Output: 1.8 A
PRODUCT SPECIFICATIONS
| Model Name | VFD1A5MS43MFSAA |
| Series | MS-300 Series |
| Input Voltage – Phase | 460 V – 3 Phase |
| Motor Power Range | 0.5 HP – 0.4 KW |
| Frequency | 0 – 599 Hz |
| Frame Size | A1 |
| IP Level | IP 66 |
| EMC Filter | Built-in |
| Normal Duty* Amps | 1.8 A |
| Heavy Duty** Amps : | 1.5 A |
| Weight | 5.5 Lbs |

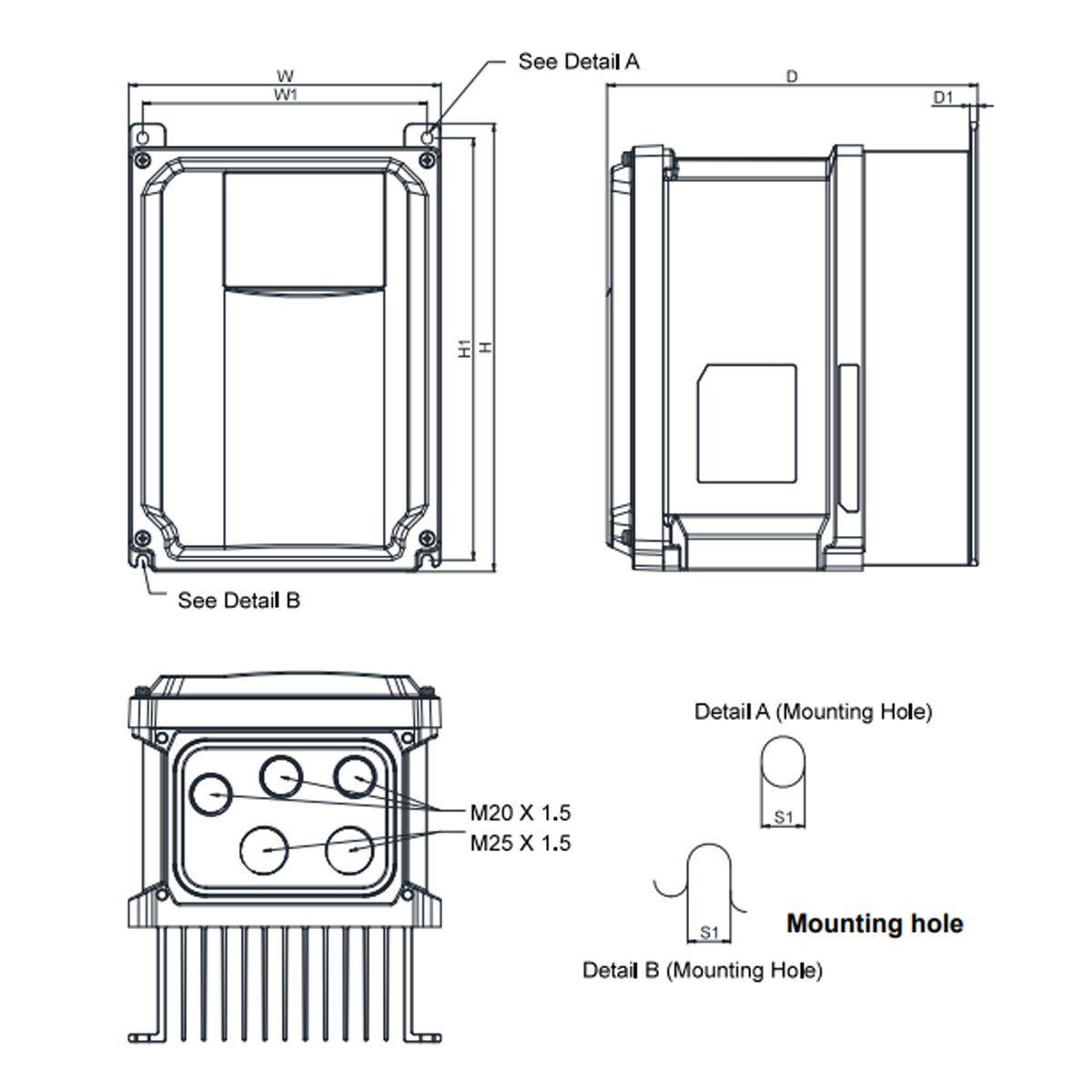

| Dimensions | 6.3 (in) x 9.06 (in) x 5.94 (in) |
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
FILES
 |
|
| Catalog | Delta MS300 Series Catalog |
| Users Manual | Delta MS 300 User Manual IP66 NEMA4x Models |
| Dimensions | Delta VFD1A5MS43MFSAA Dimensions |
| 2D-CAD File | Delta VFD1A5MS43MFSAA 2D CAD |
| 3D-CAD File | Delta VFD1A5MS43MFSAA 3D CAD |
| Energy Efficiency Report | Delta MS300 Energy Efficiency Report |
| UL Certification | Delta MS300 UL Certification |
SOFTWARE
Register and download the DIA Studio to use DIA Designer to program and configure your drives.
Know More
SERIES DESCRIPTION
The MS300 is Delta’s compact vector control drive line.
Optimized Space Utilization
Compact Design | Side-by-Side Installation
Communication Options
Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation
Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)
Strong System Support
Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control
Wide Range of Applications
Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines
