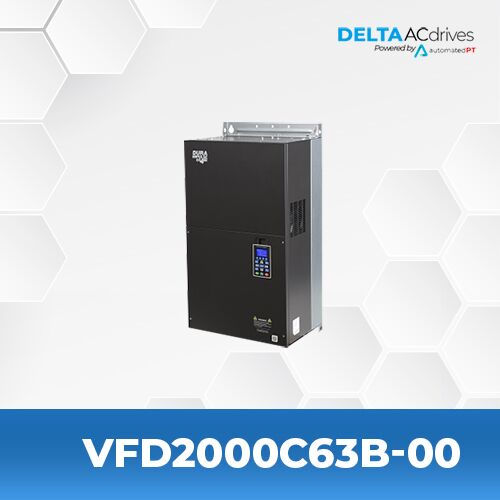

Delta VFD2000C63B-00 C2000+ Series Drive

$9,804.06

  • Series: VFD-C2000+
  • 200 kW
  • 270 HP
  • 220 A
  • 690 V
  • 3 Phase


SPECIFICATIONS

Model Name VFD2000C63B-00
Series VFD-C2000+ / C2000
Input Voltage – Phase 690 V – 3 Phase
Motor Power Range 200 kW – 270 HP – 220 A
Weight 194 lbs
Dimensions 14.57in (W) X 22.05in (H) X 11.81in (D)

Applications: Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.

CATALOG & MANUALS


Catalog Delta C2000+ Drive Catalog
Users Manual Delta C2000+ Drive Users Manual

SERIES DESCRIPTION

The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. Features Include: Advanced Drive Controls For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode Versatile Drive Controls Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control Environmental Adaptability Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature Modular Design Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan Others Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
