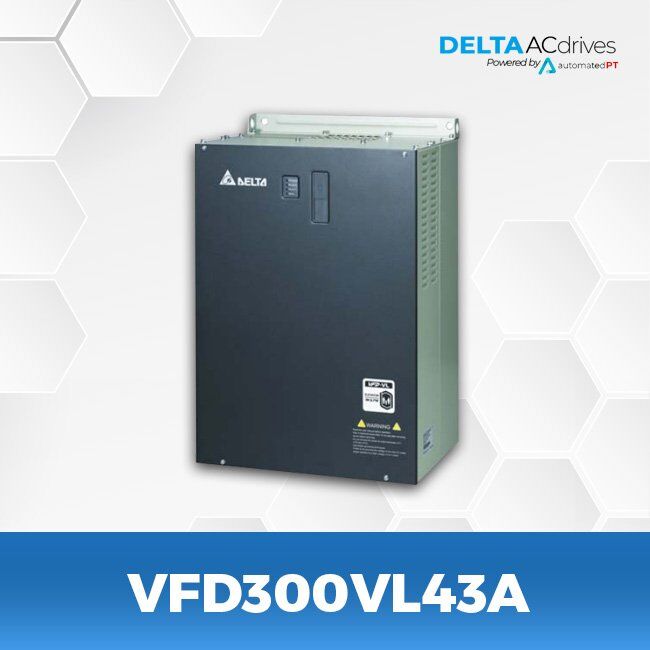

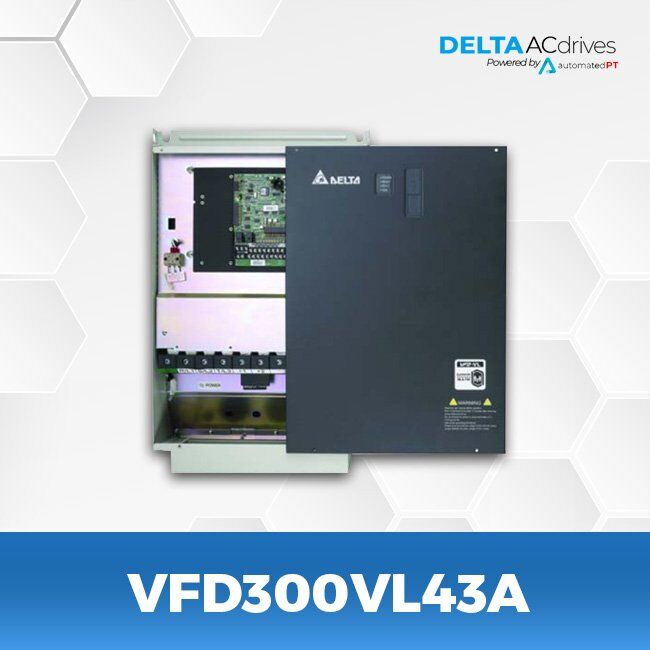

Delta VFD300VL43A VFD-VL Series Drive

  • Series: VFD-VL
  • 40 HP
  • 30 KW
  • 460 V
  • 120 A
  • Input: 3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD300C43A drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive


Delta’s VFD-VL series AC motor drive designed for elevators are based on years of experiences in designing AC motor drives, and the latest control technology adopted in VFD-VL will offer you high reliability and safety. All the features of VFD-VL are to meet the needs from the market, e.g. controlling the brake for motors, backup electricity, built-in brake loop, auto-tuning of motor parameters, numerous encoder interfaces, bountiful communication functions and self protection, etc.

Delta VFD300VL43A – Elevator Motor Drives

Product Name AC Drive
PartNo VFD300VL43A
Manufacturer Delta
Description Elevator Drive

Manufacturer : Delta
RoHS:
Comm.: RS-485 (MODBUS)
Start-up Torque: 150% AT 0.5 HZ and 200% AT 0.0 HZ (WITH PG)
Overload Endurance: 150% FOR 1 MINUTE and 200% FOR 2 SEC.
PG Close Loop: YES
PID/PLC Function: NO
Control Mode: V/F, SENSORLESS VECTOR, V/F-PG, FOC-PG, TORQUE-PG (2) FOC-PG (FOR PM MOTOR)
Braking Chopper: In-Built
Application: Elevator for PM and IM Motor
Output Current: 75
Output Frequency (HZ): 0.00 TO 120 HZ
KW: 30
HP: 40
Voltage Class: 440V
Supply Type (A): 3

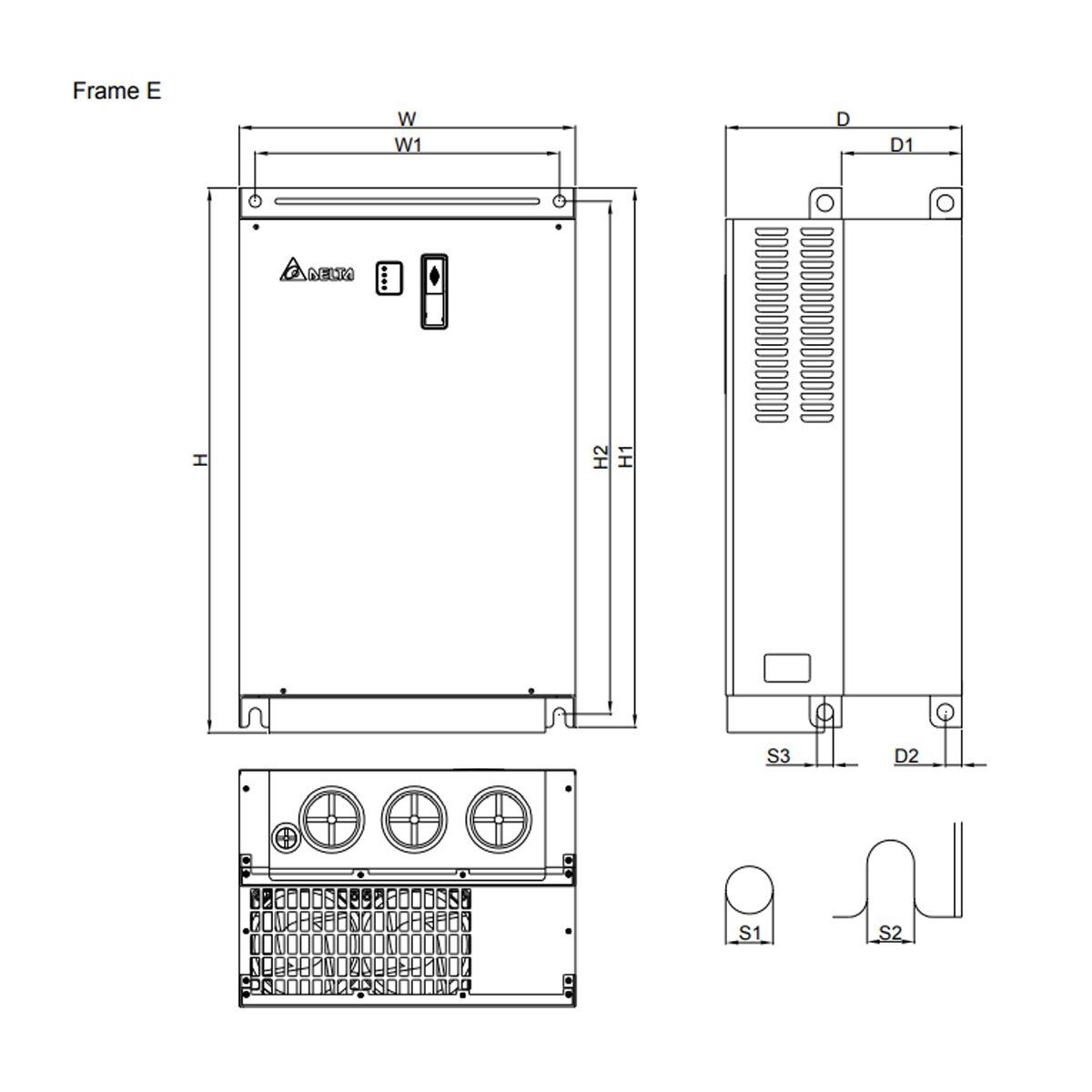

Click on the links below to see Drawings and Specs:

Delta VFD-VL-Catalog

Delta VFD-VL-User-Manual

Delta VFD-VL-E-PD00 Spec Sheet
