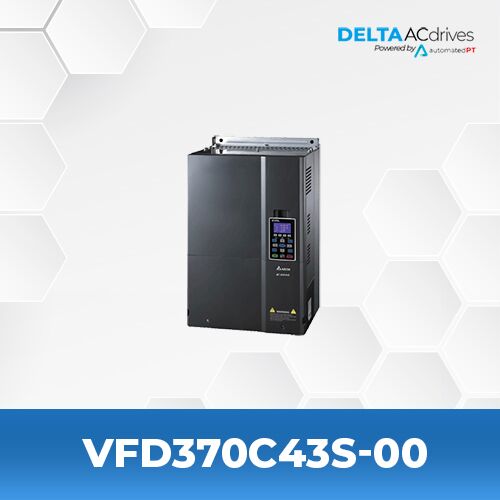

Delta VFD370C43S-00 VFD-C2000+ Series Drive

$2,962.85

  • Series: VFD-C2000+
  • 37 kW
  • 50 HP
  • 73 Amps
  • 460 V
  • 3 Phase


SPECIFICATIONS

Model Name VFD370C43S-00
Series VFD-C2000+
Input Voltage – Phase 460 V – 3 Phase
Motor Power Range 37 kW – 50 HP – 73 Amps
Weight 90 lbs

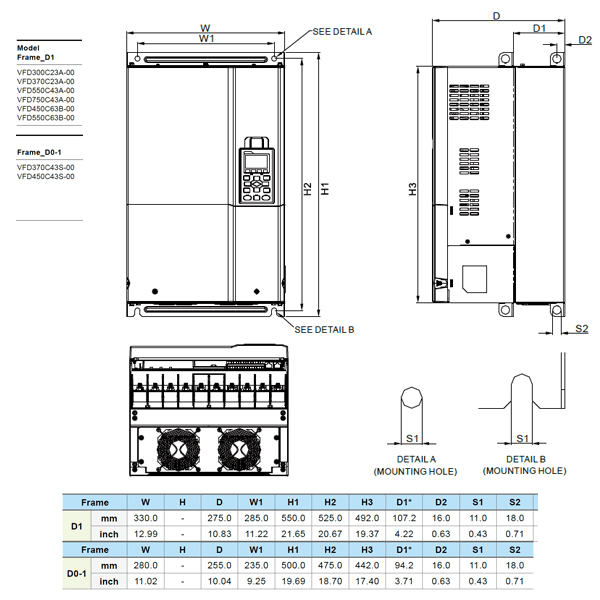

Dimensions 11.02in (W) X 19.69in (H) X 9.25in (D)

Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.

CATALOG & MANUALS

Catalog Delta C2000+ Drive Catalog
Users Manual Delta C2000+ Drive Users Manual

SERIES DESCRIPTION

The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.

Features Include:

Advanced Drive Controls
For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode

Versatile Drive Controls
Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control

Environmental Adaptability
Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature

Modular Design

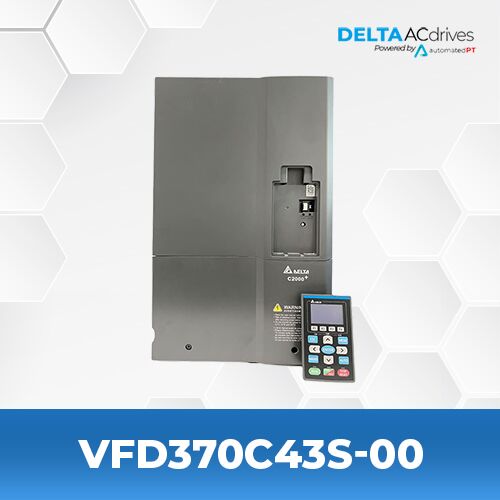

Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan

Others
Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
