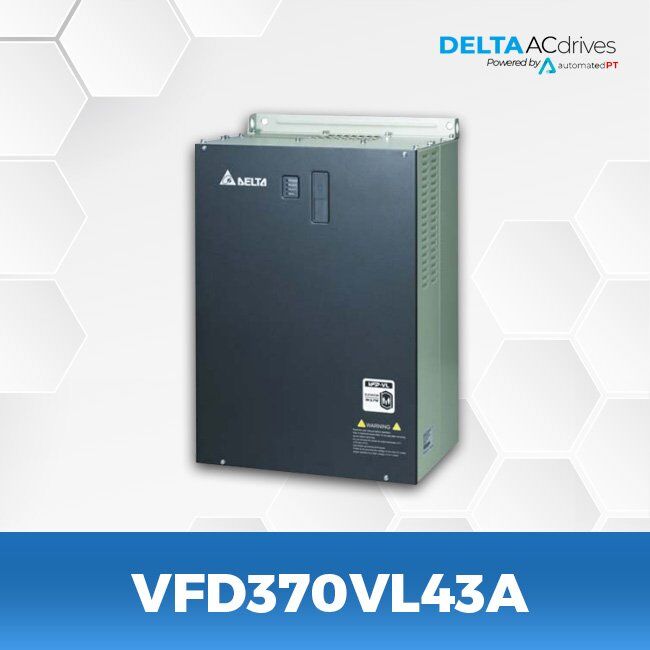

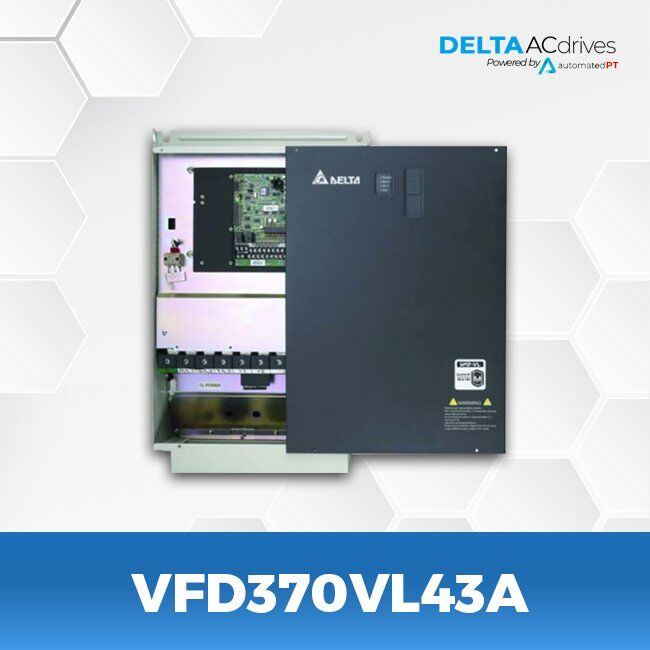

Delta VFD370VL43A VFD-VL Series Drive

  • Series: VFD-VL
  • 50 HP
  • 37.5 KW
  • 230 V
  • 146 A
  • Input: 3 PH
This product is no longer manufactured or sold. The Delta recommended replacement is the VFD370C43S-21 drive. Please check the dimensions and specifications on the replacement drive page or contact us at 800-985-6929 to confirm the replacement will work for your application.

Replacement Drive

Delta’s VFD-VL series AC motor drive designed for elevators are based on years of experiences in designing AC motor drives, and the latest control technology adopted in VFD-VL will offer you high reliability and safety. All the features of VFD-VL are to meet the needs from the market, e.g. controlling the brake for motors, backup electricity, built-in brake loop, auto-tuning of motor parameters, numerous encoder interfaces, bountiful communication functions and self protection, etc.

Delta VFD370VL43A – Elevator Motor Drives

Product Name AC Drive
PartNo VFD370VL43A
Manufacturer Delta
Description Elevator Drive

Manufacturer : Delta
RoHS:
Comm.: RS-485 (MODBUS)
Start-up Torque: 150% AT 0.5 HZ and 200% AT 0.0 HZ (WITH PG)
Overload Endurance: 150% FOR 1 MINUTE and 200% FOR 2 SEC.
PG Close Loop: YES
PID/PLC Function: NO
Control Mode: V/F, SENSORLESS VECTOR, V/F-PG, FOC-PG, TORQUE-PG (2) FOC-PG (FOR PM MOTOR)
Braking Chopper: In-Built
Application: Elevator for PM and IM Motor
Output Current: 91
Output Frequency (HZ): 0.00 TO 120 HZ
KW: 37
HP: 50
Voltage Class: 440V
Supply Type (A): 3

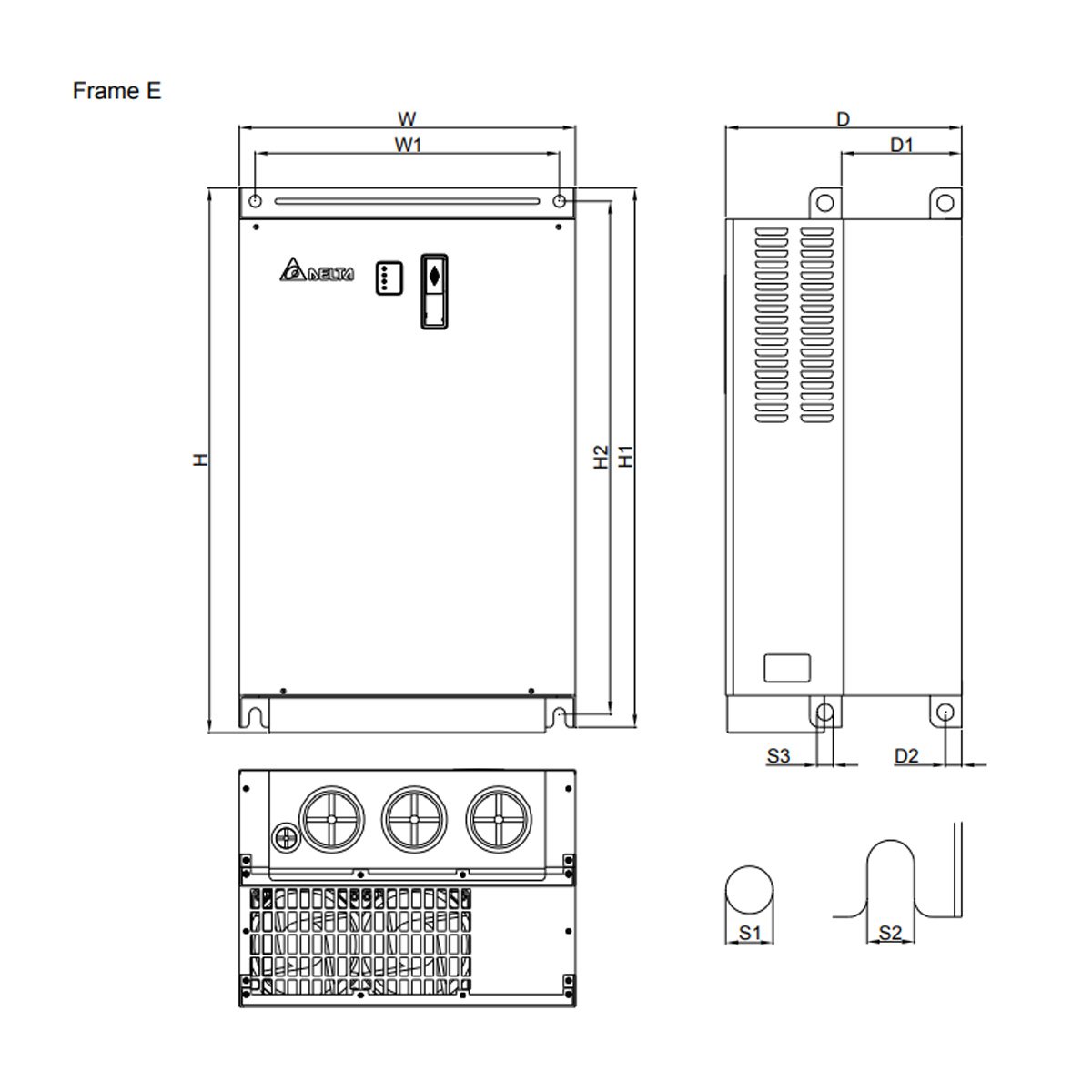

Click on the links below to see Drawings and Specs:

Delta VFD-VL-Catalog

Delta VFD-VL-User-Manual

Delta VFD-VL-E-PD00 Spec Sheet
