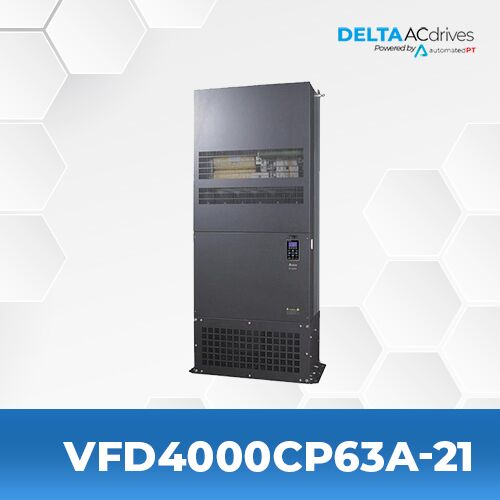

Delta VFD4000CP63A-21 VFD-CP2000 Series Drive

  • Series: VFD-CP2000
  • 530 HP
  • 400 kW
  • 430 A
  • 690 V
  • Input: 3 PH


SPECIFICATIONS

Model Name VFD4000CP63A-21
Motor Power Range 530 HP – 400 kW – 430 Amps
Series VFD-CP2000
Input Voltage – Phase 690 V – 3 Phase
Weight 538 lbs

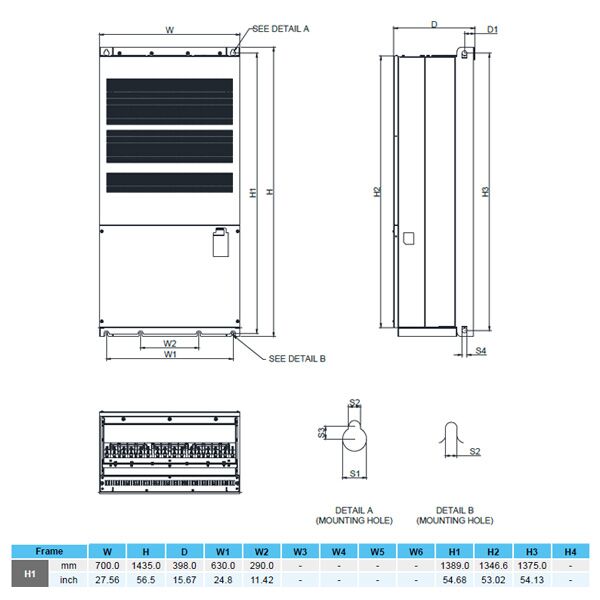

Dimensions 27.56in (W) X 68.7in (H) X 15.91in (D)

Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.

CATALOG & MANUALS

Catalog Delta CP2000 Drive Catalog
Users Manual Delta CP2000 Drive Users Manual

SERIES DESCRIPTION

Delta Industrial Automation introduces the CP2000 Series AC motor drive for energy-saving HVAC systems and for pump and fan applications. The CP2000 Series is equipped with special HVAC parameters and PID control functions for efficient operation, as well as multi-segment V/F control curve and soft start functions to assist frequent torque change and constant output applications with energy-saving performance.

Features Include:

High Performance Variable Frequency Drive Technology
Sensorless Vector Control (SVC) | Dual rating design (Light duty & Normal duty) | Excellent variable torque control of asynchronous motors

Modular Design
Hot pluggable LCD keypad | I/O extension card | Various communication cards | Removable fans

Environmental Adaptability
50°C operation temperature | Built-in DC choke | Coated circuit boards | Built-in EMC filter | International safety standard CE/UL/cUL
