SPECIFICATIONS

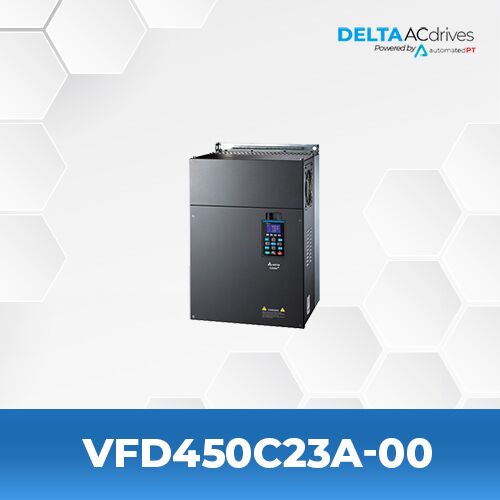

Model Name | VFD450C23A-00 |
Alternative Model Name | VFD450C23A – VFD450C23A-21 |
Series | VFD-C2000+ / C2000 |
Input Voltage – Phase | 230 V – 3 Phase |
Motor Power Range | 45 kW – 60 HP – 180 A |
Weight | 146 lbs |
Dimensions | 14.57in (W) X 23.19in (H) X 11.81in (D) |
Applications: Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.
CATALOG & MANUALS
Catalog | Delta C2000+ Drive Catalog | |
Users Manual | Delta C2000+ Drive Users Manual |
SERIES DESCRIPTION
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors. Features Include: Advanced Drive Controls For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode Versatile Drive Controls Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control Environmental Adaptability Built-in DC reactor | Built-in EMC filter | 50ËšC operating temperature Modular Design Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan Others Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
