SPECIFICATIONS

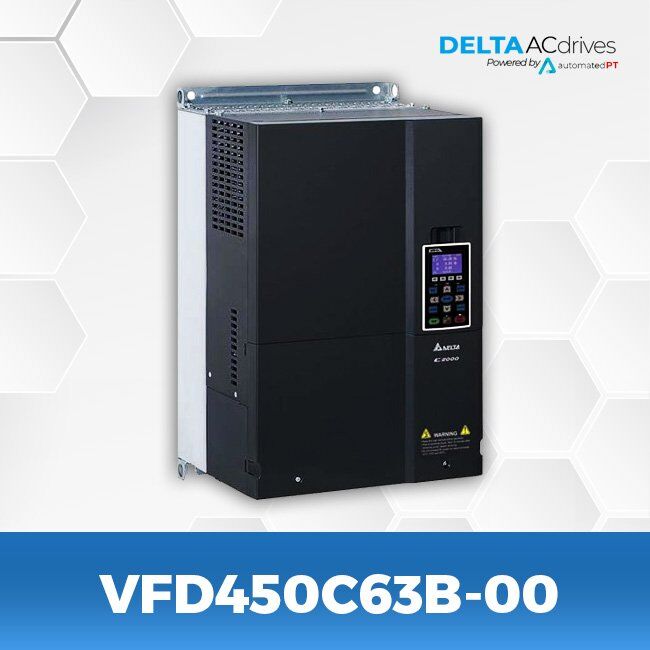

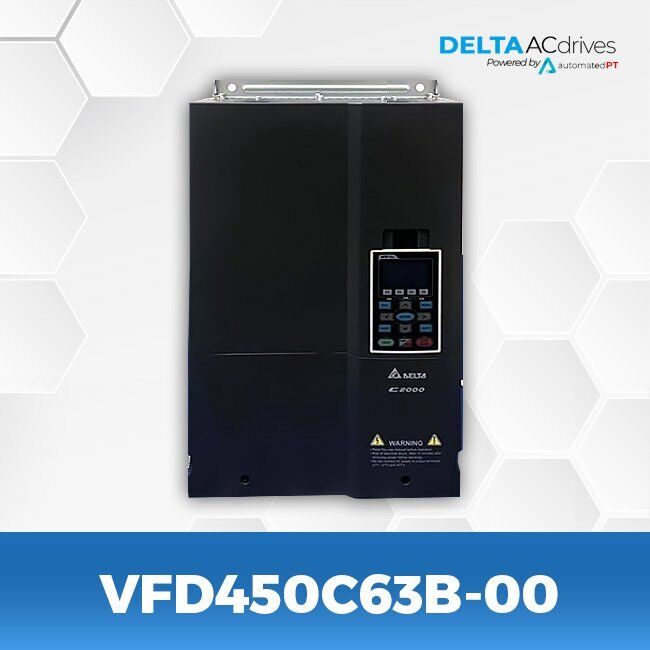

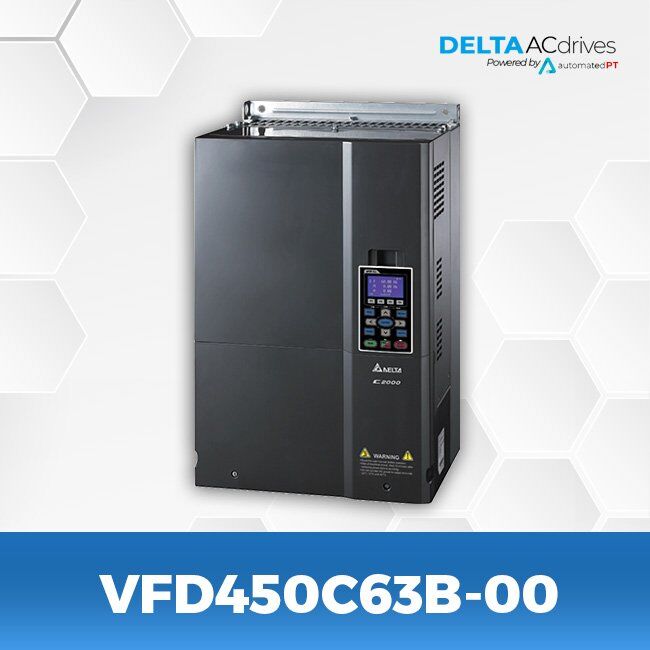

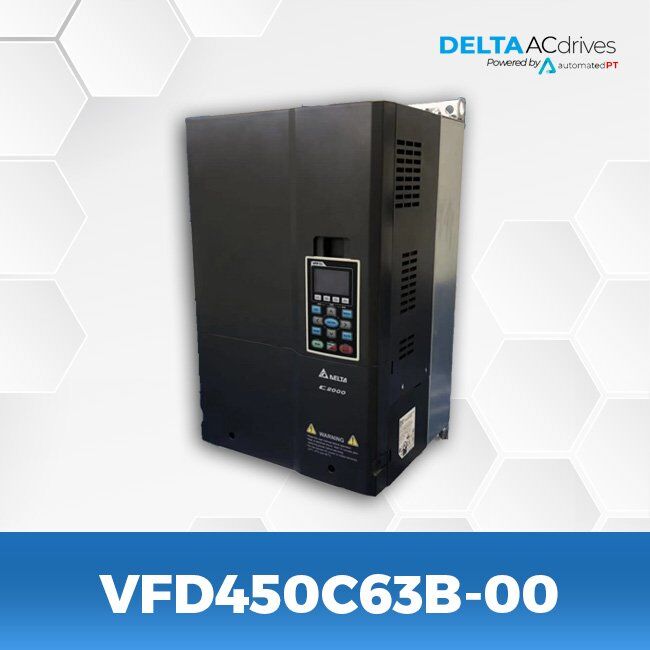

Model Name | VFD450C63B-00 |
Alternative Model Name | VFD450C63B-21 |
Alternative Model Name | VFD450C63B-21 |
Series | VFD-C2000+ / C2000 |
Input Voltage – Phase | 690 V – 3 Phase |
Motor Power Range | 45 kW – 60 HP – 54 Amps |
Weight | 90 lbs |

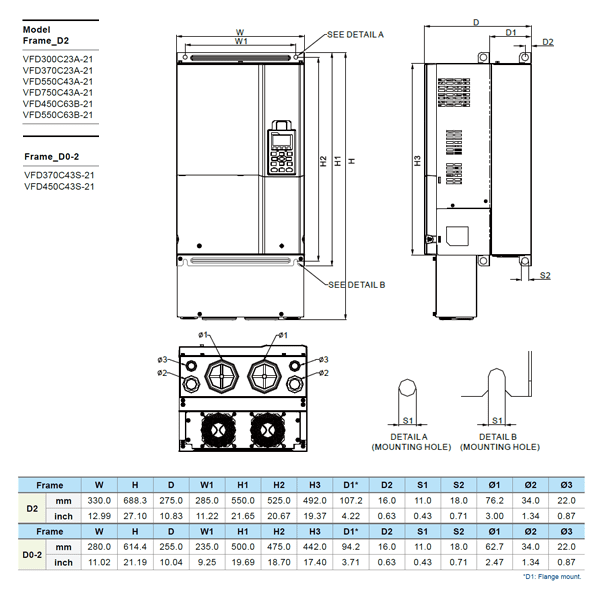

Dimensions | 11.02in (W) X 19.69in (H) X 10.83in (D) |
Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.
CATALOG & MANUALS
Catalog | Delta C2000+ Drive Catalog | |
Users Manual | Delta C2000+ Drive Users Manual |
SERIES DESCRIPTION
The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.
Features Include:
Advanced Drive Controls
For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode
Versatile Drive Controls
Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control
Environmental Adaptability
Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature
Modular Design
Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan
Others
Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform
