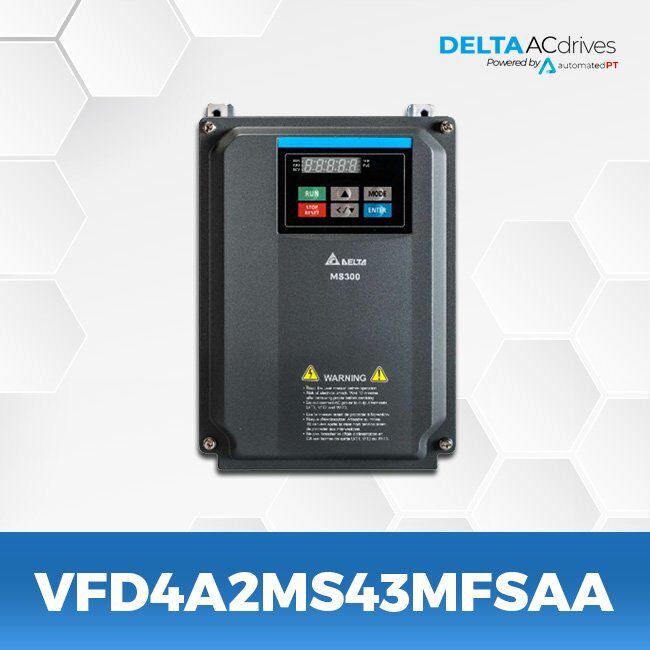

Delta VFD4A2MS43MFSAA VFD-MS300 Series Drive

$785.93

  • Series: MS-300
  • 2 Horsepower(HP)
  • 1.5 Kilowatt (KW)
  • 460 Volts
  • 4.2 Amps
  • 3 Phase

VFD4A2MS43MFSAA

VFD-MS300, 2HP 1.5kW 460V 4.2A HD 4.6A ND 3ph NEMA4X 599Hz EMC Filter

  • Input Phase: 3 PH
  • Input Voltage: 460 Volts
  • Output Horsepower: 2 HP
  • Output Kilowatts: 1.5 KW
  • Output Phase: 3 PH
  • Output Current: 4.2 Amps
  • Output Voltage: 0-480 Volts
  • PLC Language: Ladder
  • Program Capacity:
  • Mounting: Screws or Earthing Plate Kit
  • Brake Transistor: Internal
  • Closed Loop Control: NO
  • Communication Ports: Modbus Ascii and RTU
  • Conduit Box:
  • Frame Size: A2
  • Programming Connection: RJ45 twisted pair
  • Protection Level: IP66 / NEMA4X
  • Sensorless Control: YES
  • Torque Type: Constant
  • V/F Control: YES

CATALOG & MANUALS


Catalog Delta VFD-MS300 Drive Catalog
Users Manual Delta VFD-MS300 User Manual
