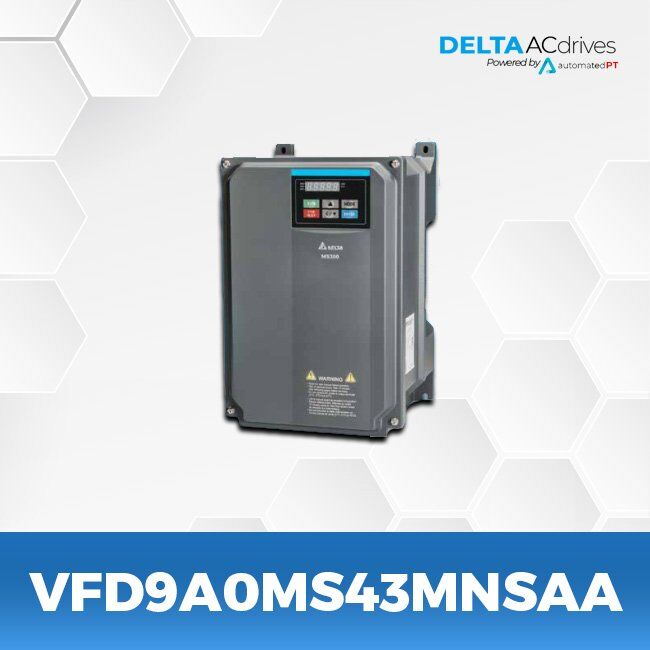

Delta VFD9A0MS43MNSAA VFD-MS300 Series Drive

$868.61

  • Series: MS-300
  • 5 Horsepower(HP)
  • 3.7 Kilowatt (KW)
  • 460 Volts
  • 9 Amps
  • 3 Phase


VFD9A0MS43MNSAA

VFD-MS300, 5HP 3.7kW 460V 9.0A HD 10.5A ND 3ph NEMA4X 599Hz

  • Input Phase: 3 PH
  • Input Voltage: 460 Volts
  • Output Horsepower: 2 HP
  • Output Kilowatts: 3.7 KW
  • Output Phase: 3 PH
  • Output Current: 9 Amps
  • Output Voltage: 0-480 Volts
  • PLC Language: Ladder
  • Program Capacity:
  • Mounting: Screws or Earthing Plate Kit
  • Brake Transistor: Internal
  • Closed Loop Control: NO
  • Communication Ports: Modbus Ascii and RTU
  • Conduit Box:
  • Frame Size: B
  • Programming Connection: RJ45 twisted pair
  • Protection Level: IP66 / NEMA4X
  • Sensorless Control: YES
  • Torque Type: Constant
  • V/F Control: YES

CATALOG & MANUALS


Catalog Delta VFD-MS300 Drive Catalog
Users Manual Delta VFD-MS300 User Manual
