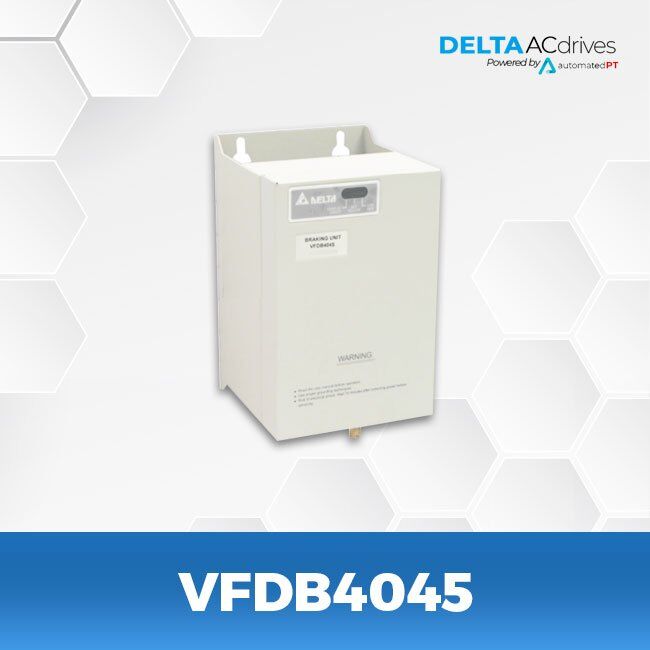

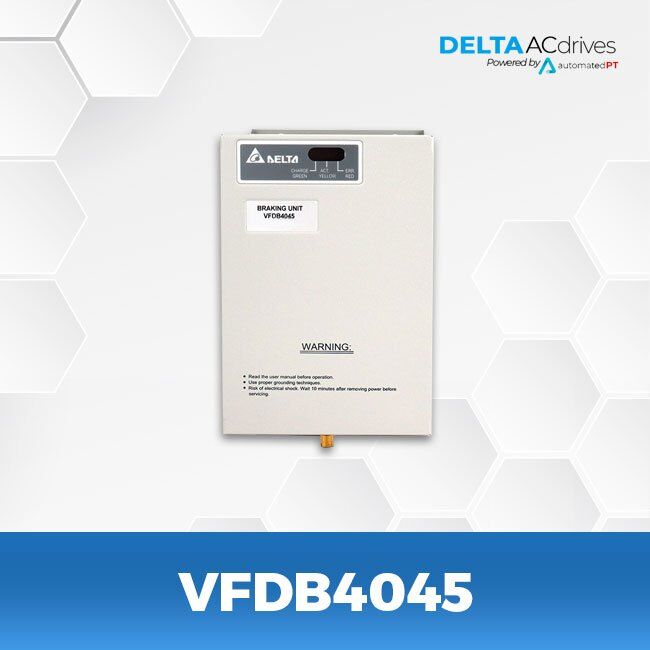

Delta VFDB4045 Brake Unit

$617.40

Lead time – 1-2 weeks

  • Compatible with 460V Delta VFDs
  • Max. Motor Capacity: 45 KW

SPECIFICATIONS

Model Name VFDB4045
Compatible VFD Voltage 460V Series
Max. Motor Capacity 45 KW
Max. Discharge Current 60 Amps
Continuous Discharge Current 18 Amps
Min. Equivalent Resistor 13.6 Ω

FILES

Instruction Sheet Delta VFDB4045 Instruction Sheet

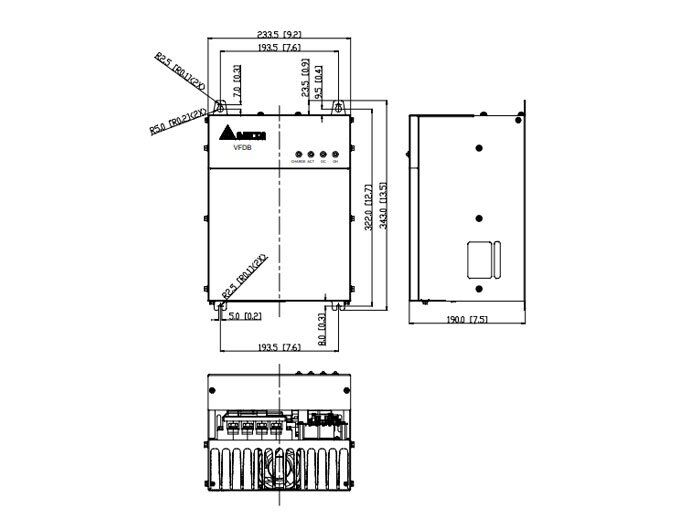

2D CAD Delta VFDB4045 2D CAD
3D CAD Delta VFDB4045 3D CAD  |  (View 3D File)

PRODUCT DESCRIPTION

VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
