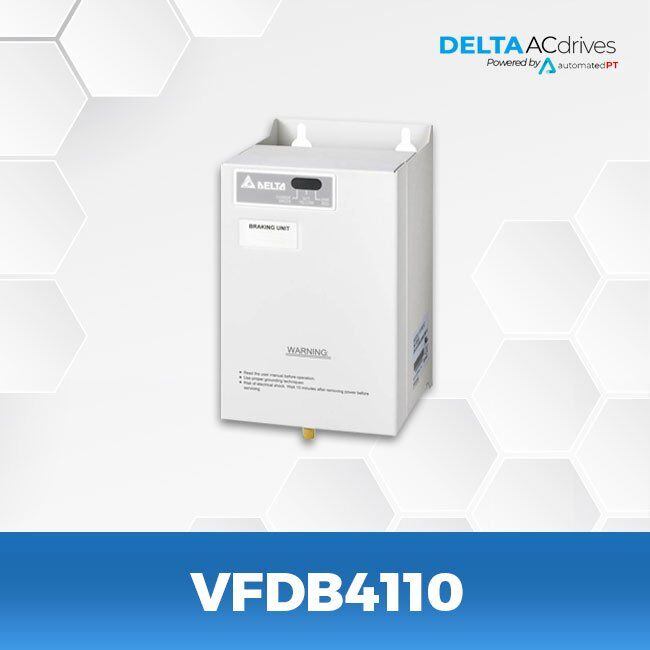

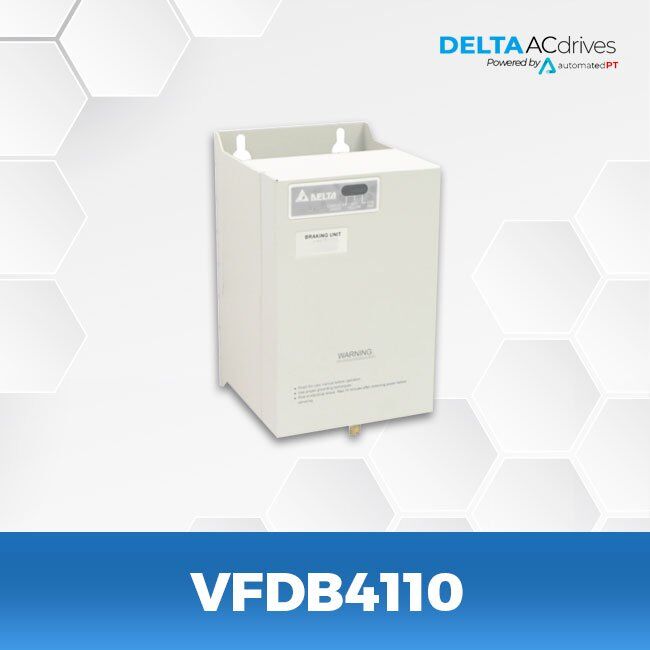

Delta VFDB4110 Brake Unit
$1,846.40
- Compatible with 460V Delta VFDs
- Max. Motor Capacity: 110 KW
SPECIFICATIONS
| Model Name | VFDB4110 |
| Compatible VFD Voltage | 460V Series |
| Max. Motor Capacity | 110 KW |
| Max. Discharge Current | 126 Amps |
| Continuous Discharge Current | 45 Amps |
| Min. Equivalent Resistor | 6 Ω |
FILES
 | |
| Instruction Sheet | Delta VFDB4110 Instruction Sheet |

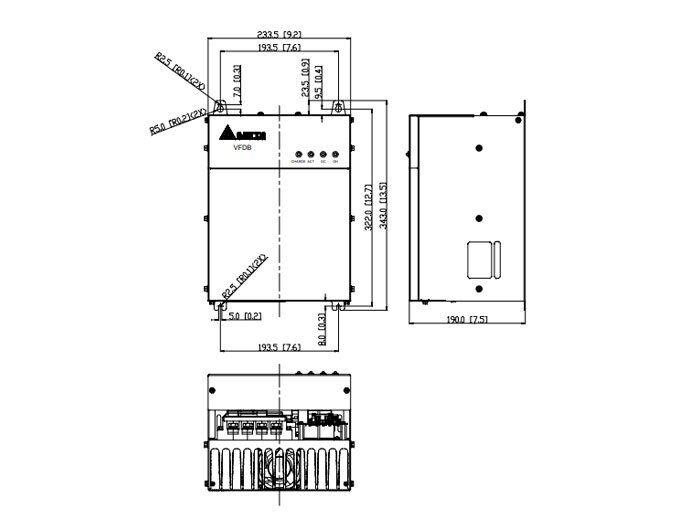

| 2D CAD | Delta VFDB4110 2D CAD |
| 3D CAD | Delta VFDB4110 3D CAD |
PRODUCT DESCRIPTION
VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
