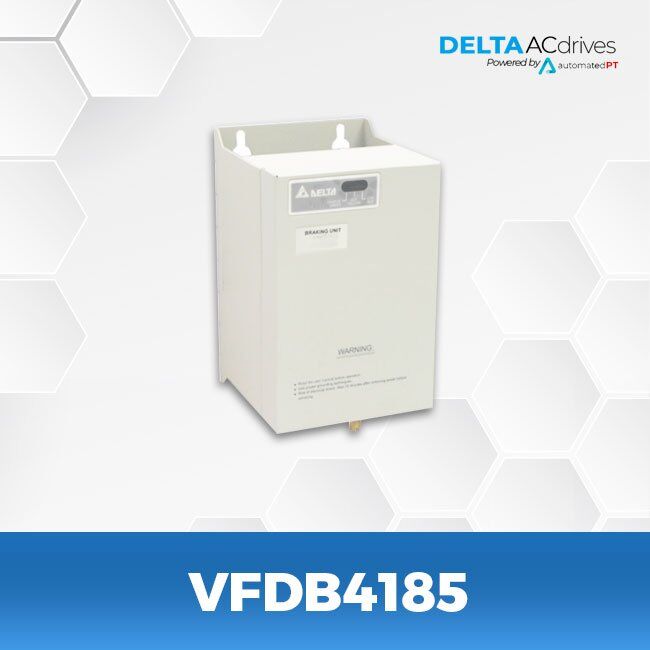

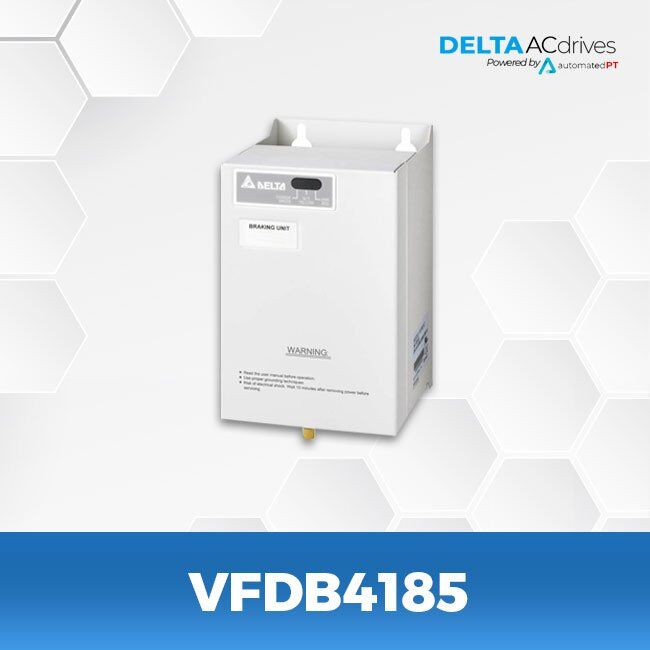

Delta VFDB4185 Brake Unit
$2,104.80
- Compatible with 460V Delta VFDs
- Max. Motor Capacity: 185 KW
SPECIFICATIONS
| Model Name | VFDB4185 |
| Compatible VFD Voltage | 460V Series |
| Max. Motor Capacity | 185 KW |
| Max. Discharge Current | 92 Amps |
| Continuous Discharge Current | 100 Amps |
| Min. Equivalent Resistor | 3.4 Ω |
FILES
 |
|
| Instruction Sheet | Delta VFDB4185 Instruction Sheet |

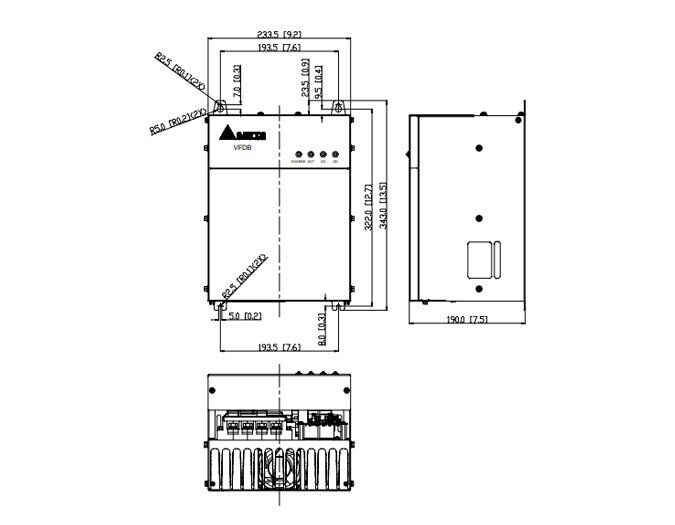

| 2D CAD | Delta VFDB4185 2D CAD |
| 3D CAD | Delta VFDB4185 3D CAD |
PRODUCT DESCRIPTION
VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
