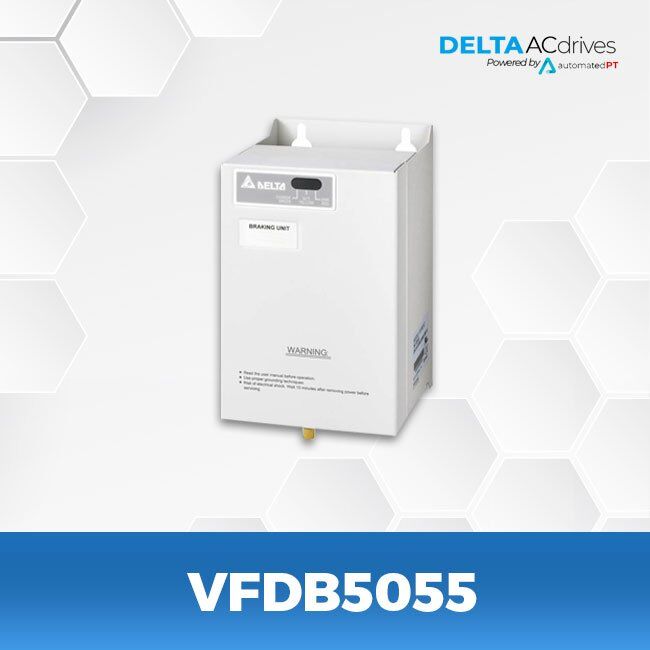

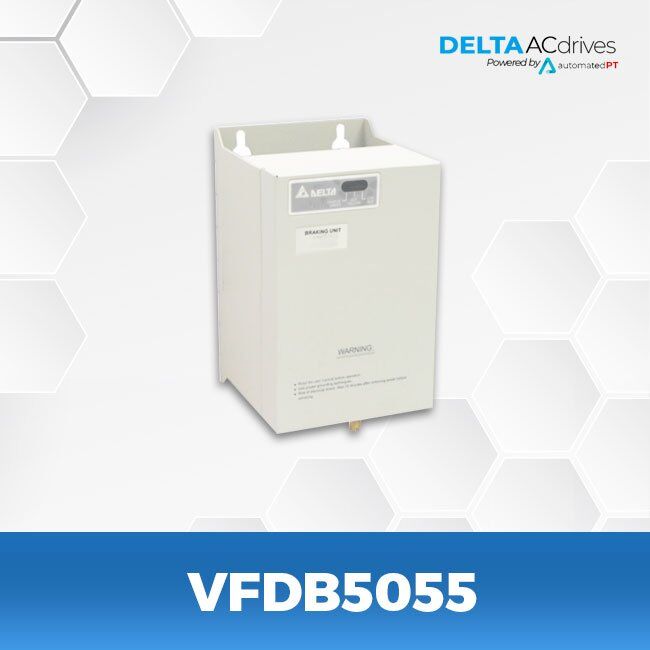

Delta VFDB5055 Brake Unit

$840.26

Lead time – 1-2 weeks

  • Compatible with 575V Delta VFDs
  • Max. Motor Capacity: 55 KW

SPECIFICATIONS

Model Name VFDB5055
Compatible VFD Voltage 575V Series
Max. Motor Capacity 55 KW
Max. Discharge Current 60 Amps
Continuous Discharge Current 20 Amps
Min. Equivalent Resistor 15.8 Ω

FILES

Instruction Sheet Delta VFDB5055 Instruction Sheet

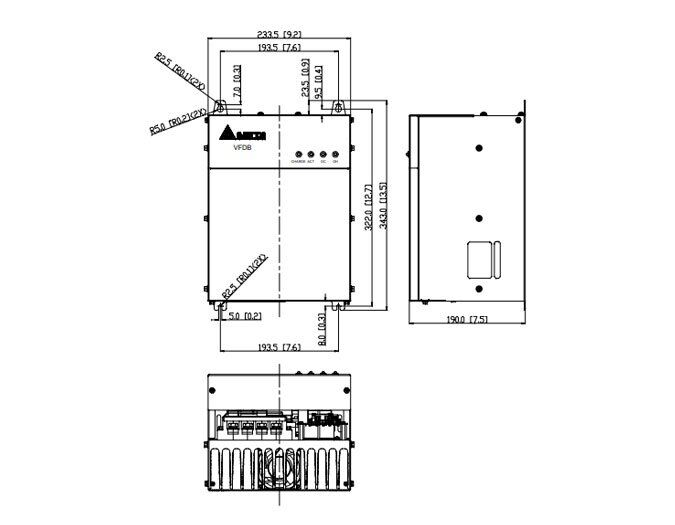

2D CAD Delta VFDB5055 2D CAD
3D CAD Delta VFDB5055 3D CAD  |  (View 3D File)

PRODUCT DESCRIPTION

VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
