Delta VFDB6160 Brake Unit

  • Compatible with 690V Delta VFDs
  • Max. Motor Capacity: 160 KW

SPECIFICATIONS

Model Name VFDB6160
Compatible VFD Voltage 690V Series
Max. Motor Capacity 160 KW
Max. Discharge Current 136 Amps
Continuous Discharge Current 86 Amps
Min. Equivalent Resistor 8.2 Ω

FILES

Instruction Sheet Delta VFDB6160 Instruction Sheet

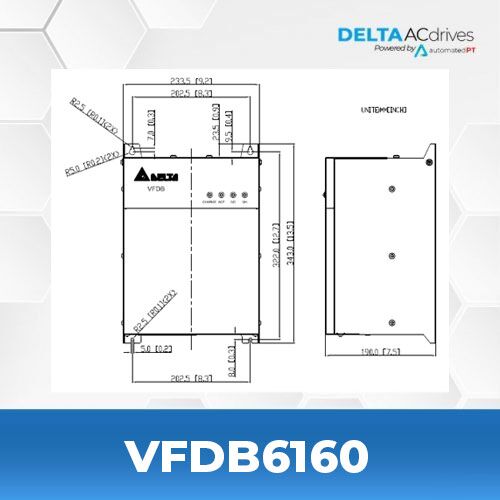

2D CAD Delta VFDB6160 2D CAD
3D CAD Delta VFDB6160 3D CAD

PRODUCT DESCRIPTION

VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
