Delta VFDB6200 Brake Unit
- Compatible with 690V Delta VFDs
- Max. Motor Capacity: 200 KW
SPECIFICATIONS
| Model Name | VFDB6200 |
| Compatible VFD Voltage | 690V Series |
| Max. Motor Capacity | 200 KW |
| Max. Discharge Current | 162 Amps |
| Continuous Discharge Current | 107 Amps |
| Min. Equivalent Resistor | 6.9 Ω |
FILES
 |
|
| Instruction Sheet | Delta VFDB6200 Instruction Sheet |

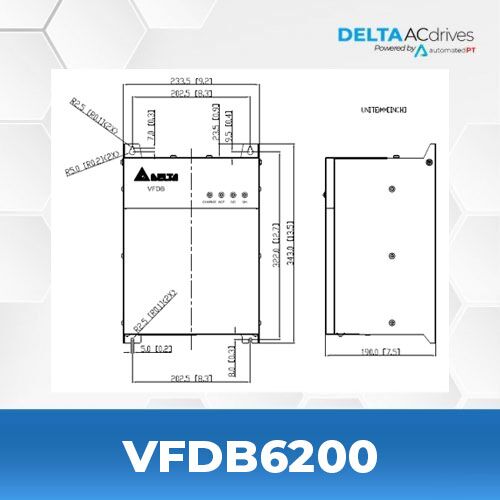

| 2D CAD | Delta VFDB6200 2D CAD |
| 3D CAD | Delta VFDB6200 3D CAD |
PRODUCT DESCRIPTION
VFDB braking units absorb motor regeneration energy when three-phase induction motor are slowed. With VFDB braking unit, excess energy will be dissipated by dedicated braking resistors. VFDB braking units need to be used in conjunction with BR series braking resistors to provide the optimum braking characteristics.
