Delta AS-F232 AS Series PLC Accessories

  • AS Series Compatible
  • Serial communication port
  • RS-232
  • Module Function: master or slave

PRODUCT SPECIFICATIONS

Model Name AS-F232
Compatible Series AS Series
Classification Function Cards
Function RS-232
IO Channel 1 Channel
IP Rating IP20

FILES

Catalog Delta AS Series Catalog

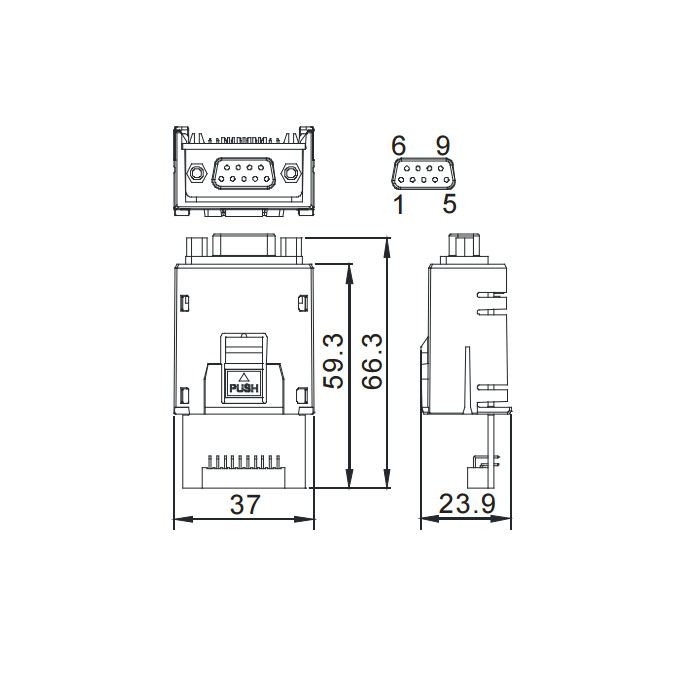

Dimensions Delta AS-F232 Dimensions
Instruction Sheet Delta AS-F232 Instruction Sheet
2D CAD Delta AS-F232 2D CAD
3D CAD Delta AS-F232 3D CAD  |  (View 3D File)
Cable Selection Guide Delta AS-F232 Cable Selection Guide

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
