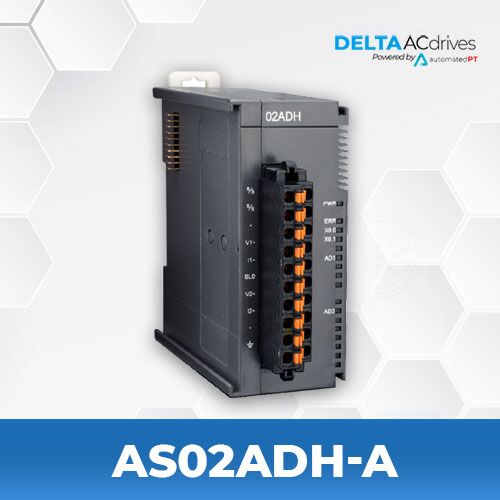

Delta AS02ADH-A AS Series PLC Accessories
- AS Series Compatible
- Hardware resolution: 16 bits
- 2 channels
- Removable Terminal Block
- Low-pass filter, band-pass filter
- Conversion time: 2 µs
- 0-10 V, 0/1-5V, -5 to +5 V, -10 to +10 V, 0/4-20 mA, -20 to +20 mA
PRODUCT SPECIFICATIONS
| Model Name | AS02ADH-A |
| Compatible Series | AS Series |
| Classification | High Speed Analog Input Modules |
| IO Channels | 2 channels |
| Type | Voltage / Current |
| Power Consumption | 1.2W / 2W |
| IP Rating | IP20 |
FILES
 |
|
| Catalog | Delta AS Series Catalog |

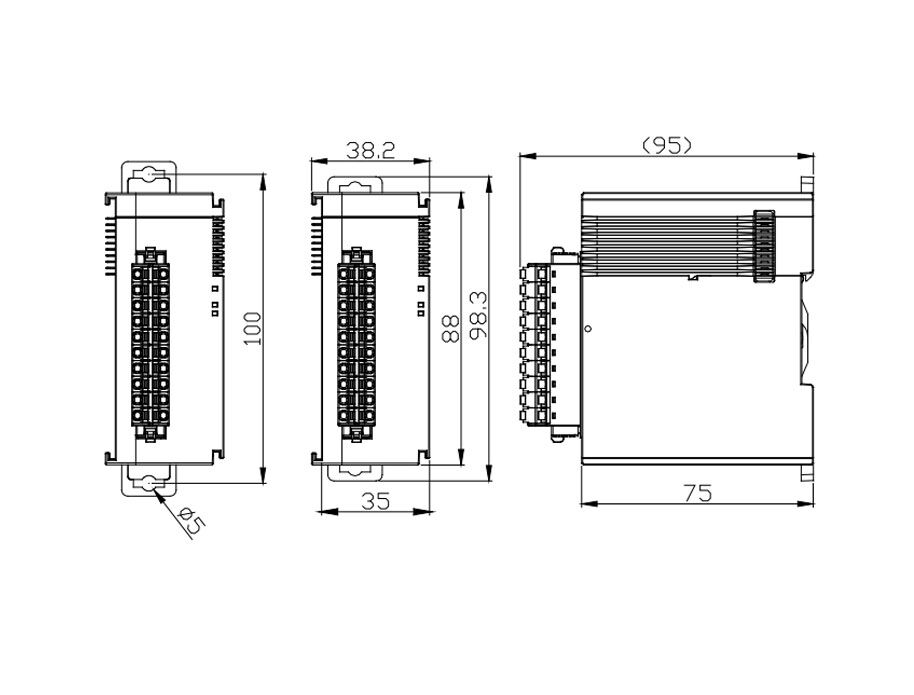

| Dimensions | Delta AS02ADH-A Dimensions |
| Instruction Sheet | Delta AS02ADH-A Instruction Sheet |
| 2D CAD | Delta AS02ADH-A 2D CAD |
| 3D CAD | Delta AS02ADH-A 3D CAD | (View 3D File) |
| UL Certificate | Delta AS02ADH-A UL Certificate |
