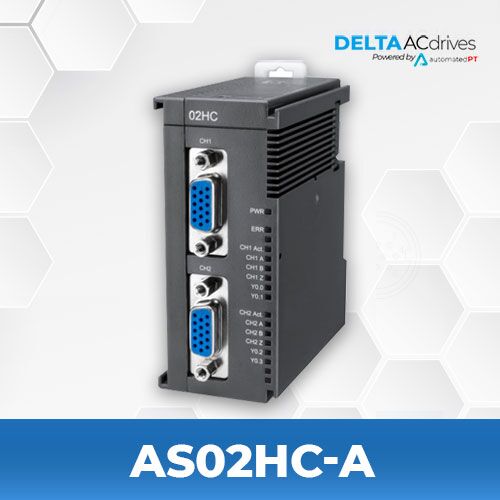

Delta AS02HC-A AS Series PLC Accessories

  • AS Series Compatible
  • 2 channels
  • pulse-input and SSI communication interface input
  • 4-point high-speed open collector output
  • 5 to 30 VDC

PRODUCT SPECIFICATIONS

Model Name AS02HC-A
Compatible Series AS Series
Classification High-Speed Counter Module
IO Channels 2 channels
Type Basic
Power Supply 5 to 30 VDC
Power Consumption 3.6 W
IP Rating IP20

FILES

Catalog Delta AS Series Catalog

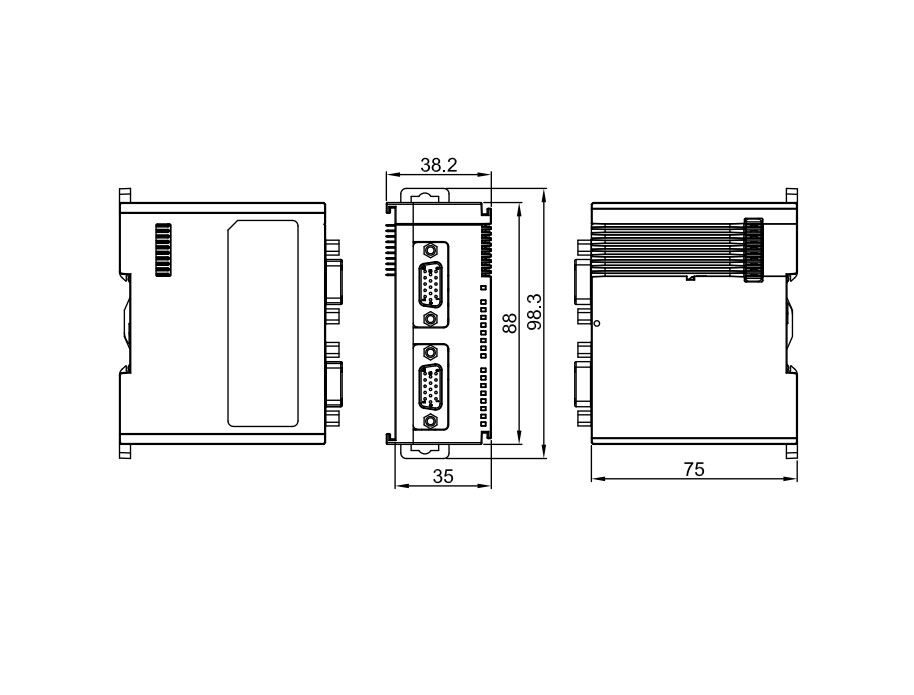

Dimensions Delta AS02HC-A Dimensions
Instruction Sheet Delta AS02HC-A Instruction Sheet
2D CAD Delta AS02HC-A 2D CAD
3D CAD Delta AS02HC-A 3D CAD  |  (View 3D File)
UL Certificate Delta AS02HC-A UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
