Delta AS04RTD-A AS Series PLC Accessories

$296.89

  • AS Series Compatible
  • 4 channels
  • 2-wire/3-wire RTD
  • Sensor Type: Pt100 / Ni100 / Pt1000 / Ni1000 / JPt100 / LGNi1000 / Cu50 / Cu100 / 0–300Ω / 0–3000Ω input impedance and Ni120
  • Resolution: 0.1°C/0.1°F (16 bits)
  • Conversion time: 200 ms/channel

PRODUCT SPECIFICATIONS

Model Name AS04RTD-A
Compatible Series AS Series
Classification Platinum resistance thermometer Module
IO Channels 4 channels
Type Basic
Power Consumption 2W / 1W
IP Rating IP20

FILES

Catalog Delta AS Series Catalog

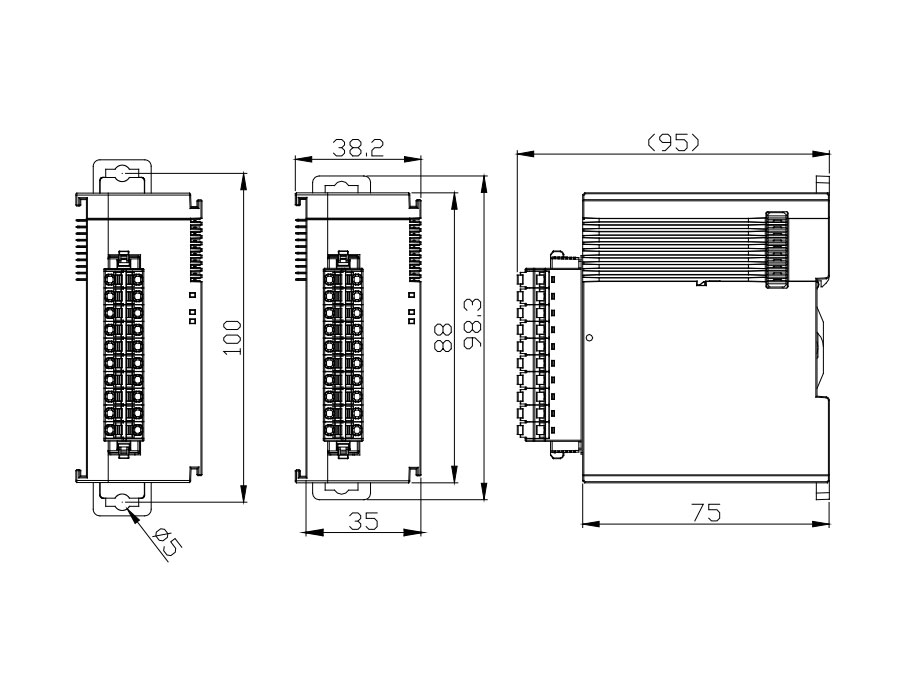

Dimensions Delta AS04RTD-A Dimensions
Instruction Sheet Delta AS04RTD-A Instruction Sheet
2D CAD Delta AS04RTD-A 2D CAD
3D CAD Delta AS04RTD-A 3D CAD  |  (View 3D File)
UL Certificate Delta AS04RTD-A UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
