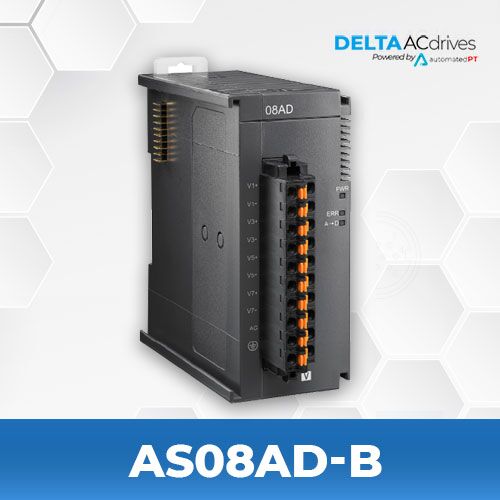

Delta AS08AD-B AS Series PLC Accessories

  • AS Series Compatible
  • Hardware resolution: 16 bits
  • 0–10 V, 0/1–5 V, -5 to +5 V, -10 to +10 V
  • 8 channels
  • Removable Terminal Block
  • Conversion time: 2 ms/channel

PRODUCT SPECIFICATIONS

Model Name AS08AD-B
Compatible Series AS Series
Classification Analog Input Modules
IO Channels 8 channels
Type Voltage
Power Consumption 1.2W / 2.5W
IP Rating IP20

FILES

Catalog Delta AS Series Catalog

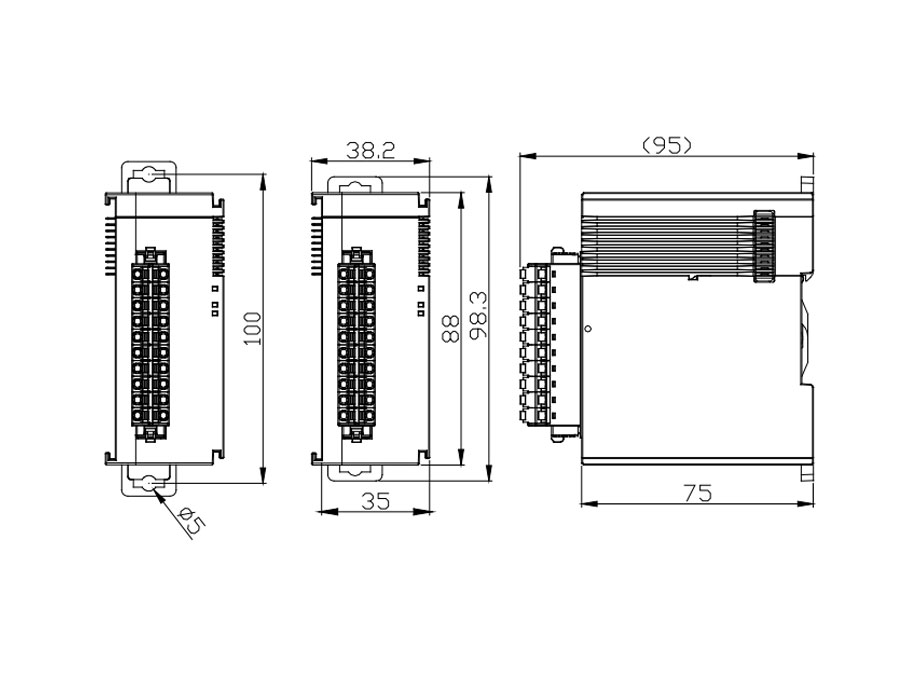

Dimensions Delta AS08AD-B Dimensions
Instruction Sheet Delta AS08AD-B Instruction Sheet
2D CAD Delta AS08AD-B 2D CAD
3D CAD Delta AS08AD-B 3D CAD  |  (View 3D File)
UL Certificate Delta AS08AD-B UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
