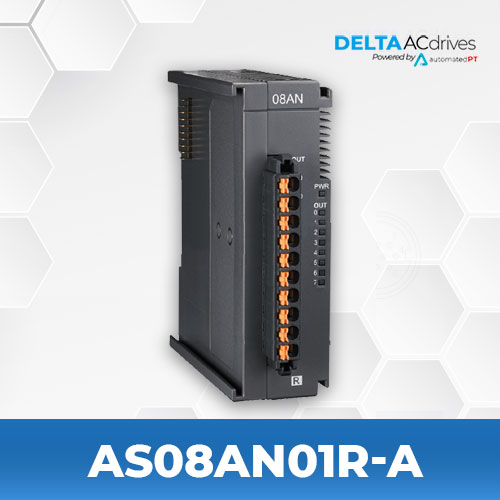

Delta AS08AN01R-A AS Series PLC Accessories

$137.70

Lead time – 1-2 weeks

  • AS Series Compatible
  • 10 to 240 VAC/5 to 24 VDC
  • 2 A/output, 8A/COM
  • 8 outputs
  • Spring-clamp Terminal Block

PRODUCT SPECIFICATIONS

Model Name AS08AN01R-A
Compatible Series AS Series
Classification Digital Output Modules
I/O Points 8 outputs
Function No input, 0.5 A transistor / 2 A relay output
Output Type Relay
Type Basic
Power Supply 10 to 240 VAC/5 to 24 VDC

FILES

Catalog Delta AS Series Catalog
Dimensions Delta AS08AN01R-A Dimensions
Instruction Sheet Delta AS08AN01R-A Instruction Sheet
2D CAD Delta AS08AN01R-A 2D CAD
3D CAD Delta AS08AN01R-A 3D CAD  |  (View 3D File)
UL Certificate Delta AS08AN01R-A UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
