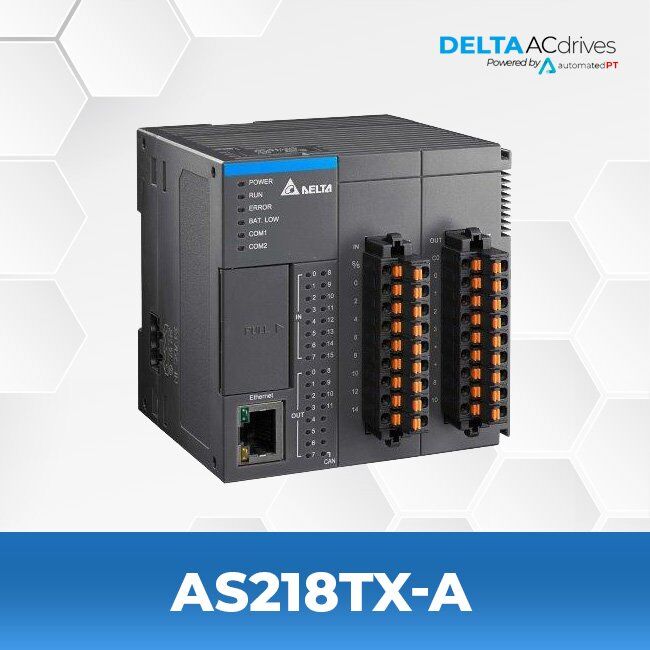

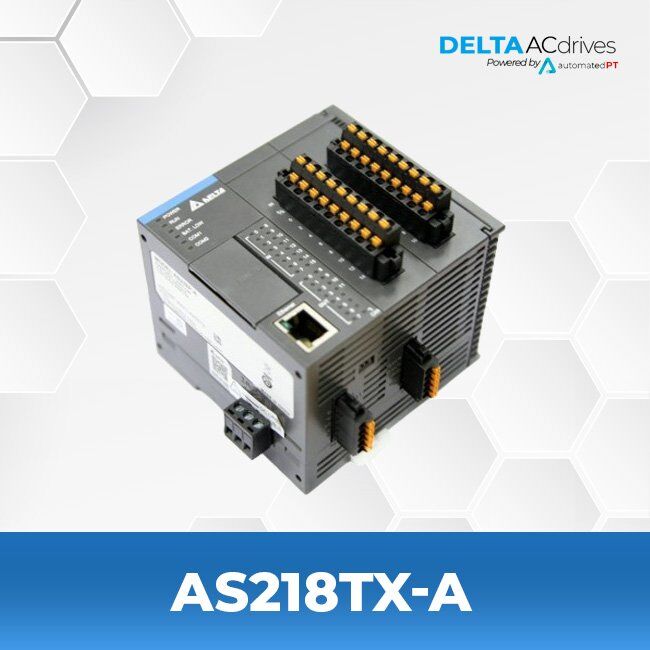

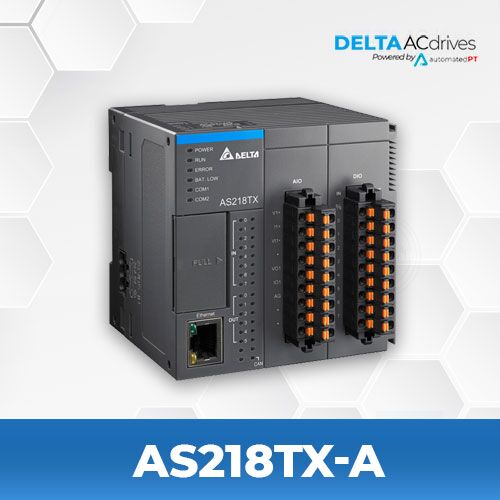

Delta AS218TX-A AS Series PLC

$596.93

  • Series: AS Series
  • 24 VDC Power Supply
  • 64k steps Program Capacity
  • 64k words Data Memory
  • 1024 Max Input/Output

PRODUCT SPECIFICATIONS

Model Name AS218TX-A
Series AS Series
Programming Capacity 64k steps
Memory Capacity 64k words
Built-in Communication Port USB, Ethernet, RS-485 x2, CANopen
Communication Protocol Modbus, Modbus TCP, EtherNet/IP, CANopen
Max. Extension Modules 32 modules
Programming Languages Ladder Diagram (LD), Structured Text (ST), Continuous Function Chart (CFC), Sequential Function Chart (SFC), C Language
CPU Built-in Inputs/Outputs 8 DI / 6 DO & 2 AI / 2 AO

FILES

Catalog Delta AS Series Catalog

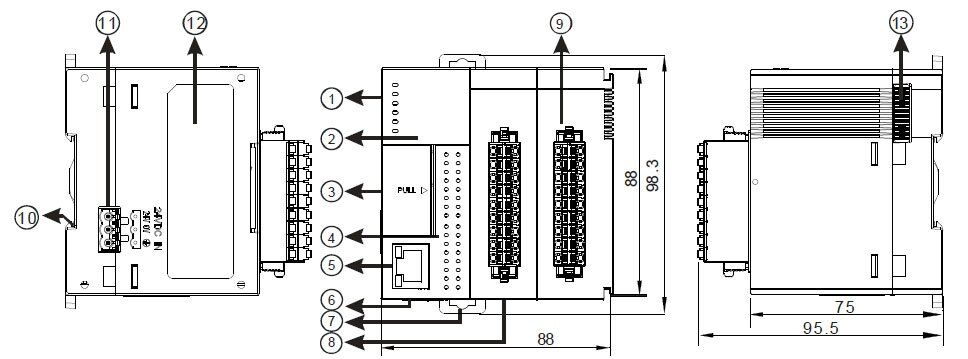

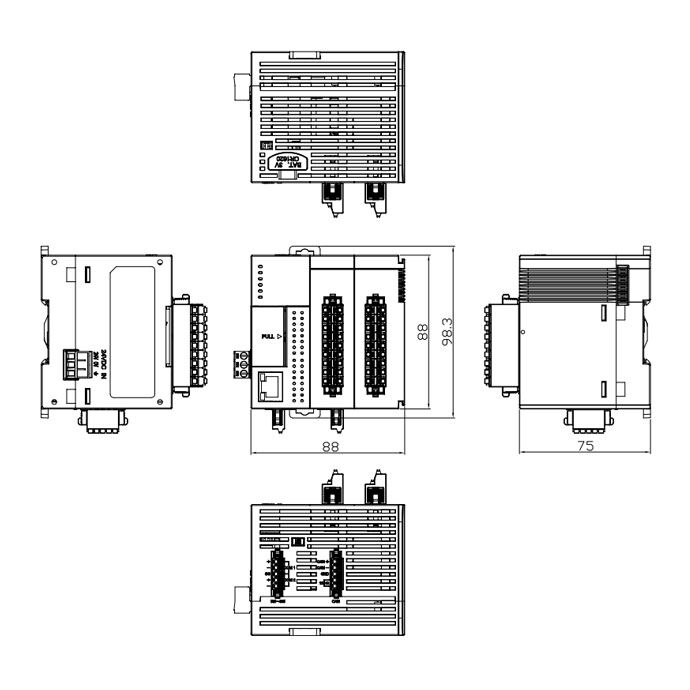

Dimensions Delta AS218TX-A Dimensions
Instruction Sheet Delta AS218TX-A Instruction Sheet
2D CAD Delta AS218TX-A 2D CAD
3D CAD Delta AS218TX-A 3D CAD
UL Certificate Delta AS218TX-A UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
