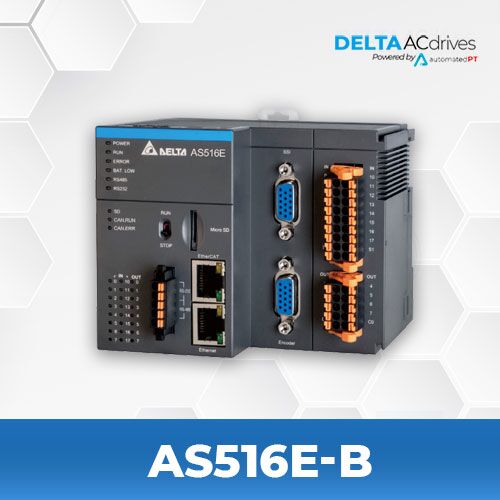

Delta AS516E-B AS Series PLC
- Series: AS Series
- 24 VDC Power Supply
- 20MB Program Capacity
- 20MB Data Memory
PRODUCT SPECIFICATIONS
| Model Name | AS516E-B |
| Series | AS Series |
| Programming Capacity | 20MB |
| Memory Capacity | 20MB |
| Built-in Communication Port | USB, Ethernet, RS232, RS485, EtherCAT, CANopen |
| Communication Protocol | Modbus, Modbus TCP, EtherNet/IP, EtherCAT, CANopen DS301 |
| Max. Extension Modules | 32 modules |
| Programming Languages | Ladder Diagram (LD), Structured Text (ST) |
| CPU Built-in Inputs/Outputs | 16 DI / 8 DO |
FILES
 |
|
| Catalog | Delta AS Series Catalog |
| Instruction Sheet | Delta AS516E-B Instruction Sheet |
| UL Certificate | Delta AS516E-B UL Certificate |
SOFTWARE
Register and download the DIA Studio to use DIA Designer to program and configure your drives.
Know More
SERIES DESCRIPTION
The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.
The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.
Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates
