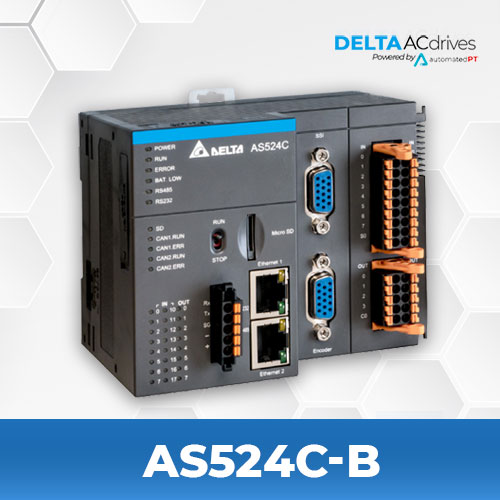

Delta AS524C-B AS Series PLC

  • Series: AS Series
  • 24 VDC Power Supply
  • 20MB Program Capacity
  • 20MB Data Memory

PRODUCT SPECIFICATIONS

Model Name AS524C-B
Series AS Series
Programming Capacity 20MB
Memory Capacity 20MB
Built-in Communication Port USB, Ethernet x2, RS232, RS485, CAN Motion, CANopen
Communication Protocol Modbus, Modbus TCP, EtherNet/IP, CANopen DS301 & DS402
Max. Extension Modules 32 modules
Programming Languages Ladder Diagram (LD), Structured Text (ST)
CPU Built-in Inputs/Outputs 16 DI / 8 DO

FILES

Catalog Delta AS Series Catalog
Instruction Sheet Delta AS524C-B Instruction Sheet
UL Certificate Delta AS524C-B UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

SERIES DESCRIPTION

The AS Series Compact Modular Mid-range PLC is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self developed 32-bit SoC CPUs for enhanced execution speed (40k steps / ms) and supports up to 32 extension modules or up to 1,024 inputs / outputs. It is widely used in diverse automated equipment such as for electronics manufacturing, labeling, food packaging, and textile machines.

The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission.

Features
Advanced CPU Performance | Optimized Execution Efficiency | Optimized I/O updates

  • High Efficiency Computing
  • Accurate Axis Control
  • AS500 Motion Control Solution
  • AX-3 CODESYS Control Solution
  • AS Series Industrial Network Solution
