SPECIFICATIONS

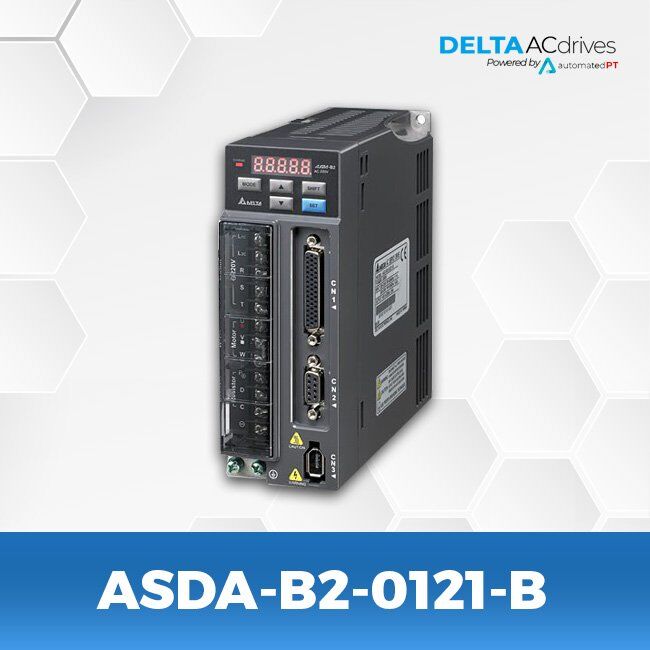

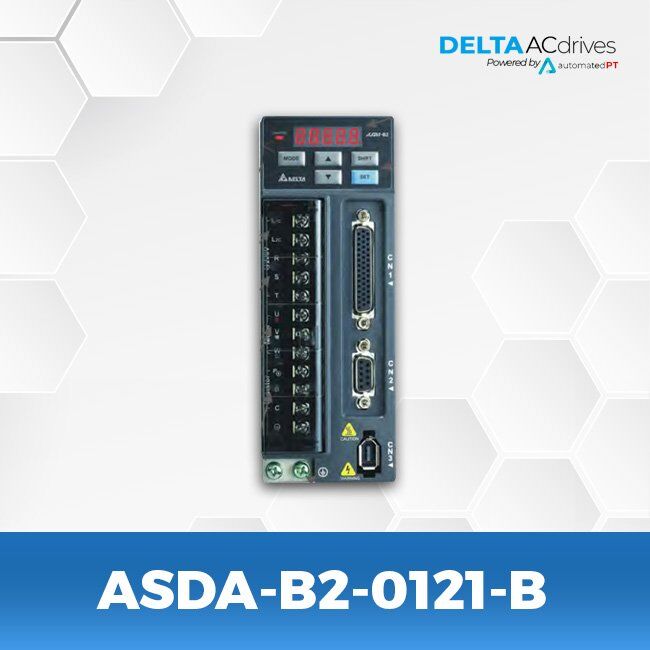

Model Name | ASD-B2-0121-B B2 |
Series | B2 Servo Drive |
Phase | 1/3 PH |
Voltage | 220 VAC |
Rated Output Power | 0.1 KW |
Continuous Output Current | 0.9 Arms |
Instant Max Output Current | 2.70 Arms |
CATALOG & MANUALS
Catalog | Delta ASDA B2 Servo Drive Catalog | |
Users Manual | Delta ASDA B2 Servo Drive Users Manual |
SERIES DESCRIPTION

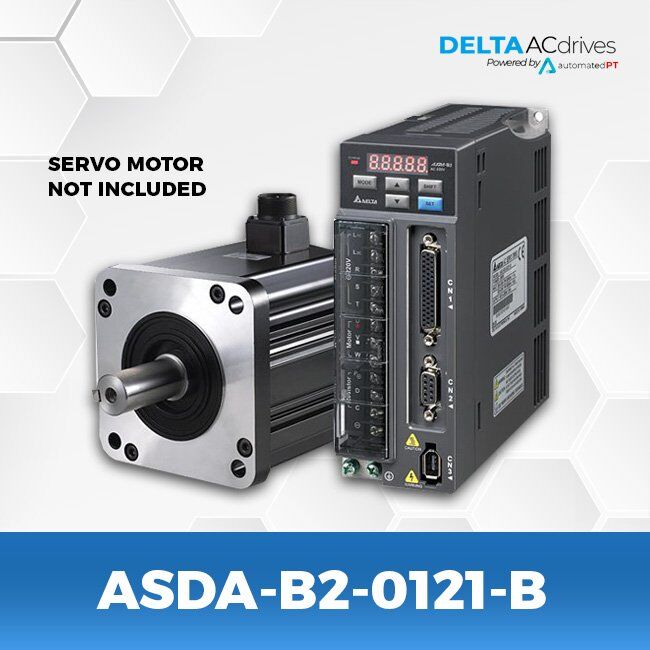

The high-performance, cost-effective ASDA-B2 Series servo motors and drives meet the requirements for general-purpose machine control applications in the industrial automation market and enhance the competitive advantage of servo systems.
Features Include
Implements High Precision Positioning Control
► ASDA-B2 Series servo drive supports 20-bit and 17-bit encoders. It satisfies the demand for high-precision positioning control and stable operation with lower speed.
► Applying the encoder with a higher resolution can reduce the cogging torque and improve the motor’s precision.
Satisfies a Variety of Industry Requirements
► Three control modes available: Built-in position, Speed, and Torque. (Speed and Torque mode can be controlled by internal parameters or analog voltage.)
► High-speed differential command (up to 4Mpps) for high precision positioning control.
Offers Easy-To-Install Solution For Simple Start-Up
► Servo motor provides brake, oil seal, and other optional configurations for different applications.
► Separated power supply for main circuit and control circuit makes it easier to maintain the mechanism.
Fulfills Easy-To-Use Requirements For Versatile Operation
► ASDA-Soft configuration software (tuning software) is provided to meet performance requirements quickly.
► Easy-to-use digital keypad is ideal for setting parameters and enables users to directly monitor the servo drive and servo motor.
