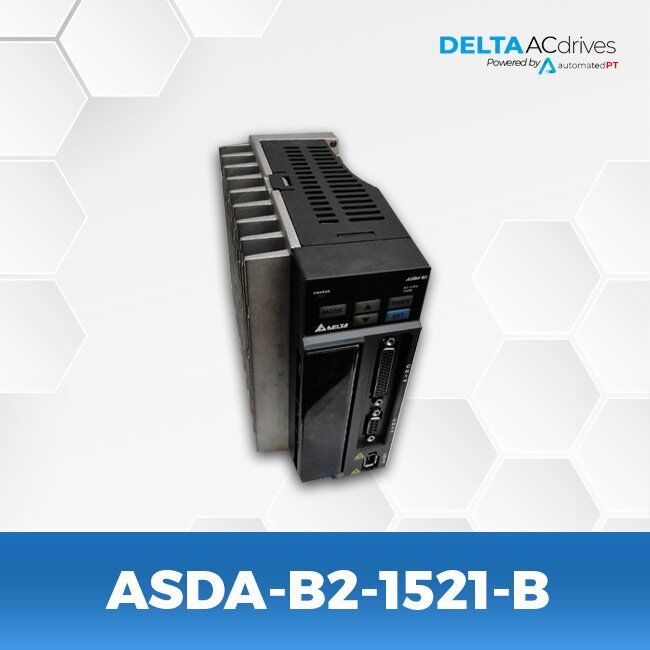

Delta ASD-B2-1521-B B2 Servo Drive
$994.50
- Series: B2 Servo Drive
- 1500 Watts
- 220 Volts Input
- 1/3 Phase (PH)
- 8.3 Arms Output Current
SPECIFICATIONS
| Model Name | ASD-B2-1521-B B2 |
| Series | B2 Servo Drive |
| Phase | 1/3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 1.5 KW |
| Continuous Output Current | 8.3 Arms |
| Instant Max Output Current | 24.90 Arms |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA B2 Servo Drive Catalog | |
| Users Manual | Delta ASDA B2 Servo Drive Users Manual |
SERIES DESCRIPTION
The high-performance, cost-effective ASDA-B2 Series servo motors and drives meet the requirements for general-purpose machine control applications in the industrial automation market and enhance the competitive advantage of servo systems.
Features Include
Implements High Precision Positioning Control
► ASDA-B2 Series servo drive supports 20-bit and 17-bit encoders. It satisfies the demand for high-precision positioning control and stable operation with lower speed.
► Applying the encoder with a higher resolution can reduce the cogging torque and improve the motor’s precision.
Satisfies a Variety of Industry Requirements
► Three control modes available: Built-in position, Speed, and Torque. (Speed and Torque mode can be controlled by internal parameters or analog voltage.)
► High-speed differential command (up to 4Mpps) for high precision positioning control.
Offers Easy-To-Install Solution For Simple Start-Up
► Servo motor provides brake, oil seal, and other optional configurations for different applications.
► Separated power supply for main circuit and control circuit makes it easier to maintain the mechanism.
Fulfills Easy-To-Use Requirements For Versatile Operation
► ASDA-Soft configuration software (tuning software) is provided to meet performance requirements quickly.
► Easy-to-use digital keypad is ideal for setting parameters and enables users to directly monitor the servo drive and servo motor.
