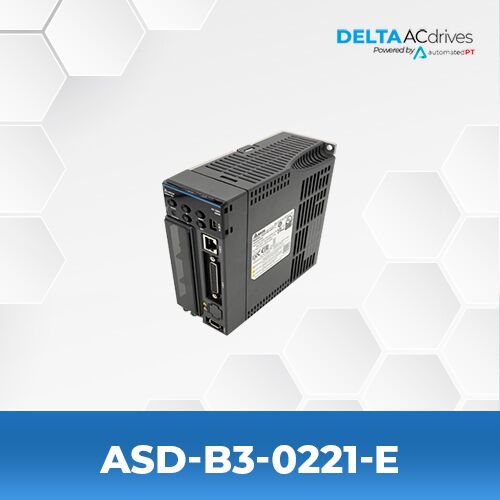

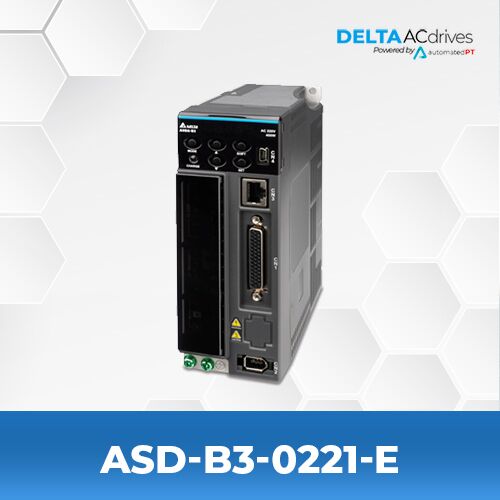

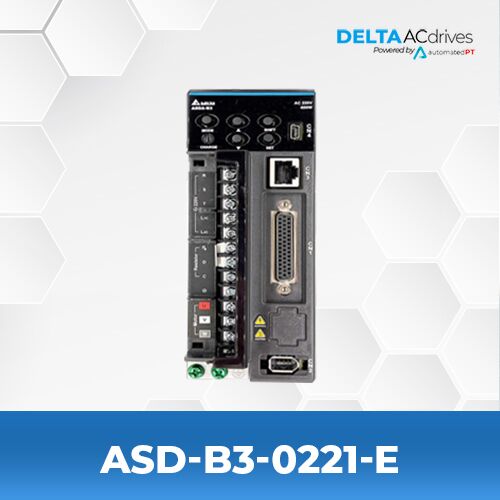

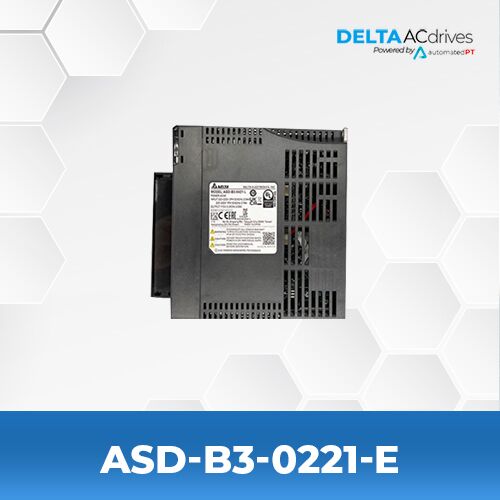

Delta ASD-B3-0221-E Servo Drive

  • Series: B3 Servo Drive
  • Phase1/3 Phase (PH)
  • 200 Watts
  • 1.55 Arms Output Current
  • 220 VAC


SPECIFICATIONS

Model Name ASD-B3-0221-E
Series B3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 200 watts
Continuous Output Current 1.55 Arms
Instant Max Output Current 7.07 Arms
Model Type PR Mode, Analog Voltage Control, EtherCAT

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

DELTA ASD-B3-0221-E SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECM-A3L-CY0602CS1 0.2 kW 0.64 (N-m)
ECM-A3L-CY0602DS1 0.2 kW 0.64 (N-m)
ECM-A3L-CY0602PS1 0.2 kW 0.64 (N-m)
ECM-A3L-CY0602RS1 0.2 kW 0.64 (N-m)
ECM-A3L-CY0602SS1 0.2 kW 0.64 (N-m)
ECM-A3L-CY0602QS1 0.2 kW 0.64 (N-m)
ECM-A3L-C10602CS1 0.2 kW 0.64 (N-m)
ECM-A3L-C10602DS1 0.2 kW 0.64 (N-m)
ECM-A3L-C10602PS1 0.2 kW 0.64 (N-m)
ECM-A3L-C10602RS1 0.2 kW 0.64 (N-m)
ECM-A3L-C10602SS1 0.2 kW 0.64 (N-m)
ECM-A3L-C10602QS1 0.2 kW 0.64 (N-m)
ECM-A3L-CG0602CS1 0.2 kW 0.64 (N-m)
ECM-A3L-CG0602DS1 0.2 kW 0.64 (N-m)
ECM-A3L-CG0602PS1 0.2 kW 0.64 (N-m)
ECM-A3L-CG0602RS1 0.2 kW 0.64 (N-m)
ECM-A3L-CG0602SS1 0.2 kW 0.64 (N-m)
ECM-A3L-CG0602QS1 0.2 kW 0.64 (N-m)
ECM-A3L-C20602CS1 0.2 kW 0.64 (N-m)
ECM-A3L-C20602DS1 0.2 kW 0.64 (N-m)
ECM-A3L-C20602PS1 0.2 kW 0.64 (N-m)
ECM-A3L-C20602RS1 0.2 kW 0.64 (N-m)
ECM-A3L-C20602SS1 0.2 kW 0.64 (N-m)
ECM-A3L-C20602QS1 0.2 kW 0.64 (N-m)
ECM-A3L-CA0602CS1 0.2 kW 0.64 (N-m)
ECM-A3L-CA0602DS1 0.2 kW 0.64 (N-m)
ECM-A3L-CA0602PS1 0.2 kW 0.64 (N-m)
ECM-A3L-CA0602RS1 0.2 kW 0.64 (N-m)
ECM-A3L-CA0602SS1 0.2 kW 0.64 (N-m)
ECM-A3L-CA0602QS1 0.2 kW 0.64 (N-m)
ECM-A3H-CY0602CS1 0.2 kW 0.64 (N-m)
ECM-A3H-CY0602DS1 0.2 kW 0.64 (N-m)
ECM-A3H-CY0602PS1 0.2 kW 0.64 (N-m)
ECM-A3H-CY0602QS1 0.2 kW 0.64 (N-m)
ECM-A3H-CY0602RS1 0.2 kW 0.64 (N-m)
ECM-A3H-CY0602SS1 0.2 kW 0.64 (N-m)
ECM-A3H-C10602CS1 0.2 kW 0.64 (N-m)
ECM-A3H-C10602DS1 0.2 kW 0.64 (N-m)
ECM-A3H-C10602PS1 0.2 kW 0.64 (N-m)
ECM-A3H-C10602QS1 0.2 kW 0.64 (N-m)
ECM-A3H-C10602RS1 0.2 kW 0.64 (N-m)
ECM-A3H-C10602SS1 0.2 kW 0.64 (N-m)
ECM-A3H-CG0602CS1 0.2 kW 0.64 (N-m)
ECM-A3H-CG0602DS1 0.2 kW 0.64 (N-m)
ECM-A3H-CG0602PS1 0.2 kW 0.64 (N-m)
ECM-A3H-CG0602QS1 0.2 kW 0.64 (N-m)
ECM-A3H-CG0602RS1 0.2 kW 0.64 (N-m)
ECM-A3H-CG0602SS1 0.2 kW 0.64 (N-m)
ECM-A3H-C20602CS1 0.2 kW 0.64 (N-m)
ECM-A3H-C20602DS1 0.2 kW 0.64 (N-m)
ECM-A3H-C20602PS1 0.2 kW 0.64 (N-m)
ECM-A3H-C20602QS1 0.2 kW 0.64 (N-m)
ECM-A3H-C20602RS1 0.2 kW 0.64 (N-m)
ECM-A3H-C20602SS1 0.2 kW 0.64 (N-m)
ECM-A3H-CA0602CS1 0.2 kW 0.64 (N-m)
ECM-A3H-CA0602DS1 0.2 kW 0.64 (N-m)
ECM-A3H-CA0602PS1 0.2 kW 0.64 (N-m)
ECM-A3H-CA0602QS1 0.2 kW 0.64 (N-m)
ECM-A3H-CA0602RS1 0.2 kW 0.64 (N-m)
ECM-A3H-CA0602SS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602RS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602RJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602CS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602DS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602PS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602QS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602CJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602DJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602PJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602QJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602SS1 0.2 kW 0.64 (N-m)
ECM-B3M-CA0602SJ1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602RS1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602RJ1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602CS1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602DS1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602PS1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602QS1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602CJ1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602DJ1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602PJ1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602QJ1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602SS1 0.2 kW 0.64 (N-m)
ECM-B3M-C20602SJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602RS1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602RJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602CS1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602DS1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602PS1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602QS1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602CJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602DJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602PJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602QJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602SS1 0.2 kW 0.64 (N-m)
ECM-B3M-CP0602SJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602RS1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602RJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602CS1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602DS1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602PS1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602QS1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602CJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602DJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602PJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602QJ1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602SS1 0.2 kW 0.64 (N-m)
ECM-B3M-CM0602SJ1 0.2 kW 0.64 (N-m)
Model Number Rated Output Power Rated Torque
