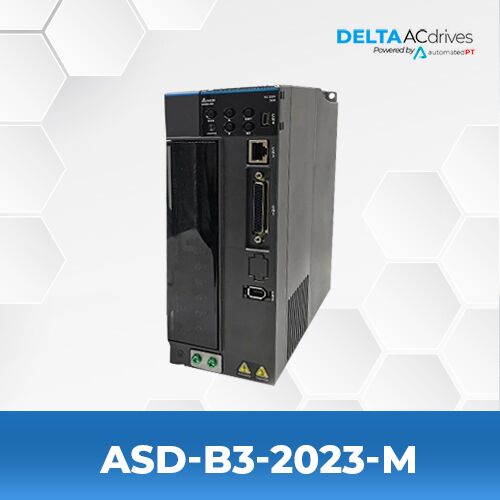

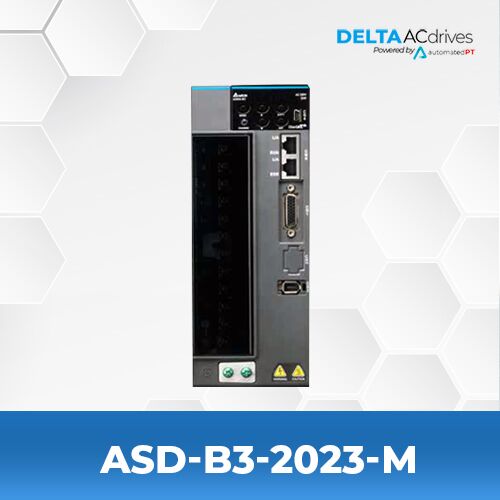

Delta ASD-B3-2023-M Servo Drive

  • Series: B3 Servo Drive
  • Phase3 Phase (PH)
  • 2 Kilowatts
  • 13.4 Arms Output Current
  • 220 VAC


SPECIFICATIONS

Model Name ASD-B3-2023-M
Series B3 Servo Drive
Phase 3 PH
Voltage 220 VAC
Rated Output Power 2 Kilowatts
Continuous Output Current 13.4 Arms
Instant Max Output Current 38.3 Arms
Model Type PR Mode, Analog Voltage Control, CANopen

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

DELTA ASD-B3-2023-M SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECM-B3M-EA1320RS1 2 kW 9.55 (N-m)
ECM-B3M-EA1320RJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1320CS1 2 kW 9.55 (N-m)
ECM-B3M-EA1320DS1 2 kW 9.55 (N-m)
ECM-B3M-EA1320PS1 2 kW 9.55 (N-m)
ECM-B3M-EA1320QS1 2 kW 9.55 (N-m)
ECM-B3M-EA1320CJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1320DJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1320PJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1320QJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1320SS1 2 kW 9.55 (N-m)
ECM-B3M-EA1320SJ1 2 kW 9.55 (N-m)
ECM-B3M-E21320RS1 2 kW 9.55 (N-m)
ECM-B3M-E21320RJ1 2 kW 9.55 (N-m)
ECM-B3M-E21320CS1 2 kW 9.55 (N-m)
ECM-B3M-E21320DS1 2 kW 9.55 (N-m)
ECM-B3M-E21320PS1 2 kW 9.55 (N-m)
ECM-B3M-E21320QS1 2 kW 9.55 (N-m)
ECM-B3M-E21320CJ1 2 kW 9.55 (N-m)
ECM-B3M-E21320DJ1 2 kW 9.55 (N-m)
ECM-B3M-E21320PJ1 2 kW 9.55 (N-m)
ECM-B3M-E21320QJ1 2 kW 9.55 (N-m)
ECM-B3M-E21320SS1 2 kW 9.55 (N-m)
ECM-B3M-E21320SJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1320RS1 2 kW 9.55 (N-m)
ECM-B3M-EP1320RJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1320CS1 2 kW 9.55 (N-m)
ECM-B3M-EP1320DS1 2 kW 9.55 (N-m)
ECM-B3M-EP1320PS1 2 kW 9.55 (N-m)
ECM-B3M-EP1320QS1 2 kW 9.55 (N-m)
ECM-B3M-EP1320CJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1320DJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1320PJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1320QJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1320SS1 2 kW 9.55 (N-m)
ECM-B3M-EP1320SJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1320RS1 2 kW 9.55 (N-m)
ECM-B3M-EM1320RJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1320CS1 2 kW 9.55 (N-m)
ECM-B3M-EM1320DS1 2 kW 9.55 (N-m)
ECM-B3M-EM1320PS1 2 kW 9.55 (N-m)
ECM-B3M-EM1320QS1 2 kW 9.55 (N-m)
ECM-B3M-EM1320CJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1320DJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1320PJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1320QJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1320SS1 2 kW 9.55 (N-m)
ECM-B3M-EM1320SJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1820RS1 2 kW 9.55 (N-m)
ECM-B3M-EA1820RJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1820CS1 2 kW 9.55 (N-m)
ECM-B3M-EA1820DS1 2 kW 9.55 (N-m)
ECM-B3M-EA1820PS1 2 kW 9.55 (N-m)
ECM-B3M-EA1820QS1 2 kW 9.55 (N-m)
ECM-B3M-EA1820CJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1820DJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1820PJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1820QJ1 2 kW 9.55 (N-m)
ECM-B3M-EA1820SS1 2 kW 9.55 (N-m)
ECM-B3M-EA1820SJ1 2 kW 9.55 (N-m)
ECM-B3M-E21820RS1 2 kW 9.55 (N-m)
ECM-B3M-E21820RJ1 2 kW 9.55 (N-m)
ECM-B3M-E21820CS1 2 kW 9.55 (N-m)
ECM-B3M-E21820DS1 2 kW 9.55 (N-m)
ECM-B3M-E21820PS1 2 kW 9.55 (N-m)
ECM-B3M-E21820QS1 2 kW 9.55 (N-m)
ECM-B3M-E21820CJ1 2 kW 9.55 (N-m)
ECM-B3M-E21820DJ1 2 kW 9.55 (N-m)
ECM-B3M-E21820PJ1 2 kW 9.55 (N-m)
ECM-B3M-E21820QJ1 2 kW 9.55 (N-m)
ECM-B3M-E21820SS1 2 kW 9.55 (N-m)
ECM-B3M-E21820SJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1820RS1 2 kW 9.55 (N-m)
ECM-B3M-EP1820RJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1820CS1 2 kW 9.55 (N-m)
ECM-B3M-EP1820DS1 2 kW 9.55 (N-m)
ECM-B3M-EP1820PS1 2 kW 9.55 (N-m)
ECM-B3M-EP1820QS1 2 kW 9.55 (N-m)
ECM-B3M-EP1820CJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1820DJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1820PJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1820QJ1 2 kW 9.55 (N-m)
ECM-B3M-EP1820SS1 2 kW 9.55 (N-m)
ECM-B3M-EP1820SJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1820RS1 2 kW 9.55 (N-m)
ECM-B3M-EM1820RJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1820CS1 2 kW 9.55 (N-m)
ECM-B3M-EM1820DS1 2 kW 9.55 (N-m)
ECM-B3M-EM1820PS1 2 kW 9.55 (N-m)
ECM-B3M-EM1820QS1 2 kW 9.55 (N-m)
ECM-B3M-EM1820CJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1820DJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1820PJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1820QJ1 2 kW 9.55 (N-m)
ECM-B3M-EM1820SS1 2 kW 9.55 (N-m)
ECM-B3M-EM1820SJ1 2 kW 9.55 (N-m)
