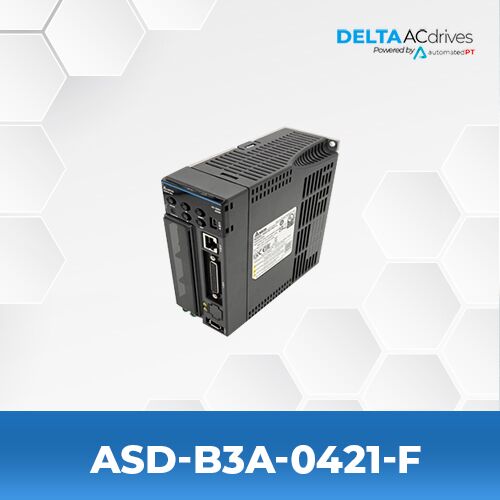

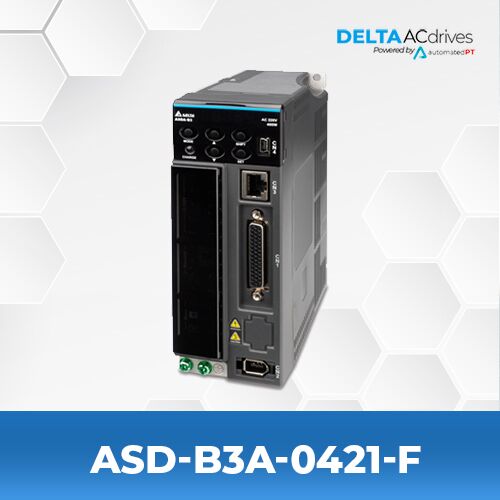

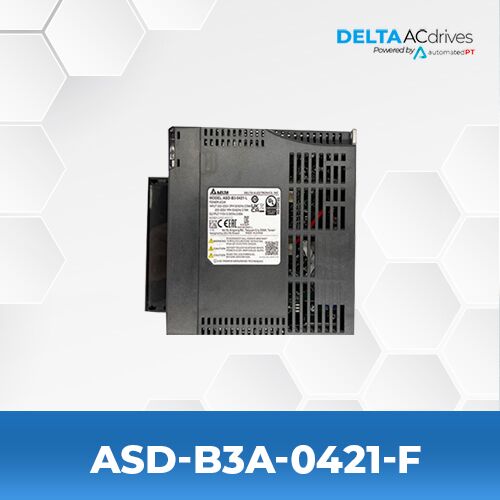

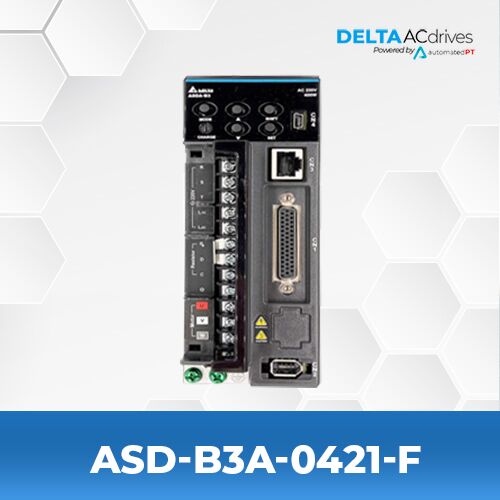

Delta ASD-B3A-0421-F Servo Drive

  • Series: B3 Servo Drive
  • Phase1/3 Phase (PH)
  • 400 Watts
  • 2.65 Arms Output Current
  • 220 VAC


SPECIFICATIONS

Model Name ASD-B3A-0421-F
Series B3 Servo Drive
Phase 1/3 PH
Voltage 220 VAC
Rated Output Power 400 watts
Continuous Output Current 2.65 Arms
Instant Max Output Current 10.6 Arms
Model Type PT Mode Pulse Input, PR Mode, Analog Voltage Control, DMCNET, STO

CATALOG & MANUALS

Catalog Delta ASDA B3 Servo Drive Catalog
Users Manual Delta ASDA B3 Servo Drive Catalog Users Manual

SERIES DESCRIPTION

ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.

Features Include

  • 3.1 kHz Bandwith
  • 24-bit encoder
  • 6000 r/min motor support
  • Closed loop status control
  • Software supporting vibration suppression, auto-tuning, graphical configuration
  • STO (Safe Torque Off)
  • DC Bus Sharing
  • Smaller drive and motors compared to B2

DELTA ASD-B3A-0421-F SERVO DRIVE COMPATIBLE MOTORS

Model Number Rated Output Power Rated Torque
ECM-A3H-CY0604CS1 0.4 kW 1.27 (N-m)
ECM-A3H-CY0604DS1 0.4 kW 1.27 (N-m)
ECM-A3H-CY0604PS1 0.4 kW 1.27 (N-m)
ECM-A3H-CY0604QS1 0.4 kW 1.27 (N-m)
ECM-A3H-CY0604RS1 0.4 kW 1.27 (N-m)
ECM-A3H-CY0604SS1 0.4 kW 1.27 (N-m)
ECM-A3H-C10604CS1 0.4 kW 1.27 (N-m)
ECM-A3H-C10604DS1 0.4 kW 1.27 (N-m)
ECM-A3H-C10604PS1 0.4 kW 1.27 (N-m)
ECM-A3H-C10604QS1 0.4 kW 1.27 (N-m)
ECM-A3H-C10604RS1 0.4 kW 1.27 (N-m)
ECM-A3H-C10604SS1 0.4 kW 1.27 (N-m)
ECM-A3H-CG0604CS1 0.4 kW 1.27 (N-m)
ECM-A3H-CG0604DS1 0.4 kW 1.27 (N-m)
ECM-A3H-CG0604PS1 0.4 kW 1.27 (N-m)
ECM-A3H-CG0604QS1 0.4 kW 1.27 (N-m)
ECM-A3H-CG0604RS1 0.4 kW 1.27 (N-m)
ECM-A3H-CG0604SS1 0.4 kW 1.27 (N-m)
ECM-A3H-C20604CS1 0.4 kW 1.27 (N-m)
ECM-A3H-C20604DS1 0.4 kW 1.27 (N-m)
ECM-A3H-C20604PS1 0.4 kW 1.27 (N-m)
ECM-A3H-C20604QS1 0.4 kW 1.27 (N-m)
ECM-A3H-C20604RS1 0.4 kW 1.27 (N-m)
ECM-A3H-C20604SS1 0.4 kW 1.27 (N-m)
ECM-A3H-CA0604CS1 0.4 kW 1.27 (N-m)
ECM-A3H-CA0604DS1 0.4 kW 1.27 (N-m)
ECM-A3H-CA0604PS1 0.4 kW 1.27 (N-m)
ECM-A3H-CA0604QS1 0.4 kW 1.27 (N-m)
ECM-A3H-CA0604RS1 0.4 kW 1.27 (N-m)
ECM-A3H-CA0604SS1 0.4 kW 1.27 (N-m)
ECM-A3H-CY0804C71 0.4 kW 1.27 (N-m)
ECM-A3H-CY0804D71 0.4 kW 1.27 (N-m)
ECM-A3H-CY0804P71 0.4 kW 1.27 (N-m)
ECM-A3H-CY0804Q71 0.4 kW 1.27 (N-m)
ECM-A3H-CY0804R71 0.4 kW 1.27 (N-m)
ECM-A3H-CY0804S71 0.4 kW 1.27 (N-m)
ECM-A3H-C10804C71 0.4 kW 1.27 (N-m)
ECM-A3H-C10804D71 0.4 kW 1.27 (N-m)
ECM-A3H-C10804P71 0.4 kW 1.27 (N-m)
ECM-A3H-C10804Q71 0.4 kW 1.27 (N-m)
ECM-A3H-C10804R71 0.4 kW 1.27 (N-m)
ECM-A3H-C10804S71 0.4 kW 1.27 (N-m)
ECM-A3H-CG0804C71 0.4 kW 1.27 (N-m)
ECM-A3H-CG0804D71 0.4 kW 1.27 (N-m)
ECM-A3H-CG0804P71 0.4 kW 1.27 (N-m)
ECM-A3H-CG0804Q71 0.4 kW 1.27 (N-m)
ECM-A3H-CG0804R71 0.4 kW 1.27 (N-m)
ECM-A3H-CG0804S71 0.4 kW 1.27 (N-m)
ECM-A3H-C20804C71 0.4 kW 1.27 (N-m)
ECM-A3H-C20804D71 0.4 kW 1.27 (N-m)
ECM-A3H-C20804P71 0.4 kW 1.27 (N-m)
ECM-A3H-C20804Q71 0.4 kW 1.27 (N-m)
ECM-A3H-C20804R71 0.4 kW 1.27 (N-m)
ECM-A3H-C20804S71 0.4 kW 1.27 (N-m)
ECM-A3H-CA0804C71 0.4 kW 1.27 (N-m)
ECM-A3H-CA0804D71 0.4 kW 1.27 (N-m)
ECM-A3H-CA0804P71 0.4 kW 1.27 (N-m)
ECM-A3H-CA0804Q71 0.4 kW 1.27 (N-m)
ECM-A3H-CA0804R71 0.4 kW 1.27 (N-m)
ECM-A3H-CA0804S71 0.4 kW 1.27 (N-m)
ECM-A3L-CY0604CS1 0.4 kW 1.27 (N-m)
ECM-A3L-CY0604DS1 0.4 kW 1.27 (N-m)
ECM-A3L-CY0604PS1 0.4 kW 1.27 (N-m)
ECM-A3L-CY0604RS1 0.4 kW 1.27 (N-m)
ECM-A3L-CY0604SS1 0.4 kW 1.27 (N-m)
ECM-A3L-CY0604QS1 0.4 kW 1.27 (N-m)
ECM-A3L-C10604CS1 0.4 kW 1.27 (N-m)
ECM-A3L-C10604DS1 0.4 kW 1.27 (N-m)
ECM-A3L-C10604PS1 0.4 kW 1.27 (N-m)
ECM-A3L-C10604RS1 0.4 kW 1.27 (N-m)
ECM-A3L-C10604SS1 0.4 kW 1.27 (N-m)
ECM-A3L-C10604QS1 0.4 kW 1.27 (N-m)
ECM-A3L-CG0604CS1 0.4 kW 1.27 (N-m)
ECM-A3L-CG0604DS1 0.4 kW 1.27 (N-m)
ECM-A3L-CG0604PS1 0.4 kW 1.27 (N-m)
ECM-A3L-CG0604RS1 0.4 kW 1.27 (N-m)
ECM-A3L-CG0604SS1 0.4 kW 1.27 (N-m)
ECM-A3L-CG0604QS1 0.4 kW 1.27 (N-m)
ECM-A3L-C20604CS1 0.4 kW 1.27 (N-m)
ECM-A3L-C20604DS1 0.4 kW 1.27 (N-m)
ECM-A3L-C20604PS1 0.4 kW 1.27 (N-m)
ECM-A3L-C20604RS1 0.4 kW 1.27 (N-m)
ECM-A3L-C20604SS1 0.4 kW 1.27 (N-m)
ECM-A3L-C20604QS1 0.4 kW 1.27 (N-m)
ECM-A3L-CA0604CS1 0.4 kW 1.27 (N-m)
ECM-A3L-CA0604DS1 0.4 kW 1.27 (N-m)
ECM-A3L-CA0604PS1 0.4 kW 1.27 (N-m)
ECM-A3L-CA0604RS1 0.4 kW 1.27 (N-m)
ECM-A3L-CA0604SS1 0.4 kW 1.27 (N-m)
ECM-A3L-CA0604QS1 0.4 kW 1.27 (N-m)
ECM-A3L-CY0804C71 0.4 kW 1.27 (N-m)
ECM-A3L-CY0804D71 0.4 kW 1.27 (N-m)
ECM-A3L-CY0804P71 0.4 kW 1.27 (N-m)
ECM-A3L-CY0804R71 0.4 kW 1.27 (N-m)
ECM-A3L-CY0804S71 0.4 kW 1.27 (N-m)
ECM-A3L-CY0804Q71 0.4 kW 1.27 (N-m)
ECM-A3L-C10804C71 0.4 kW 1.27 (N-m)
ECM-A3L-C10804D71 0.4 kW 1.27 (N-m)
ECM-A3L-C10804P71 0.4 kW 1.27 (N-m)
ECM-A3L-C10804R71 0.4 kW 1.27 (N-m)
ECM-A3L-C10804S71 0.4 kW 1.27 (N-m)
ECM-A3L-C10804Q71 0.4 kW 1.27 (N-m)
ECM-A3L-CG0804C71 0.4 kW 1.27 (N-m)
ECM-A3L-CG0804D71 0.4 kW 1.27 (N-m)
ECM-A3L-CG0804P71 0.4 kW 1.27 (N-m)
ECM-A3L-CG0804R71 0.4 kW 1.27 (N-m)
ECM-A3L-CG0804S71 0.4 kW 1.27 (N-m)
ECM-A3L-CG0804Q71 0.4 kW 1.27 (N-m)
ECM-A3L-C20804C71 0.4 kW 1.27 (N-m)
ECM-A3L-C20804D71 0.4 kW 1.27 (N-m)
ECM-A3L-C20804P71 0.4 kW 1.27 (N-m)
ECM-A3L-C20804R71 0.4 kW 1.27 (N-m)
ECM-A3L-C20804S71 0.4 kW 1.27 (N-m)
ECM-A3L-C20804Q71 0.4 kW 1.27 (N-m)
ECM-A3L-CA0804C71 0.4 kW 1.27 (N-m)
ECM-A3L-CA0804D71 0.4 kW 1.27 (N-m)
ECM-A3L-CA0804P71 0.4 kW 1.27 (N-m)
ECM-A3L-CA0804R71 0.4 kW 1.27 (N-m)
ECM-A3L-CA0804S71 0.4 kW 1.27 (N-m)
ECM-A3L-CA0804Q71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604RS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604CS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604DS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604PS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604QS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604SS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0604SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604RS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604CS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604DS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604PS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604QS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604SS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20604SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604RS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604CS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604DS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604PS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604QS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604SS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0604SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604RS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604CS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604DS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604PS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604QS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604SS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0604SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804RS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804CS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804DS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804PS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804QS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804SS1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804R71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804RK1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804S71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804SK1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804C71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804CK1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804D71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804DK1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804P71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804PK1 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804Q71 0.4 kW 1.27 (N-m)
ECM-B3M-CA0804QK1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804RS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804CS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804DS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804PS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804QS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804SS1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804R71 0.4 kW 1.27 (N-m)
ECM-B3M-C20804RK1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804S71 0.4 kW 1.27 (N-m)
ECM-B3M-C20804SK1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804C71 0.4 kW 1.27 (N-m)
ECM-B3M-C20804CK1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804D71 0.4 kW 1.27 (N-m)
ECM-B3M-C20804DK1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804P71 0.4 kW 1.27 (N-m)
ECM-B3M-C20804PK1 0.4 kW 1.27 (N-m)
ECM-B3M-C20804Q71 0.4 kW 1.27 (N-m)
ECM-B3M-C20804QK1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804RS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804CS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804DS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804PS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804QS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804SS1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804R71 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804RK1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804S71 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804SK1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804C71 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804CK1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804D71 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804DK1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804P71 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804PK1 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804Q71 0.4 kW 1.27 (N-m)
ECM-B3M-CP0804QK1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804RS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804RJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804CS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804DS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804PS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804QS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804CJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804DJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804PJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804QJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804SS1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804SJ1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804R71 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804RK1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804S71 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804SK1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804C71 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804CK1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804D71 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804DK1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804P71 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804PK1 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804Q71 0.4 kW 1.27 (N-m)
ECM-B3M-CM0804QK1 0.4 kW 1.27 (N-m)
Model Number Rated Output Power Rated Torque
