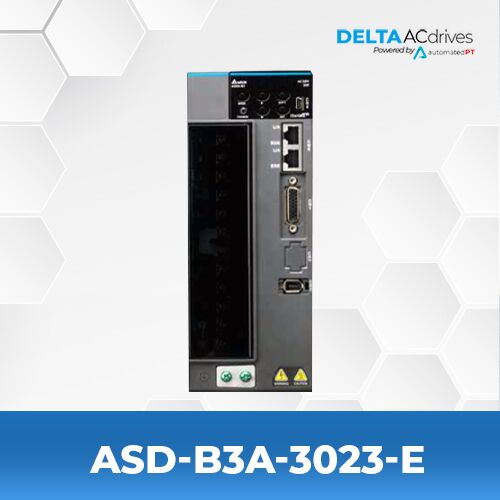

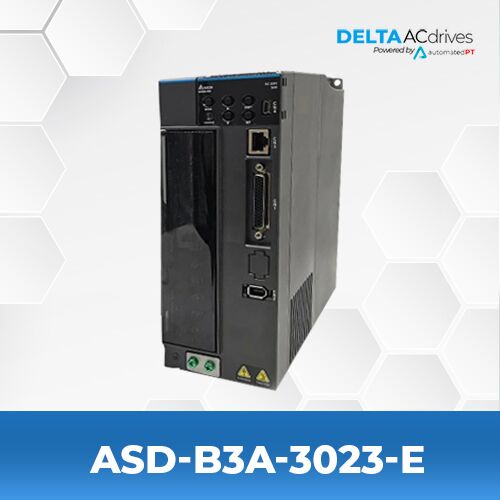

Delta ASD-B3A-3023-E Servo Drive
$1,234.71
- Series: B3 Servo Drive
- Phase3 Phase (PH)
- 3 Kilowatts
- 19.4 Arms Output Current
- 220 VAC
SPECIFICATIONS
| Model Name | ASD-B3A-3023-E |
| Series | B3 Servo Drive |
| Phase | 3 PH |
| Voltage | 220 VAC |
| Rated Output Power | 3 Kilowatts |
| Continuous Output Current | 19.4 Arms |
| Instant Max Output Current | 58.9 Arms |
| Model Type | PT Mode Pulse Input, PR Mode, Analog Voltage Control, EtherCAT, STO |
CATALOG & MANUALS
 |
||
| Catalog | Delta ASDA B3 Servo Drive Catalog | |
| Users Manual | Delta ASDA B3 Servo Drive Catalog Users Manual |
SERIES DESCRIPTION
ASDA-B3 series is Delta’s newest generation servo system drive. This improves upon the ASDA-B2 series with faster response and settling time. The B3 drives are compatible with both B3, B2, A3, and A2 motors.
Features Include
- 3.1 kHz Bandwith
- 24-bit encoder
- 6000 r/min motor support
- Closed loop status control
- Software supporting vibration suppression, auto-tuning, graphical configuration
- STO (Safe Torque Off)
- DC Bus Sharing
- Smaller drive and motors compared to B2
DELTA ASD-B3A-3023-E SERVO DRIVE COMPATIBLE MOTORS
| Model Number | Rated Output Power | Rated Torque |
|---|---|---|
| ECM-B3M-FA1830RS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830RJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830CS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830DS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830PS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830QS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830CJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830DJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830PJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830QJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830SS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FA1830SJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830RS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830RJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830CS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830DS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830PS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830QS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830CJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830DJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830PJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830QJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830SS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-F21830SJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830RS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830RJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830CS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830DS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830PS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830QS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830CJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830DJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830PJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830QJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830SS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FP1830SJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830RS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830RJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830CS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830DS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830PS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830QS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830CJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830DJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830PJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830QJ1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830SS1 | 3 kW | 19.1 (N-m) |
| ECM-B3M-FM1830SJ1 | 3 kW | 19.1 (N-m) |
| Model Number | Rated Output Power | Rated Torque |
