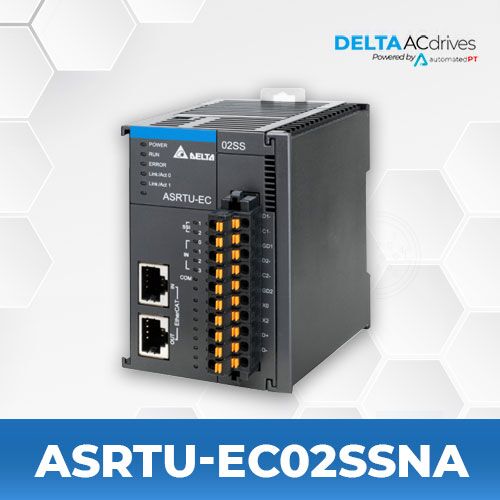

Delta ASRTU-EC02SSNA AS Series PLC Accessories

  • AS Series
  • 4 digital inputs
  • 2 SSI interfaces

PRODUCT SPECIFICATIONS

Model Name ASRTU-EC02SSNA
Compatible Series AS Series
Classification EtherCAT Remote I/O Module
I/O Points 4 digital inputs
Software EtherCAT master configuration software
Communication Port RS-485
Power Consumption 1.8 W
IP Rating IP20

FILES

Catalog Delta AS Series Catalog

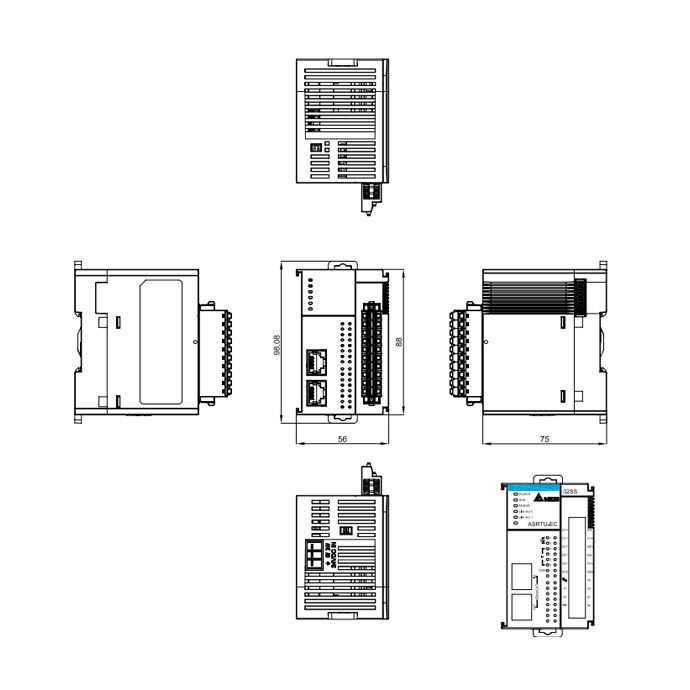

Dimensions Delta ASRTU-EC02SSNA Dimensions
Instruction Sheet Delta ASRTU-EC02SSNA Instruction Sheet
2D CAD Delta ASRTU-EC02SSNA 2D CAD
3D CAD Delta ASRTU-EC02SSNA 3D CAD  |  (View 3D File)
UL Certificate Delta ASRTU-EC02SSNA UL Certificate

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

MODULE DESCRIPTION

  • Compliant with the EtherCAT protocol, supports PDO, SDO and other services in the CoE protocol as well as Hot Connection function.
  • Supports Distributed Clock SYNC, SyncManagers and Free Run.
  • 8 digital input points and 8 digital output points are built in ASRTU-EC16AP
  • 2 channels for high-speed counting with counting modes of single pulse, “pulse+direction” and “phase A+phase B” and maximum input frequency of 200kHz
  • 2 channels for high-speed pulse output with pulse output modes of “pulse+direction”, “Phase A + phase B” and CW/CCW with a maximum of 200 kHz output frequency.

    • (Note: the maximum output frequency is 100 kHz for the “phase A+phase B” output mode)

  • Supports AS series extension modules including digital modules, analog modules, load cell modules and temperature measurement modules.
