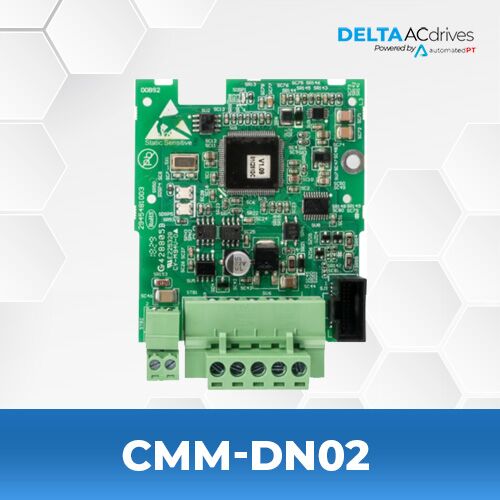

Delta CMM-DN02 Communication Extension Card

$137.00

  • Compatible with MS-300 Series
  • Network protocol: DeviceNet
  • Interface: Terminal block
  • Transmission method: Explicit message/Implicit message
  • Transmission cable: Delta standard

Features
Supports Group 2 only connection method and cyclic I/O data exchange
â–º Provides EDS file to identify DeviceNet equipment information
â–º Supports max. 32 words input and 32 words output of parameter mapping and remote I/O function
â–º Node address and Baud rate can be set in the AC motor drive

Network Interface
Network protocol: DeviceNet
Interface: Terminal block
Transmission speed: 500k /250k/125k /100k /50k bps and extendable baud rate mode of 1M
Number of ports: 1
Transmission method: Explicit message/Implicit message
Transmission cable: Delta standard
Transmission distance: 25m/1Mbps

Manuals and Specifications

Catalog Delta VFD-MS300 Series Catalog
Users Manual Delta VFD-MS300 Users Manual

OPTIONAL CABLES

Out of stock

Delta UC-DN01Z-01A

  • DeviceNet Cable
  • 305 m
  • Delta Standard Fieldbus Cables
  • Wire Guage (AWG) : 2#15, 2#18 SHLD PVC (Thick)

Out of stock

Delta UC-DN01Z-02A

  • DeviceNet Cable
  • 305 m
  • Delta Standard Fieldbus Cables
  • Wire Gauge (AWG) : 2#22, 2#24 SHLD PVC (Thin)
