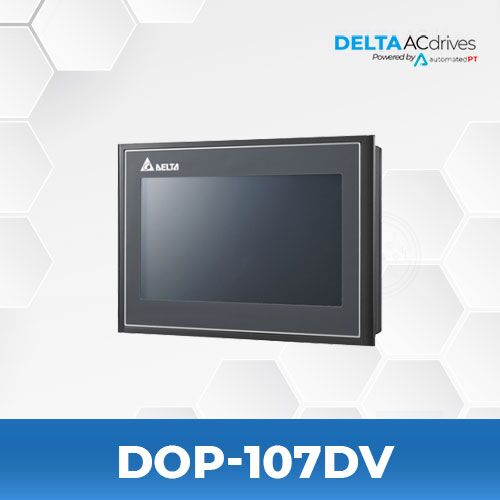

Delta DOP-107DV DOP-100 Series HMI Touchscreen

  • DOP-100 Series
  • 7″ TFT LCD

PRODUCT SPECIFICATIONS

Model Name DOP-107DV
Series DOP-100 Series
Display Size and Type 7″ TFT LCD
Display Colors 16-bit
Resolution (pixels) 800 x 480
Luminance (cd/m2) 400
MCU ARM Cortex-A8 (800 MHz)
Flash ROM (Bytes) 256
RAM (MB) 256
USB 1 USB Slave Ver 2.0 / 1 USB Host Ver 2.0
COM1 RS-232, RS-485 (107DV non-isolated circuit)
COM2 RS-422 / RS-485 (107DV non-isolated circuit)
COM3 N/A
Power Consumption (W) 8.8
IP Level IP65 / NEMA4 / UL Type 4X

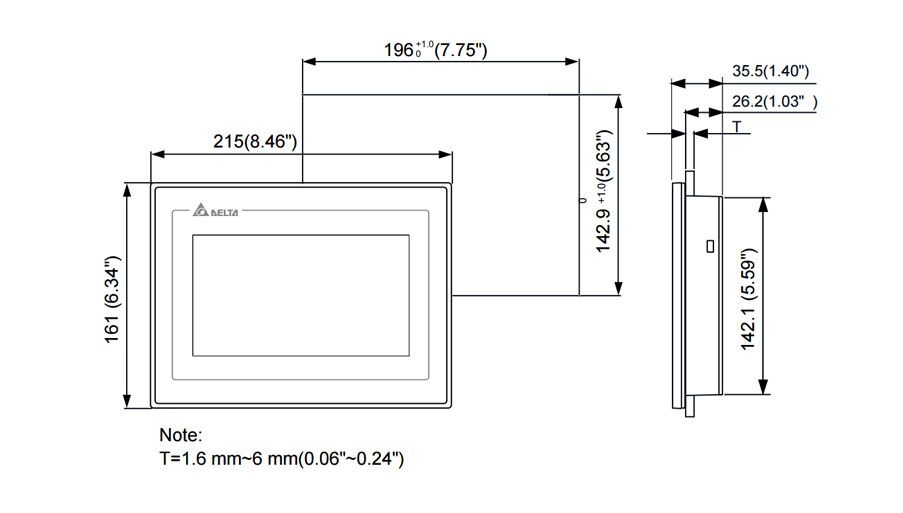

Dimensions 8.46 (in) x 6.33 (in) x 1.39 (in)

SOFTWARE

Register and download the DIA Studio to use DIA Designer to program and configure your drives. Know More

FILES

Catalog Delta DOP-100 Series Catalog
Dimensions Delta DOP-107DV Dimensions
Instruction Sheet Delta DOP-107DV Instruction Sheet
Cable Selection Guide Delta PLC-HMI Cable Selection Guide
2D CAD Delta DOP-107DV 2D CAD
3D CAD Delta DOP-107DV 3D CAD  |  (View 3D File)
UL Certificate Delta DOP-107DV UL Certificate
Software Delta DOP-107DV Software

SERIES DESCRIPTION

Delta’s Human Machine Interface DOP-100 Series includes four categories for different applications: Basic, Standard, Advanced, and Handheld. The Basic, Standard, and Handheld HMI adopt the latest Cortex-A8 (800 MHz), while the 12″ / 15″ Advanced HMI adopts the Dual Core Cortex-A7 1Ghz high-speed processor. The DOP-100 Series employs 16-bit or 24-bit color LCD screens with high brightness and contrast. I

Easy Model Selection
The DOP-100 Series offers diverse models for different applications. Users can easily select a suitable HMI based on size or function

Advanced HMI
The Advanced HMI adopts a wide screen and narrow frame design. It supports Ethernet communication & multilingual inputs. The Multimedia Type DOP-112 / 115 offers multimedia functions to meet different applications.

Camera & Video Play, Multimedia Functions
Analog Camera, IP Camera, VGA Input, Video Play, Event Trigger
